Stackable

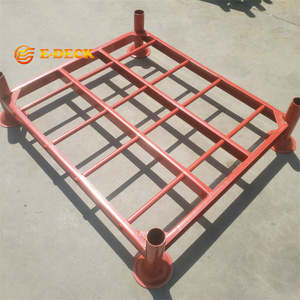

Heavy-duty Steel Metal Logistic Stackable Storage Post Pallet Racks
Modular demountable post design maximizing bulk vertical capacity in flexible distribution centers.
Tier-1 OEM / ODM Warehouse Solutions
Industrial Storage Systems Built for Extreme Duty & High Throughput
Custom structural calculations, automated cold-roll profiling, electrostatic powder coating, and full compliance with CE & ISO 9001:2015 engineering standards.
Adjustable
Adjustable Warehouse Pallet Rack Industrial Shelving Systems
High-tensile beam slots on 50/75mm pitches engineered for selective SKU picking and variable elevations.
Cold Chain
NSF Adjustable Cold Room Storage Racking System Metal Wire Shelf
Antimicrobial open-mesh wire decking tested to -40°C for deep-freeze storage and optimal airflow.
Custom Built
Customized Storage Shelf Racks New Pallet Racking Industrial Rack
Bespoke column cross-sections and footplate configurations tailored for seismic and dynamic loads.
Euro Standard
Jracking Euro Standard Selective Pallet Rack Heavy Duty Industrial
Precision-interlocking structural connections optimized for standardized EUR/EPAL pallet interfaces.
Heavy Duty
Customized Industrial Rack Heavy Duty Pallet Rack System
Reinforced roll-formed box beams and upright braces supporting up to 4,500 kg per level safely.
Multi-Tier
High Quality 7 Layers 250kgs Heavy Duty Factory Metal Rack
High-density multi-shelf longspan framework engineered for manual component sorting and high-SKU bins.
High Density
Steel 5-Layer Drive-In Pallet Rack Warehouse Storage Shelf
LIFO deep-lane configuration eliminating unnecessary service aisles to maximize usable floor volume by 80%.
30,000 m²
Factory Footprint
30,000 t
Monthly Output
Since 2001
25+ Yrs Industry Authority
120+ Countries
Global Supply Footprint
Manufacturing Excellence
Why Global Logistics Leaders Partner with Our OEM/ODM Factory
From metallurgical verification of Q235B/Q355B coils to turnkey shipping logistics, our vertically integrated plant removes third-party markups and quality gaps.
Rigorous Engineering & Certifications
Our infrastructure holds verified CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management, and full RoHS compliance. Every project includes comprehensive structural stress calculations to ensure complete stability under maximum design loads.
Free 2D CAD & 3D BIM Layouts
Within 24 hours of receiving site dimensions, our in-house engineering team calculates forklift turning radiuses, dead-load capacities, and safety flue spaces. We deliver compliant CAD drawings ready for municipal Civil Defense and insurer filing.
Automated 10-Stage Surface Finishing
Industrial racking demands lifetime corrosion resilience. Our automated chemical bath lines utilize multi-stage pickling, phosphating, and electrostatic powder coating baked at 200°C to withstand coastal humidity, desert heat, and sub-zero cold room environments.
Strategic Whitepaper: Future Procurement & Engineering Trends in Pallet Racking
The global warehousing landscape is experiencing a structural pivot. Procurement heads and supply chain vice presidents are moving away from spot-market, one-size-fits-all racking toward integrated, data-driven intra-logistics setups. Escalating industrial land acquisition costs—across North America, the European Union, and GCC growth corridors—mean vertical cubic efficiency has replaced square footage as the primary operational KPI.
Modern procurement trends show high demand for automated radio shuttle channels, Very Narrow Aisle (VNA) systems, and multi-tier picking mezzanines integrated directly into Warehouse Management Systems (WMS). Buyers prioritize mill-traceable cold-rolled steel coils, standardized safety accessories (such as column wrap-around guards and heavy-gauge wire decking), and high-durability electrostatic finishes that eliminate paint chipping during mechanical pallet positioning.
Furthermore, climate resilience has become a critical procurement factor. For installations spanning the Middle East, Southeast Asia, and maritime port zones, standard single-coat paint application is inadequate. Our advanced 10-step surface pretreatment—combining alkaline degreasing, acid pickling, zinc phosphating, and uniform thermoset powder curing—ensures 1,000+ hour salt-spray endurance, providing asset longevity across the most severe environmental conditions.
Specification Matrix
Systematic Configuration Comparison
Compare core performance benchmarks across our primary industrial racking systems to determine your optimal floor utilization.
| Racking Type | Direct Accessibility | Space Efficiency | Stock Handling | Typical Payload per Pallet | Primary Application Sector |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate Access | Medium (~60%) | FIFO / LIFO | 500 – 2,500 kg | FMCG, 3PL Distribution, General Manufacturing |
| Drive-In Racking | Lane-Restricted Access | Very High (~85%) | Strict LIFO | 800 – 2,000 kg | Beverage Bottlers, High-Volume Cold Stores |
| Radio Shuttle System | Automated Deep Lane | Maximum (~90%) | FIFO & LIFO Flexible | 500 – 1,800 kg | Frozen Food Logistics, Seasonal Goods Storage |
| Structural Mezzanines | Multi-Level Manual Access | Doubles Cubic Area | Batch / Piece Picking | 300 – 1,200 kg/m² | E-Commerce Fulfilment, Auto Parts Distribution |
Traceable Fabrication
Certified In-House Production Process
10 rigorous checkpoints executed across our 30,000 m² factory ensure strict dimensional tolerances and reliable weld integrity.
Step 01 - 03
Coil Prep & Punching
Premium Q235B/Q355B coils undergo continuous CNC high-speed punching to maintain pitch accuracy across all upright heights.
Step 04 - 05
Cold-Roll Forming
Multi-station automated roller lines shape stiffened Omega column profiles and interlocking interlocking box beam sections.
Step 06 - 08
Welding & Pretreatment
Robotic CO2 shielded welding joins beam connectors, followed by immersion pickling and phosphating to eliminate residual surface mill scale.
Step 09 - 10
Powder Line & Packing
Electrostatic thermoset powder application baked at 200°C, followed by non-destructive thickness QC and sea-worthy bundled packing.
Raw Steel Coil Metallurgy Testing
Precision CNC Column Slotting
Automated Continuous Roll Forming
Automated Electrostatic Coating Line
Procurement Intelligence
Frequently Asked Questions for Project Directors & Buyers
Direct technical and commercial clarifications to accelerate your vendor assessment and engineering approvals.
What specific structural and site details are required to issue an engineered layout proposal?
To deliver an accurate CAD floor plan, static structural calculations, and quotation within 24 hours, our engineering department requires: (1) Architectural CAD floor drawing indicating column grid centers and clear ceiling height under sprinkler drops; (2) Pallet specifications including overall length, width, loaded height, and maximum unit gross weight; (3) Mast specifications, collapsed height, and minimum turning aisle radius (AST) of your material handling fleet; (4) Floor slab thickness, concrete compressive strength (psi/MPa), and rebar profile.
How do your OEM/ODM manufacturing processes ensure compliance with international racking codes?
Our structural design practices conform to RMI (Rack Manufacturers Institute) standards, EN 15512 European Standards, and AS 4084 guidelines for steel storage racking. We test every production run for steel yield strength, elongation, and weld penetration. Official CE compliance documentation (Certification No. 2435-CPR-8605159) and ISO 9001:2015 tracking records are provided with every factory shipping manifesto.
How are export shipments packed to prevent transit corrosion and installation delays?
Every beam, upright frame, and bracing component is strapped into rigid, heavy-duty wooden bundles wrapped in vapor-barrier plastic and corrugated corner protectors to prevent transit abrasion. Component bundles are labeled according to installation assembly drawings, ensuring local setup teams can unload, inventory, and erect without sorting delays.
Can you supply customized finishes suited for extreme cold-room or coastal salt air environments?
Yes. For sub-zero cold room environments down to -40°C, we apply specialized low-temperature, impact-modified polyester powder formulations that resist micro-fractures under thermal contraction. For open coastal yards or chemical storage facilities, we offer hot-dip galvanization according to ASTM A123/ISO 1461, delivering multi-decade rust protection against saline atmospheric corrosion.
What is your typical production lead time for full-container OEM/ODM shipments?
Standard selective and heavy-duty industrial configurations have an average factory turnaround of 15 to 20 working days for full 40-foot HQ container orders. Fully customized automated shuttle configurations, specialized mezzanine floors, or custom RAL color coatings require 25 to 30 days including pre-shipment quality verification and trial component assembly.
Transform Your Warehouse Cubic Efficiency Today
Submit your facility layout or operational criteria. Our engineering team will supply a complete 2D/3D layout, static calculation data, and factory-direct pricing within 24 business hours.
