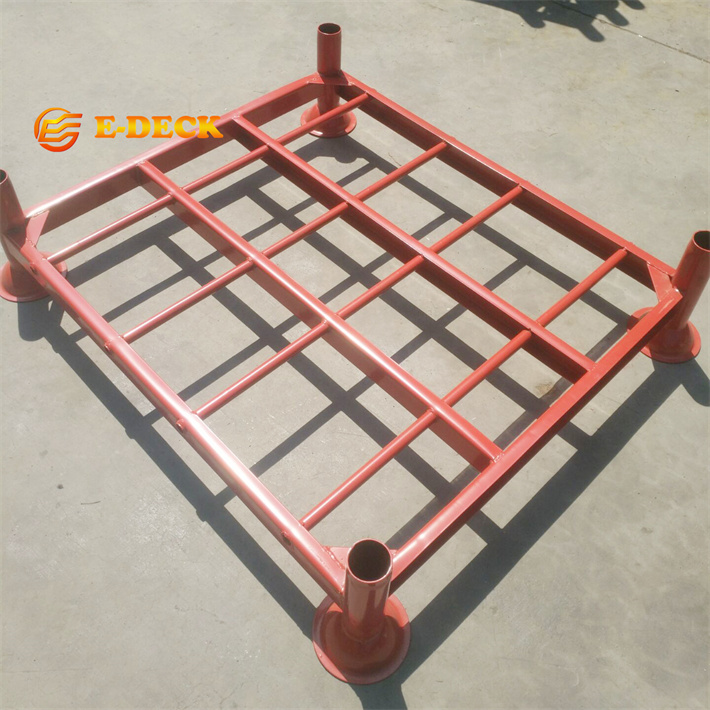

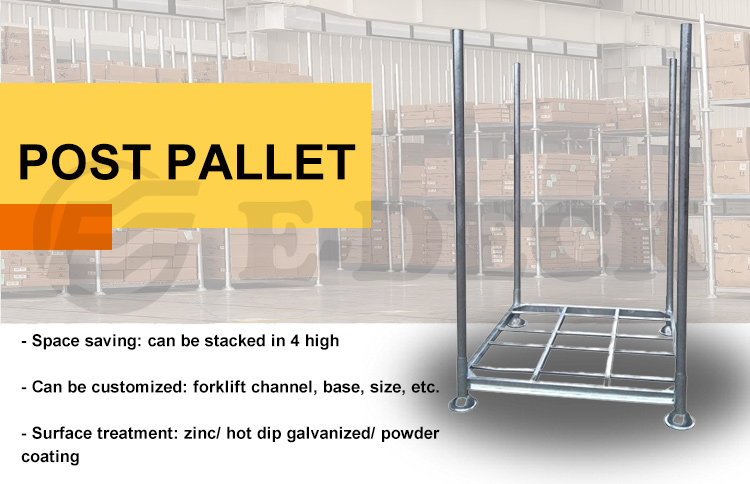

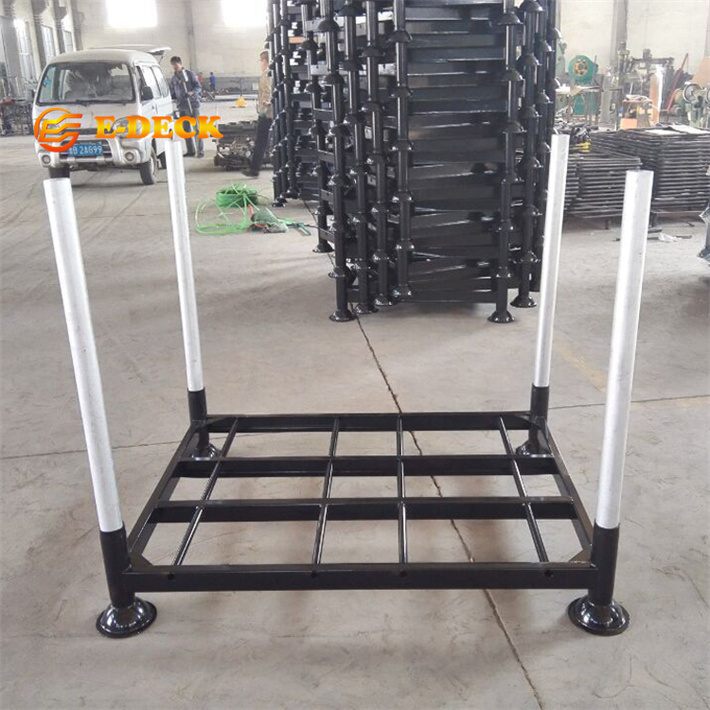

Heavy-duty Steel Metal Logistic Stackable Storage Post Pallet Racks
Product Description
Product Description
Specification of Storage Post Pallet
| Model No. | Exterior Dimension | Loading Capacity | Finish | Quantities | Total Container |
|---|---|---|---|---|---|
| LxWxH (mm) | kg | - | sets | - | |
| EDT1-Base | 1395x1060x310 | 1500 | Zinc | 250 | 1x40'HQ |
| EDT1-Post | 1200x60x2.5 | Zinc | 1000 | - | |
| EDT2-Base | 1875x1060x310 | 2000 | Zinc | 150 | 1x40'HQ |
| EDT2-Post | 1200x60x2.5 | Zinc | 600 | - | |
| EDT4-Base | 1545x1050x310 | 1000 | Powder coating | 247 | 1x40'HQ |
| EDT4-Post | 1510x60x2.5 | Zinc | 988 | - | |
| EDT5-Base | 1200x1000x310 | 1500 | Zinc | 250 | 1x40'HQ |
| EDT5-Post | 2000x60x2.5 | Zinc | 1000 | - | |
| EDT6-Base | 950x950x310 | 1000 | Zinc | 160 | 1x40'HQ |
| EDT6-Post | 1200x60x2.5 | Zinc | 640 | - | |
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, logistic, recycling, etc. | ||||
| Remark | Customized or OEM support | ||||

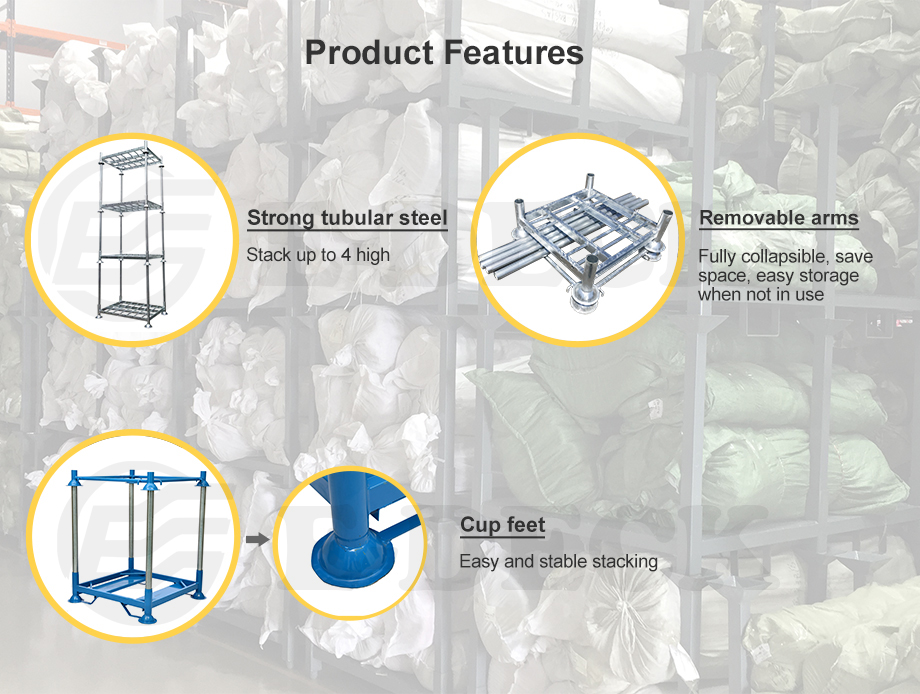

Key Features

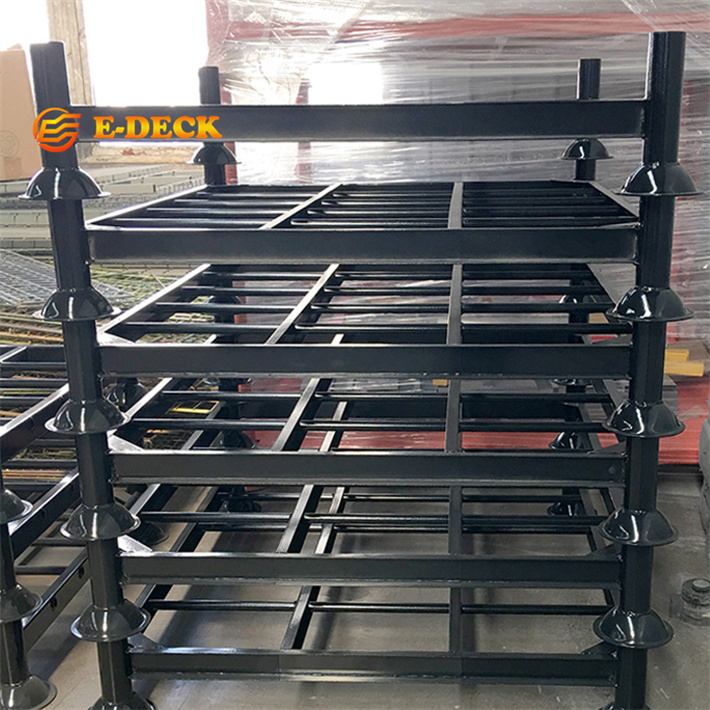

- Strong tubular steel: Stack up to 4 high
- Removable arms: Fully collapsible, save space, easy storage when not in use
- Cup feet: Easy stacking
- Hot-dip galvanized finish: Corrosion resistant, suitable for outdoor use

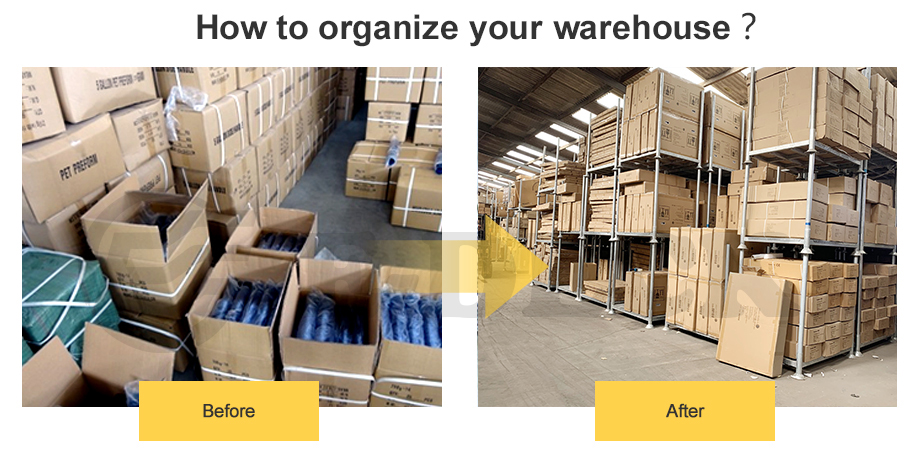

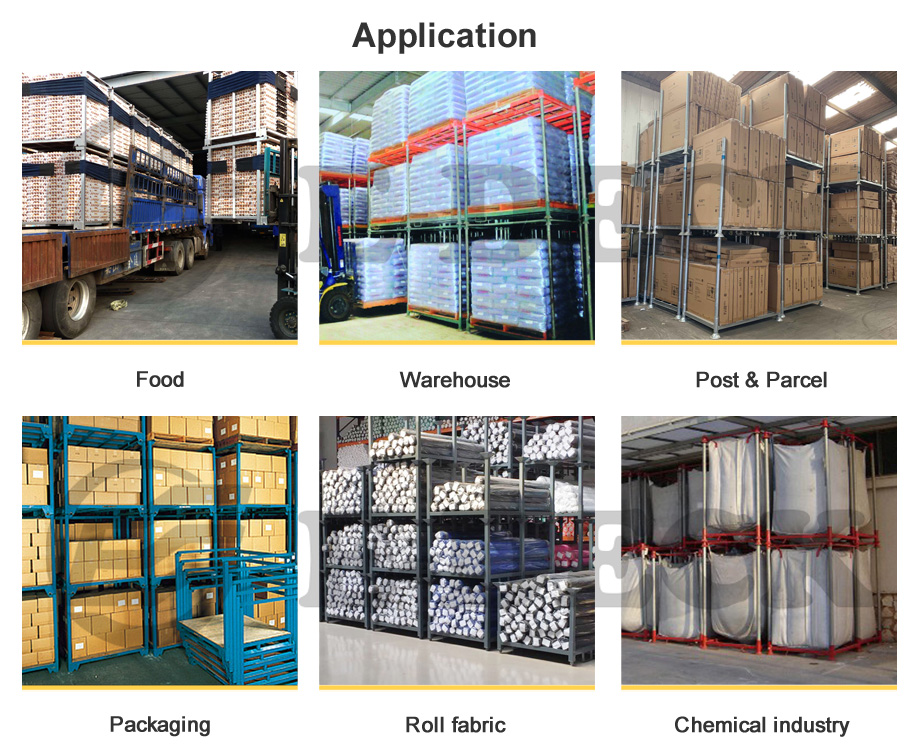

Product Uses
Usage Overview

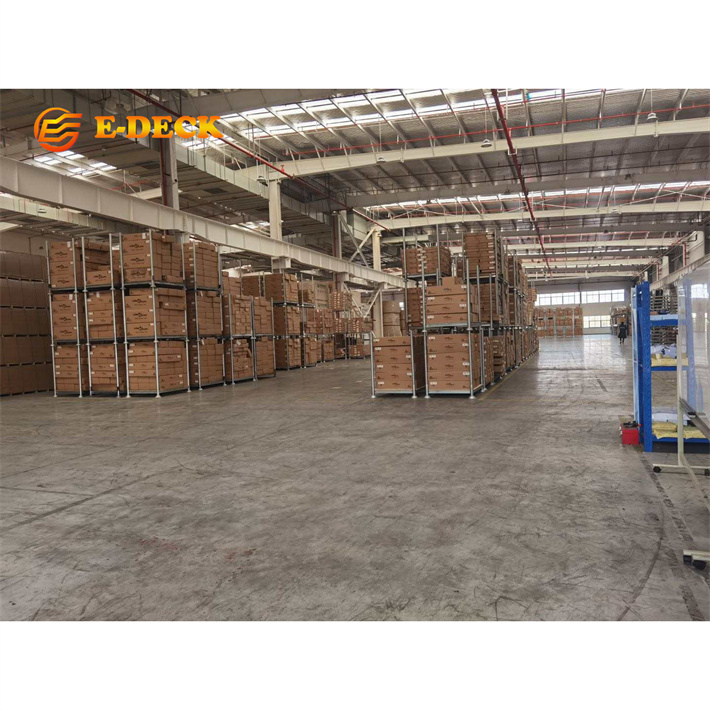

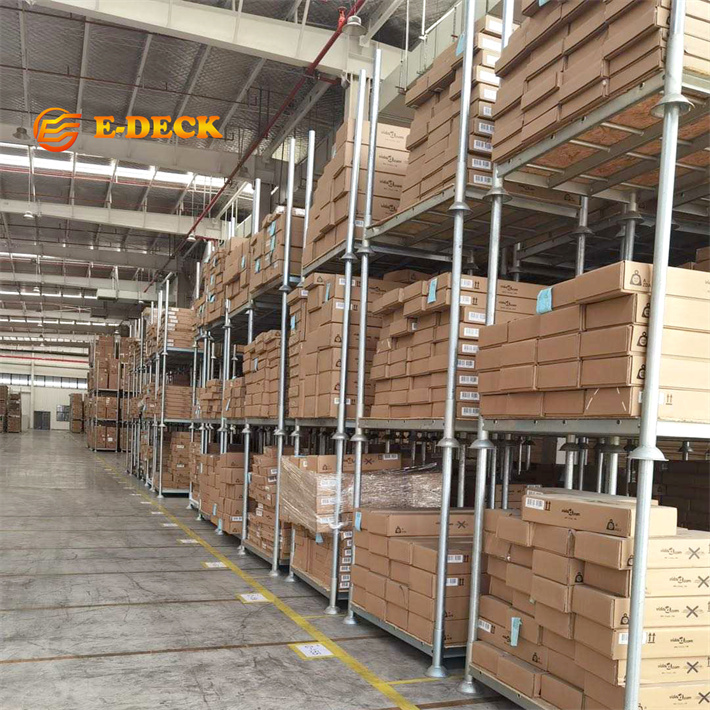

It will enable you to transform areas which are usually free into storage spaces.

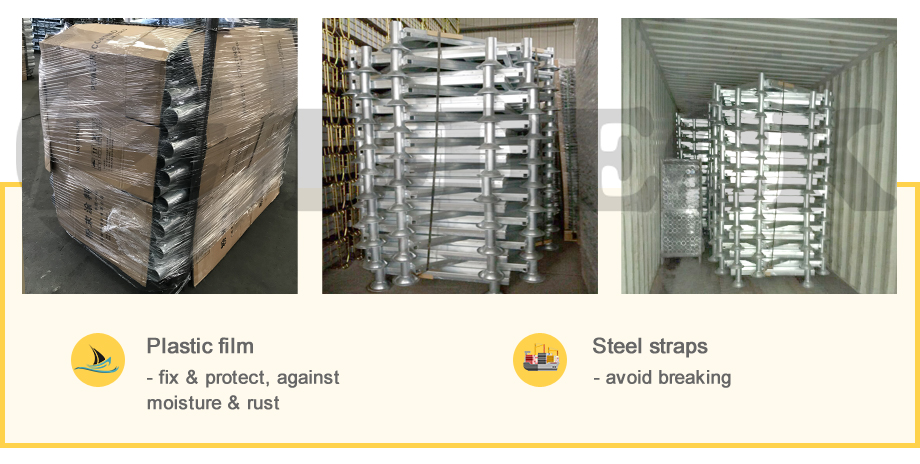

Packaging & Shipping
Packing Details
1. Plastic banding with wooden pallet
2. Stretch film wrapped
Delivery Time
30 days for Storage Post Pallet after receiving 30% deposit
Payment Terms
T/T: 3-5 Working Days to The Account
Western Union: 1-24 Hours to The Account
MoneyGram: 1-24 Hours to The Account
PayPal: Immediately to The Account
Company Information

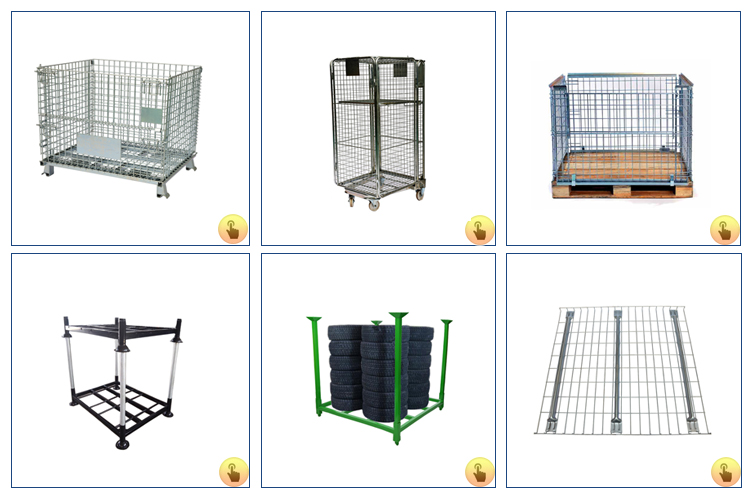

Main Products

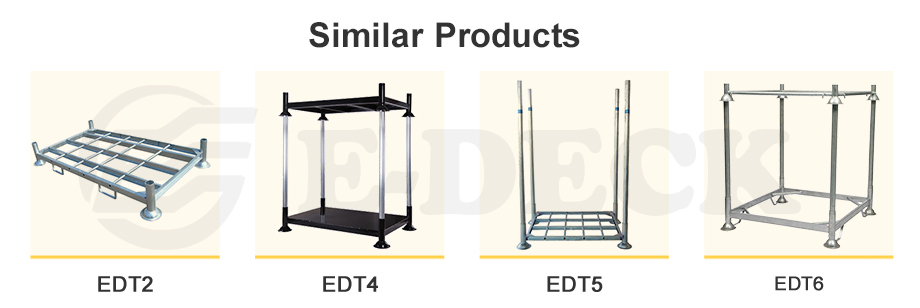

If you have other needs, explore more E-Deck product information:
Our Services
Frequently Asked Questions
Q1
What is the material being used for Storage Post Pallet?
Mild steel Q235.
Q2
What kind of finish do you provide for Storage Post Pallet?
A. Electro galvanized/Zinc plated: The zinc serves as a sacrificial anode (indoor storage).
B. Hot dip galvanized: It forms a coating of corrosion-resistant zinc (indoor/outdoor and cold storage).
C. Powder coating: A type of coating applied as a free-flowing, dry powder (indoor/outdoor storage).
B. Hot dip galvanized: It forms a coating of corrosion-resistant zinc (indoor/outdoor and cold storage).
C. Powder coating: A type of coating applied as a free-flowing, dry powder (indoor/outdoor storage).
Q3
What is the loading capacity?
In general, we have light duty (100~300kg) models, medium duty (400~800kg) models, and heavy duty (1000~1700kg) models available for your choice.
Q4

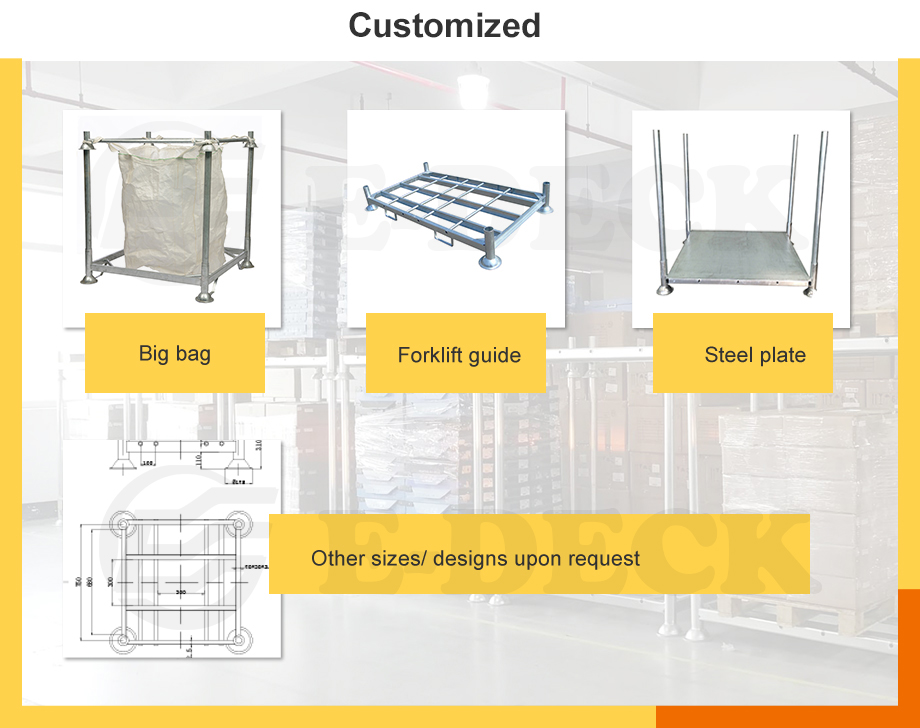

I like your design, but couldn't find the right model from the products list. Is custom size available?
Yes, we do custom products and projects according to your exact requirements.
Q5
What is the minimum quantity I can order and the average lead time?
Minimum order quantity is 1x20'GP (quantity varies depending on size). Average production lead time is 2-3 weeks against formal order and deposit.
Q6
Do I get any guarantee from your company?
3~10 years warranty provided that:
A) Proper handling during operation, correct forklift handling while stacking/unstacking.
B) Overloading is strictly prohibited.
C) Indoor, dry and non-humid operating environment, avoiding contact with corrosive chemicals (for zinc plated and powder coated products; no limitation for hot-dip galvanized).
A) Proper handling during operation, correct forklift handling while stacking/unstacking.
B) Overloading is strictly prohibited.
C) Indoor, dry and non-humid operating environment, avoiding contact with corrosive chemicals (for zinc plated and powder coated products; no limitation for hot-dip galvanized).
