Heavy-Duty Warehouse Shelving & Industrial Racking Units
Factory-certified selective, teardrop, cantilever, and automated shuttle systems engineered for strict global structural standards, extreme GCC thermal profiles, and intensive distribution center workflows.

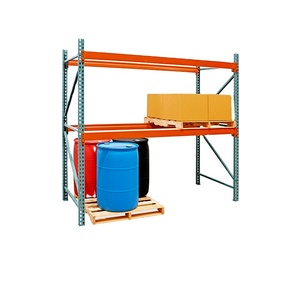

Selective Industrial Warehouse Shelving Teardrop Pallet Rack
Universal 2-inch teardrop connection profile with integrated automatic safety pins. Delivers 100% pallet selectivity and rapid boltless beam reconfiguration.
Ready-to-Trade Heavy Duty Steel Cantilever Storage Racking
Unobstructed frontal design engineered for extrusions, long timber, pipe bundles, and sheet metal. Multi-tier cantilever arms with adjustable pivot pins.
Selective Systems Welding Pallet Cold Room Storage Rack
Low-temperature corrosion-resistant treatment formulated for blast freezers and cold distribution hubs down to -35°C without steel micro-fracturing.
Heavy Duty Pallet Rack 5 Ton Capacity Industrial System
Extra-thickened roll-formed columns paired with box-step beams. Rated for extreme concentrated pallet loads in heavy machinery and petrochemical warehousing.
Certificated Large Heavy Duty Shelving Easy Assemble Unit
Rapid interlock design optimized for manual fulfillment, e-commerce mezzanine sorting bays, and dense industrial tooling depots with quick vertical pitch adjustment.

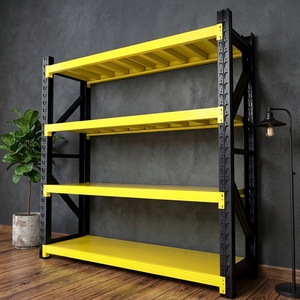

Adjustable Warehouse Storage Rack Industrial Steel Shelving
Compact footprint, high load-bearing steel profile structure suitable for warehouse perimeter walls, automotive maintenance garages, and hardware distribution.
Shuttle Racking High-Bay Automated Pallet Rack System
Ultra-dense multi-deep pallet runner system. Radio-controlled shuttle cart traverses storage channels autonomously, slashing forklift travel distances and labor overhead.
Adjustable Teardrop High-Density Warehouse Pallet Racking
Industry-standard US & international interchangeability. Engineered with high-strength omega upright uprights, boxed step beams, and heavy-gauge seismic floor anchoring.
Direct-From-Manufacturer OEM/ODM Wall Mounted & Structural Racking
Founded in 2001, Guangzhou HEDA Shelves Co., Ltd. has evolved into a premier tier-one manufacturer of industrial warehousing storage frameworks, heavy-duty wall-mounted racking assemblies, automated mezzanine floors, and structural logistics infrastructure. Operating from our dedicated 30,000 square meter intelligent manufacturing facility in Guangzhou, China, our multidisciplinary team of over 300 precision craftsmen, structural calculation specialists, and mechanical automation engineers provides turnkey solutions spanning parametric design, raw coil roll-forming, automated multi-axis punching, robotic welding, surface passivation, and export crating.
Unlike intermediaries or trading consortia, HEDA Shelves directly controls the metallurgy, tolerance bounds, and structural certification of every upright column, cantilever outrigger, and wall anchoring bracket. We have completed more than 10,000 landmark warehouse installations worldwide, solving complex storage dilemmas for international third-party logistics (3PL) conglomerates, mega-fulfillment centers, agricultural supply distributors, automotive components hubs, and military-grade cold chain facilities across Dubai, Riyadh, Jeddah, Dammam, Doha, Kuwait City, and the wider GCC territory.
Civil Defense Approval
Our structural drawings, seismic anchor data, and fire sprinkler clearance documentation strictly conform to local Civil Defense and municipality safety codes across UAE, Saudi Arabia, Qatar, and international jurisdictions.
Free 2D CAD & 3D BIM
We deploy parametric Autodesk Revit and AutoCAD platforms to provide comprehensive spatial blueprints, clearance simulations, forklift turning radials, and finite element load analyses (FEA) at zero upfront cost.
Rigid Chemical Passivation
Every steel profile undergoes immersion pickling, micro-crystalline phosphating, and automatic electrostatic polyester powder curing, delivering unmatched resistance against hot, dusty, saline coastal atmospheres.
Container Nest Packaging
Components are bundle-nested with corner guard protectors and barcoded steel banding matching project assembly schematics, preventing maritime freight abrasion and cutting onsite sorting hours by 40%.
Structural Mechanics, Load Path Vectors & Wall Substrate Calculations
A rigorous technical analysis of cantilever moments, anchor shear-tension interactions, substrate dynamic loads, and floor-to-wall hybrid load transfer mechanisms.
1. The Mechanics of Wall-Anchored Cantilever Racking
Unlike floor-standing selective racking that relies purely on axial compressive column loading into the reinforced slab, wall-mounted and wall-tied racking assemblies introduce compound mechanical stresses. The primary structural challenge lies in resolving the cantilever bending moment ($M = F \times L$), where $F$ represents the total gravitational load of stored materials, and $L$ denotes the horizontal distance from the vertical wall datum to the load’s center of gravity.
In a true wall-hung cantilever shelving system, this moment produces an extreme rotational pull-out tension on the upper wall anchoring brackets, balanced by an equal compressive force acting inward at the bottom contact nodes. Therefore, calculating anchor suitability demands strict adherence to ACI 318 (Building Code Requirements for Structural Concrete) Appendix D or European standard EN 1992-4 (Design of Fasteners for Use in Concrete), accounting for concrete breakout cone geometry, anchor pull-out capacity, and concrete pryout shear failure.
| Structural Substrate Category | Recommended Fastening Technology | Ultimate Shear Capacity / Node | Ultimate Pull-Out Tension / Node | Seismic Tie-In Compliance |
|---|---|---|---|---|
| C25/30 Reinforced Concrete Wall | Chemical Epoxy Injection Anchors (M16 Grade 8.8) | 42.5 kN | 38.0 kN | Fully Compliant (Zone 4) |
| Precast Tilt-Up Panels | Heavy-Duty Concrete Wedge Expansion Bolts (M12) | 28.0 kN | 24.5 kN | Fully Compliant |
| Structural Steel Building Columns (H-Beams) | High-Strength Through-Bolts with Backer Plate Clamp | 65.0 kN | 58.0 kN | Industrial Benchmark |
| Hollow Masonry / Concrete Blockwork | Perforated Sleeves with Chemical Resin Injection | 9.5 kN | 6.8 kN | Requires Back-Tie Bracing |
| Light Gauge Cold-Formed Steel Studs | Self-Tapping Heavy Structural Fasteners + Backer Plate | 4.2 kN | 3.1 kN | Light Duty Shelving Only |
2. Hybrid Floor-to-Wall Stabilization Architectures
To achieve the exceptional load densities required by modern industrial applications without exceeding concrete wall flexural limits, HEDA Shelves engineers utilize a Hybrid Floor-to-Wall Architecture. Vertical steel columns (Omega profile, Q235B/Q355B high-tensile steel) bear 100% of the deadweight gravity vector straight downward into the building foundation slab via heavy ductile footplates.
Simultaneously, rigid tubular steel wall-ties anchor the rear of the upright frames directly into the warehouse perimeter columns or load-bearing retaining panels. This eliminates frame sway, prevents high-bay overturning moments under seismic acceleration (ASCE 7-22 / IBC 2024 compliance), and frees up floor aisle clearances by removing clumsy diagonal floor outriggers. This clearance provides an unobstructed path for autonomous mobile robots (AMRs) and automated floor sweepers.
Finite Element Analysis (FEA)
Every custom OEM profile is digitally simulated under concentrated point loads, dynamic impact simulations, and torsional bending stresses prior to tool tooling and mass die-forming.
Seismic Dampening Tie-Backs
Articulated wall brackets engineered with slotted bolt apertures accommodate differential thermal expansion and micro-seismic building oscillations without shearing anchor studs.
Continuous Upright Perforation
CNC precision punch matrices guarantee exact 50mm or 76.2mm (3-inch) pitch tolerances, enabling seamless shelf deck re-spacing as product SKU volumes and packaging heights evolve.
Our 10-Step In-House Manufacturing & Quality Control Protocol
Every single structural bracket, baseplate, column section, and beam is fabricated within our 30,000 m² facility under strict ISO 9001:2015 tracking.
Steel Coil Testing
Spectrometric and tensile yield verification of prime Q235B/Q355B hot-rolled steel coils.
CNC Slitting
High-speed longitudinal slitting into exact profile widths with continuous laser edge de-burring.
Multi-Die Punching
Automated continuous mechanical punch presses forming teardrop, slotted, or keyhole connector arrays.
Cold Roll-Forming
18-to-24 pass roll-forming lines shaping high-rigidity omega columns without residual strain.
Precision Cutting
Automated flying-saw cutoff ensuring length accuracy within ±0.5mm across 12-meter continuous spans.
Robotic Welding
Multi-axis Panasonic robotic MIG weld stations uniting beam end connectors and heavy base plates.
Chemical Pretreatment
Multi-stage immersion cleaning: degreasing, acid pickling rust-removal, rinse, and zinc-iron phosphating.
Electrostatic Coating
Automated Gema powder spray booths applying 60–90 micron TGIC polyester resin finish.
High-Temp Curing
Tunnel curing at 200°C for 25 minutes, creating an impact-resistant polymer barrier.
QC & Nest Packaging
Ultrasonic thickness gauge check, adhesion cross-hatch testing, and crate nesting for export.
International Compliance & Factory Credentials
Our manufacturing protocols are audited by international notified testing bodies. We supply complete inspection documentation, raw material mill certificates, and compliance declarations for tender submissions.
Future Procurement & Technological Trends in Industrial Racking
Key macro shifts shaping global B2B procurement decisions, robotic warehouse retrofits, and metallurgical manufacturing over the next decade.
1. AMR-Clearance Wall Shelving
Next-generation micro-fulfillment hubs are replacing floor-mounted front uprights with heavy wall-tied cantilever brackets. This clears 100% of the ground space for autonomous mobile robot (AMR) navigation and continuous floor disinfection.
2. Scope 3 Green Steel Sourcing
Global logistics operators increasingly demand audited environmental product declarations (EPDs). Procurement is shifting toward Electric Arc Furnace (EAF) low-embodied-carbon steel coils and VOC-free, low-bake organic powder coatings.
3. Digital Twin & Smart Strain Sensors
Enterprise racking deployments are incorporating IoT strain-gauge washers and RFID sensors into the primary wall-anchor tie points. This provides real-time telemetry on mechanical beam deflection, floor settlement, and unauthorized overload conditions.
4. Factory-Direct Disintermediation
B2B buyers are bypassing domestic brand-name distributors to contract directly with tier-one OEM/ODM manufacturers like HEDA Shelves. Direct sourcing cuts procurement budgets by 25–40% and reduces custom BIM engineering revision cycles to under 48 hours.
Frequently Asked Questions for B2B Sourcing Directors & Consultants
Exhaustive technical answers covering anchorage structural calculations, fire safety codes, custom perforation tooling, and export logistics.
What structural data is required before engineering wall-mounted or wall-tied racking systems? +
How do your racking designs comply with Civil Defense, NFPA 13, and municipal fire regulations? +
Can HEDA Shelves provide OEM custom punch pitches to match our existing racking inventory? +
What surface protection options are recommended for high-humidity coastal and cold-storage operations? +
What are the lead times from CAD approval to port arrival, and what are the MOQ parameters? +
Do you offer on-site installation guidance or turnkey commissioning in the Middle East and globally? +
Optimize Your Storage Cube with Factory-Direct Engineering
Send your warehouse architectural DWG/PDF drawings and SKU parameters to our engineering team. We will deliver a free comprehensive 2D CAD spatial layout, 3D digital model, structural anchor calculation sheet, and transparent container-direct pricing within 24 hours.
Direct Factory Consultation • CE & ISO 9001 Certified • Full OEM/ODM Customization
