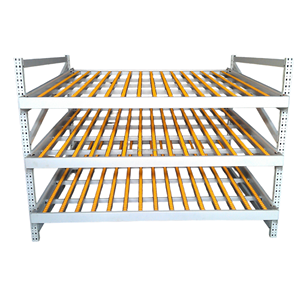

Collapsible Logistics Mobile Gravity Pallet Roller Rack
Heavy-Duty
Industrial Heavy-Duty Pallet Racking Adjustable Beam System
Fast Setup

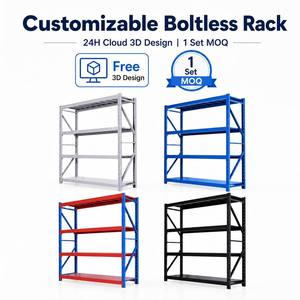

Mracking Light-Duty Selective Shelf Boltless Metal System
Stackable

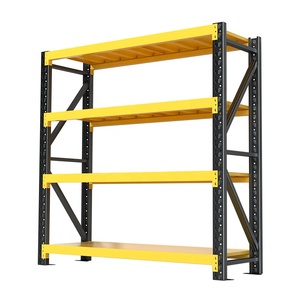

Light-Duty Modular Stacking Shelving for Multi-Tier Sorting
Collapsible Post
Custom Stackable Folding Steel Pallet Racks (Cold Storage)
Multi-Layer

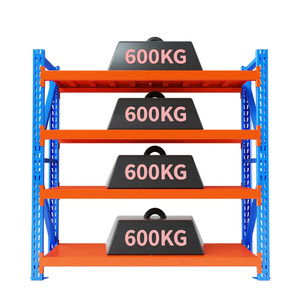

500kg–1500kg/Layer Adjustable High-Bay Steel Pallet Racking
Custom Selective
Custom Industrial Selective Steel Shelf Storage Solution
Safety Barrier

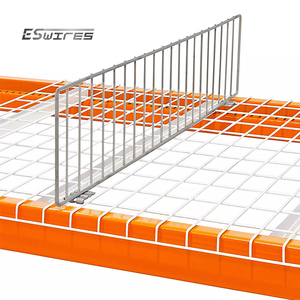

Anti-Fall Welded Steel Wire Pallet Rack Dividers & Retainers
Engineering Forensic: Deconstructing Warehouse Racking Falling Mechanisms
When industrial racking collapses occur, industry headlines describe a single "falling warehouse rack." However, structural forensic engineers classify these disasters as Progressive Collapse Catastrophes. Unlike typical static building frames, a warehouse racking structure carries live loads exceeding its self-weight by up to 2,000%. A single frame failure transfers immediate secondary dynamic loads to adjacent bays, producing an uncontrollable domino effect across the logistics grid.
HEDA Shelves has engineered its OEM/ODM structural profiles to systematically combat the four primary root causes of racking falls:
- Euler Buckling Under Column Torsion: Substandard uprights roll-formed from recycled, inconsistent cold-rolled coils experience critical section distortion under eccentric loading. By implementing high-tensile certified steel (Q235B to Q355B) and proprietary multi-bend omega (Ω) cross-sections with continuous cold-rolling, our vertical upright columns resist both torsional twisting and Euler axial buckling under static and dynamic peak cycles.
- Beam End-Connector Dislodgement (Forklift Uplift): Over 40% of shelf collapses initiate when a forklift mast inadvertently catches a horizontal load beam while elevating. Generic locking clips shear off, detaching the beam and overloading lower tiers. HEDA incorporates CNC-punched integral 4-to-5 claw heavy-duty beam connectors secured with heat-treated safety spring-lock pins that endure high vertical uplift forces without uncoupling.
- Cumulative Micro-Impact Fatigue: Warehouse reach trucks and counterbalanced forklifts continuously impact column baseplates at aisle intersections. Without structural energy absorption, column footplates shear their mechanical anchors. HEDA supplies reinforced heavy-gauge seismic baseplates with ductile anchor bolt configurations alongside floor-anchored steel column bullnose protectors.
- Deficient Longitudinal/Transverse Bracing Ratios: Miscalculated diagonal and horizontal truss spacing causes frame sway. All HEDA customized warehouse racking installations adhere strictly to FEM 10.2.02 (European Racking Code) and RMI/ANSI MH16.1 design parameters, ensuring secondary brace distribution resists dynamic swaying triggered by seismic activity or high-speed AGV vibration.
Why Global Supply Chains Trust HEDA Shelves to Prevent Racking Failures
Guangzhou Heda Shelves Co., Ltd. operates a comprehensive 30,000-square-meter manufacturing powerhouse in Guangzhou, controlling every metallurgical, cold-forming, and welding phase in-house to ensure absolute structural dependability.
Automated 10-Step Production Control
From prime hot-rolled strip steel inspection, CNC continuous line punching, and cold bending to automated double-arc CO2 shielding welding, we eliminate human assembly flaws. Every profile passes in-house non-destructive ultrasonic weld verification.
Harsh Environment Surface Chemistry
Structural failure often starts with hidden corrosion under paint layers. Our 8-stage pickling and phosphating wash removes all surface oxidation, followed by automated electrostatic Swiss Gema powder coating cured at 200°C for exceptional bond durability.
Free PE/CAD Layout & Dynamic FEA Simulation
Before steel is cut, our structural engineering team generates full 2D CAD layouts and 3D architectural renderings. Finite Element Analysis (FEA) simulates peak capacity loading, slab deflection limits, and forklift turning radius clearances to verify safety margins.
Comparative Safety & Performance Engineering Matrix
Procuring warehouse racking based solely on steel price per ton introduces critical structural risks. The table below illustrates the metallurgical and structural differences between commercial discount racking and HEDA Shelves certified anti-collapse OEM/ODM manufacturing standards:
| Evaluation Parameter | Commercial Commodity Racking | HEDA Shelves Engineered OEM/ODM Standards | Anti-Fall Failure Prevention Benefit |
|---|---|---|---|
| Steel Grade & Source | Uncertified secondary steel / variable carbon yield | Prime Baosteel Q235B / Q355B with mill test certificates | Prevents sudden brittle snap fractures under peak dynamic pallet placement. |
| Upright Cold Roll-Forming | Single-pass roller with 6 to 8 bending stages | Multi-pass continuous roll-forming with 16 to 22 roller stages | Eliminates internal micro-cracks along profile bends, multiplying vertical torsion resistance. |
| Beam Hook Connections | 3-tooth mild stamped hooks with friction pins | Heavy ductile 4 or 5-claw connectors with snap-lock safety pins | Withstands inadvertent upward forklift impact, preventing beam dislodgement. |
| Pre-Treatment Cleaning | Manual wiping / partial degreasing | Continuous multi-tank chemical pickling and iron phosphating | Prevents sub-surface oxidation that leads to hidden weld seam failure and frame shear. |
| Deflection Safety Ratio | 1/150 or 1/180 beam length deflection | Strict 1/200 standard (EN 15512 / RMI specification) | Prevents beam permanent sag and subsequent pallet slide off during seismic tremors. |
Future Sourcing Trends: Next-Generation Anti-Collapse Warehouse Technologies
Industrial logistics infrastructure is undergoing rapid transformation driven by robotics and automation. Procurement managers and supply chain directors must evaluate how modern storage equipment mitigates structural risks in fast-evolving warehouse ecosystems:
- Integration of High-Density Radio Shuttle Systems: Traditional drive-in racking involves frequent forklift entries directly inside the rack structure, resulting in inevitable column scrapes and upright gouging. The procurement migration toward Semi-Automated Radio Shuttle and 4-Way Shuttle Racking keeps material-handling equipment safely outside the rack bays, drastically decreasing collision-induced progressive collapse incidents.
- Structural IoT Load and Deflection Telemetry: High-bay logistics hubs are beginning to integrate wireless strain-gauge sensors along primary load beams and baseplate joints. These telemetry monitors detect micro-shifts, beam overloading, and floor subsidence in real time, triggering alerts before structural deformation reaches irreversible thresholds.
- High-Ductility Cold-Formed Steels for Automated AS/RS: With automated warehouses exceeding 30 to 40 meters in clear height, manual inspection becomes challenging. OEM/ODM buyers are shifting to micro-alloyed steels with enhanced yield properties that deliver superior energy dissipation without adding unnecessary weight to the building foundation.
- Secondary Containment & Heavy Wire Mesh Backstops: Global health and safety regulations increasingly mandate rear fall protection along single-entry picking aisles and thoroughfares. Standardizing on welded wire rack dividers and rear mesh barriers prevents individual carton dislodgements that can destabilize high-stacked inventory.
Frequently Asked Questions: Racking Safety & Factory Procurement
Answers to key technical questions raised by warehouse developers, 3PL executives, and facility compliance engineers.
What are the primary indicators that an existing warehouse racking system is at risk of falling?
Key warning signs include: (1) Visible column deflection exceeding 3mm along any 1-meter span in the front upright face, or 5mm in the lateral direction; (2) Missing, sheared, or improvised safety locking pins on beam connectors; (3) Loosened or sheared baseplate expansion anchors; (4) Cracks along horizontal or diagonal truss welds; and (5) Permanent sag (deflection) in load beams after pallets are unloaded. Any of these conditions requires immediate bay offloading and a certified engineering assessment.
How does HEDA Shelves ensure OEM/ODM custom racks withstand local seismic activity?
Every custom OEM/ODM racking layout undergoes dynamic finite element calculations based on your project's specific geographical coordinate, seismic acceleration factor, and concrete slab specifications (compressive strength and reinforcement). We engineer thicker baseplate footprints, upsize dynamic sleeve anchor diameters, and incorporate cross-aisle overhead portal ties to maintain rack rigidity during seismic events.
What engineering data is required from our facility team to engineer an anti-collapse layout?
To produce an approved 2D CAD and 3D FEA layout, our engineering team requires: (1) Warehouse architectural drawings detailing clear ceiling height, column grid spacings, floor levelness, expansion joints, and fire exit corridors; (2) Accurate pallet parameters (Length × Width × Height, including top overhang) and maximum Gross Pallet Weight; (3) Forklift fleet specifications, including model, turning radius (Aisle AST), and maximum lift height; and (4) Environmental factors (ambient operating temperature range, seismic zone rating, and local fire protection requirements).
Can OEM/ODM racking accessories be retrofitted onto our existing third-party racks to prevent falling goods?
Yes. HEDA manufactures universal and custom-clamping warehouse safety accessories. These include heavy-gauge welded wire mesh decking, rear anti-collapse fall screens, heavy-gauge steel upright protectors, wrap-around column guards, and customized pallet backstops designed to interface directly with international teardrop, slotted, or diamond-punched upright upright configurations.
How does factory packaging protect heavy steel components from transit damage that could compromise installation integrity?
Structural damage often starts during container loading and maritime transit when uprights and beams rub against steel walls. HEDA applies corrugated edge boards, plastic wrap, and custom timber dunnage. Every bundle is tagged with barcoded assembly numbers matching our CAD erection blueprints, ensuring local erection contractors assemble components correctly according to design specifications.
Audit Your Storage Safety & Receive a Certified Engineering Layout
Do not wait for structural fatigue, forklift collisions, or overloaded frames to cause a disastrous progressive collapse. Connect directly with our senior structural engineering team in Guangzhou to receive a complimentary 2D/3D CAD design layout, comprehensive load capacity analysis, and direct factory pricing.
