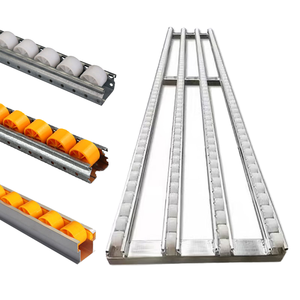

Industrial Aluminium Roller Track Pallet Flow Rack
Collaborative Robotic Arm Carton Stacking Palletizer
Customized Warehouse Gravity Carton & Pallet Flow Rack
Heavy Duty Gravity Roller Carton Flow Storage Rack
Heavy Duty Industrial Interlocking Mezzanine Racking
Heavy Duty Selective Pallet Rack with Wire Mesh Decking
Automatic Pallet Stacker Crane High-Bay AS/RS System
Top 10 Cantilever Warehouse Racking Factories & Exporters
Cantilever racking is uniquely engineered for non-palletized, linear materials such as steel pipes, timber, PVC conduit, aluminum extrusions, and heavy plate steel. Below is an engineering evaluation of the world’s leading structural cantilever manufacturers, cross-referencing factory output, structural tolerances, and export track records.
Guangzhou HEDA Shelves Co., Ltd.
SSI SCHAEFER Group
Mecalux S.A.
Stow Group
Frazier Industrial Company
Dexion (Gonvarri Material Handling)
AR Racking (Grupo Arania)
Interlake Mecalux Inc.
Jungheinrich AG
OHRA Regalanlagen GmbH
| Manufacturer / Exporter | Primary Steel Grade | Structural Profile | Max Arm Capacity | Pre-Treatment Finish | Procurement Channel |
|---|---|---|---|---|---|
| HEDA Shelves | Certified Q235B / Q355B | Cold-Formed & Heavy I-Beam | Up to 3,500 kg | 8-Stage Phosphating + Powder / HDG | Direct Factory Export (OEM/ODM) |
| SSI Schaefer | European S235 / S355 | Hot-Rolled Structural IPE | Up to 4,000 kg | Industrial Enamel / Powder Coated | Systems Integrator Turnkey |
| Mecalux | ASTM A36 / Structural | Welded I-Beam & Roll-Form | Up to 3,000 kg | Automated Electrostatic Epoxy | Direct & Dealer Network |
| Frazier Industrial | ASTM A572 Grade 50 | 100% Hot-Rolled Channel | Up to 4,500 kg | High-Durability Industrial Coat | Direct & US Material Handling Dealers |
| OHRA | S235JRG2 / S355JO | Solid-Wall Hot-Rolled IPE | Up to 4,200 kg | Hot-Dip Galvanized / Wet Paint | Direct Engineering Sales |
Engineering Cantilever Systems: Critical Design Dimensions
Unlike standard selective pallet racks where loads rest between two support beams, cantilever racks experience significant unconstrained overturning moment forces. Choosing the correct specification requires calculating dynamic deflection, arm-to-column connections, and slab anchor shear.
Roll-Formed vs. Structural Steel
Roll-formed light-gauge steel provides an economical, modular solution for hand-stacked lumber, plastic piping, and loads under 800 kg per arm. For high-volume manufacturing, heavy rebar, structural steel tubing, and rough forklift loading cycles, Hot-Rolled Structural I-Beams (Q355B / ASTM A572) are mandatory to avoid catastrophic torsional buckling.
Deflection Ratios & Taper Angles
Engineering standards specify that cantilever arm deflection under full rated load must not exceed L/250 to L/300 of arm length. Quality factories design arms with an intentional 2° to 4° upward incline (taper angle) when empty. Under maximum load, the arm flexes downward to a perfectly horizontal plane, guaranteeing materials cannot slide off the forward tip.
Harsh Climate & Salt Mist Protection
In coastal regions such as the UAE (Jebel Ali), Saudi Arabia (Dammam), and extreme temperature industrial parks, basic paint flakes rapidly. Standard outdoor specifications demand Hot-Dip Galvanizing (ISO 1461) with a zinc coat density exceeding 65 µm, or indoor 8-stage phosphating followed by thermosetting polyester powder coatings.
Future Procurement Trends in Industrial Cantilever Systems
Supply chain directors and warehouse engineers must factor in seismic compliance, automation capabilities, and material origin transparency when commissioning storage systems over the next decade.
Automated Cantilever AS/RS
Traditional forklift-serviced cantilever aisles require 4 to 6-meter clearances to maneuver 12-meter pipe bundles. The industry is rapidly pivoting toward Automated Cantilever Stacker Cranes that operate in narrow 2-meter corridors, lifting extrusions directly to heights up to 25 meters, tripling cubic space utilization.
Digital Twin & FEA Pre-Engineering
Procurement teams now require verifiable Finite Element Analysis (FEA) simulating exact seismic harmonics and eccentric live loading before steel cutting commences. Digital twins verify whether baseplates require chemical anchor studs or through-slab tension rods to satisfy stringent municipal fire and civil safety regulations.
Factory Direct FOB/CIF Disintermediation
Buyers are bypassing regional trading agents to contract directly with tier-1 Asian manufacturing powerhouses like HEDA Shelves. Direct factory engagement secures mill test certificates (MTC), reduces landed procurement costs by 25–40%, and provides direct CAD/BIM collaboration with factory chief structural engineers.
Engineered Structural Integrity: The HEDA Manufacturing Advantage
Guangzhou HEDA Shelves Co., Ltd. operates 30,000 square meters of precision manufacturing in Guangdong, backed by 300+ structural and manufacturing specialists. Supplying direct containerized exports to logistics hubs in Dubai (Jebel Ali), Saudi Arabia (Dammam, Jeddah), Qatar (Hamad Port), and worldwide, HEDA delivers industrial certainty through complete in-house process ownership.
Industrial Cantilever Procurement & Engineering Questions
Essential answers covering structural load distribution, Civil Defense fire compliance, floor anchor engineering, and containerized ocean logistics.
How do you calculate required cantilever arm capacity and upright tower pitch?
Cantilever arm capacity is calculated assuming a Uniformly Distributed Load (UDL) across the full unsupported length of the arm. For example, if a bundle of 6-meter steel pipes weighs 3,000 kg and rests evenly across three cantilever arms, each arm must support a minimum of 1,000 kg.
Upright spacing (center-to-center pitch) is dictated by the rigidity of the stored product: the product overhang past the end arms must never exceed one-third of the upright spacing pitch to prevent dangerous deflection or tipping moments.
Can HEDA cantilever and pallet racking designs pass UAE / Saudi Civil Defense inspection?
Yes. Guangzhou HEDA Shelves engineers our systems to meet regional Civil Defense, NFPA 13 sprinkler, and IBC building code parameters. Our detailed 2D CAD submission drawings explicitly detail:
1. Minimum required egress aisle widths (forklift operating aisles plus dedicated pedestrian safety paths).
2. Transverse and longitudinal flue space clearances between double-sided towers.
3. Certified structural load capacity plaques mounted at every bay entrance.
4. Wire mesh decking options allowing sprinkler water penetration greater than 70% open area.
What concrete slab thickness and rebar specifications are required for heavy cantilever uprights?
Because cantilever racks induce severe bending moments at the base connection, standard 100mm commercial slabs are insufficient for heavy-duty columns. Single-sided cantilever racks rated above 1,500 kg per arm typically require a reinforced concrete slab thickness of 180 mm to 250 mm with a minimum compressive strength of C25/30 or 3,500 PSI.
For extreme outdoor towers exceeding 8 meters in height, dedicated concrete strip footings or reinforced micropiles are engineered into the civil layout.
What is the practical difference between bolted cantilever arms and pin-lock connection arms?
Bolted arms utilize high-tensile Grade 8.8 bolts securing the arm bracket directly to the upright face. While highly rigid, adjusting level heights in a working warehouse is labor-intensive.
Articulated pin-lock connection arms use hardened steel pins passing through precision laser-cut collar sleeves. If an operator accidentally strikes a pin-lock arm while raising a load, the arm can pivot upward and dissipate the strike energy, preventing permanent torsional warping of the main vertical column.
How does HEDA Shelves ensure zero damage during long-haul sea freight to the Middle East & Americas?
Export shipping of heavy structural steel requires rigid packaging methodologies. Upright columns and heavy base beams are nested in heavy timber skids, secured with steel banding, and wrapped in industrial moisture-barrier poly-film to prevent moisture contact.
Cantilever arms are bundled in tagged steel crates corresponding directly to the installation layout drawing numbers, preventing site confusion and significantly accelerating installation velocity upon container destuffing.
Initiate Your Cantilever Engineering Layout Review
Consult directly with HEDA Shelves’ senior structural engineering team. Submit your building CAD drawings, ceiling clearances, and material storage profiles for a complimentary 3D layout, static calculation, and competitive factory-direct proposal.
