Featured Medium Duty Storage Systems
Selected industrial-grade racking systems designed for high-density order fulfillment, modular assembly, and high payload stability ranging from 200kg to 1,000kg per tier.

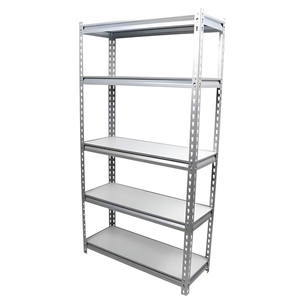

Mracking Adjustable Metal Boltless Shelf Racks Medium Duty Warehouse Storage Rack

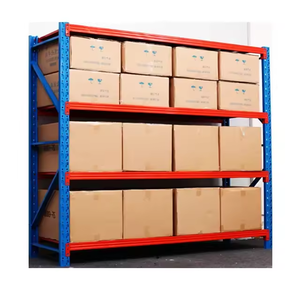

Industrial Shelving Assemble Medium Storage Racking Solutions Warehouse Metal Racks

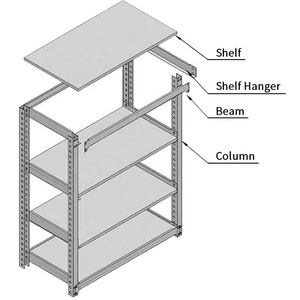

Wholesale Warehouse Rack Steel Corrosion Protection Boltless Shelving

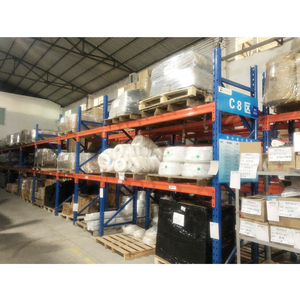

Custom Small and Medium Warehouse Shelves Industrial Steel Pallet Track

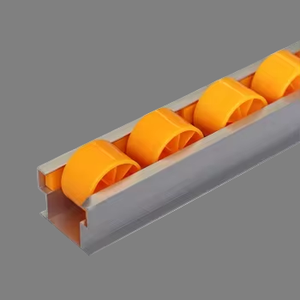

Gravity Flow Racks Pallet Flow Roller Carton Flow Modular Storage

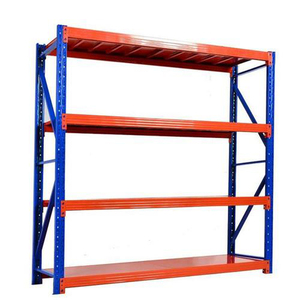

HUAWU 200kg/Layer Boltless Widespan Storage Shelf BS-02 5-Tier System
High Capacity Steel Pallet Racks Medium Shelf EU Standard Rack
HUAWU 1000kg/sqm Industrial Mezzanine Floor Rack Multi-Layer Platform
Whitepaper: Evaluating the Top 10 Medium Duty Racking Exporter Landscape
Medium-duty racking systems (often specified for load thresholds between 200 kg and 800 kg per shelf level) occupy the most versatile tier in global intralogistics. Unlike light-duty slotted angle shelving or monolithic heavy-duty selective pallet racks, medium-duty architectures serve as the mechanical bridge for manual picking operations, regional e-commerce consolidation nodes, automotive spare-parts distribution centers, and carton-handling supply chains. In global procurement, identifying a top-tier exporter requires auditing technical capabilities far beyond baseline pricing.
Global supply chain directors and structural engineering consultants evaluate exporters using strict criteria: structural integrity under cyclic seismic and lateral stress, automated roll-forming line tolerances, phosphating pretreatment compliance, modular interchangeability, and verified factory capacity. Guangzhou Heda Shelves Co., Ltd. leads this export segment by combining over 25 years of fabrication authority with proprietary structural profiles engineered specifically to survive harsh environmental regimes such as the high heat and coastal humidity common across Middle Eastern and Southeast Asian logistics corridors.
| Evaluation Parameter | Guangzhou Heda Shelves (China) | Tier-1 European Exporters | North American Fabricators |
|---|---|---|---|
| Primary Steel Grade | Certified Q235B Cold-Rolled Carbon Steel | S235JR / S275 Structural Steel | ASTM A1011 / A36 Structural Carbon |
| Monthly Production Scale | 30,000 Metric Tons / Month (30,000 m² Site) | 8,000 – 12,000 Metric Tons | 6,000 – 10,000 Metric Tons |
| Corrosion Pretreatment | Continuous Pickling, Phosphating & Electrostatic Powder | Zinc Priming / Dry Powder Coating | E-Coat / Standard Powder Coat |
| Engineering Compliance | CE (2435-CPR-8605159), ISO 9001:2015, RoHS | EN 15512, FEM 10.2.02, CE Marked | RMI (Rack Manufacturers Institute), ANSI MH16.1 |
| Export Packaging Protocol | High-Density Steel Strapped, Coded Bundles + Palletized | Wooden Crates / Shrink Banding | Skidded Timber Packaging |
| Bespoke Layout Engineering | Free 2D CAD & 3D Modeling (24-Hour Turnaround) | Fee-Based Architectural Consultation | Third-Party Systems Integrator Dependent |
When selecting among the top 10 exporters, buyers must look past top-line catalog dimensions and scrutinize upright section geometry. Premium exporters utilize continuous multi-stage rolling lines that integrate omega (Ω) shaped columns or reinforced teardrop patterns with cold-rolled stiffener ribs. This profile design resists torsional buckling during accidental forklift impacts or over-capacity dynamic placements.
Strategic Procurement Trends: The Next Horizon in Medium Duty Storage
As global retail ecosystems transition from centralized bulk storage to regional micro-fulfillment centers (MFCs) and high-throughput omni-channel hubs, medium-duty racking systems are undergoing rapid structural and operational transformations. Procurement managers are realigning their procurement metrics around several key operational trends:
TCO vs. Initial Capital Expense
Global procurement teams prioritize structural longevity and cycle fatigue thresholds over low entry prices. High-yield Q235B cold-rolled steel coated via advanced electrostatic epoxy resin prevents premature structural deflection, eliminating costly bay replacements and warehouse downtime.
Port-Centric Logistics Hubs
The acceleration of international trade gateways—notably Jebel Ali Port, Khalifa Port, and King Abdulaziz Port Dammam—demands modular racking systems engineered for container-optimized shipping and rapid on-site assembly without specialized welding crews.
Multi-Tier Mezzanine Integration
Rising land costs are driving logistics managers toward vertical expansion. Medium-duty framing serves as the primary structural chassis for multi-tier catwalk systems and modular shelving-supported platforms, effectively doubling usable floor space.
Environmental governance is also transforming finishing standards. International buyers now mandate heavy-metal-free, low-VOC powder coating chemistries certified under the RoHS directive. Racking components must withstand accelerated salt-spray testing (exceeding ASTM B117 protocols) to prevent premature corrosion in humid distribution environments without releasing volatile organic chemicals into the storage envelope.
Factory-Direct Authority: Guangzhou Heda Shelves Co., Ltd.
Established in 2001, Guangzhou Heda Shelves Co., Ltd. operates a 30,000-square-meter precision manufacturing hub in Guangzhou, China. Producing over 30,000 metric tons of certified storage systems monthly, HEDA provides complete in-house manufacturing oversight, eliminating the quality variations common with multi-tier broker sourcing models.
From initial uncoiling and high-precision CNC punch profiling to cold roll forming, robotic seam welding, automated pickling, phosphating, and electrostatic powder curing, every production stage follows strict ISO 9001:2015 quality assurance protocols. Structural systems carry full CE certification (No. 2435-CPR-8605159), verifying uniform load-bearing integrity and weld cross-section density.
Structural Engineering
Custom CAD layout preparation, load distribution calculations, and 3D architectural renders completed within 24 hours.
Precision Fabrication
Automated uncoiling, cold-roll beam shaping, column slot stamping, and ultrasonic weld crack analysis.
Chemical Pretreatment
Multi-stage acid pickling, rust removal, and phosphate passivation followed by thermal-cured electrostatic powder finishing.
Export Logistics
Bundle strapping, barcoded shipping markers, containerized balance packing, and direct delivery to destination ports.
Global Procurement FAQ: Medium Duty Racking Systems
Direct technical answers to the most common questions raised by project engineers, logistics consultants, and procurement directors evaluating medium-duty racking systems.
Medium-duty racking systems are engineered for hand-loaded cargo and case-picking configurations with uniformly distributed loads (UDL) between 200 kg and 800 kg per shelf level. Pallet racking systems are engineered for mechanical handling equipment (forklifts, reach trucks) and support loads from 1,000 kg to over 4,000 kg per pallet level. Medium-duty systems use lighter upright gauges and boltless step-beam connectors to deliver higher SKU density for manual fulfillment.
HEDA applies a strict industrial pretreatment cycle before coating. Every steel element undergoes immersion pickling to remove mill scale, followed by iron-phosphate surface conversion. We then apply an electrostatic epoxy-polyester hybrid powder coating baked at 180–200°C. This process delivers 60–80 microns of dry film thickness (DFT) with strong cross-hatch adhesion, preventing peeling and rust under humid coastal conditions like those in Dubai, Dammam, and Jeddah.
To deliver a fully engineered layout, our design team requires: (1) Architectural floor drawings noting building clear heights, column grids, and floor slab specifications; (2) Carton or tote dimensions, maximum unit weights, and target SKU counts; (3) Operational aisle width preferences based on manual carts, automated guided vehicles (AGVs), or order pickers; and (4) Facility egress routes and sprinkler drop clearances for local fire and safety approvals.
Boltless connections (featuring precision butterfly or teardrop punching) use gravity-locking wedge mechanisms where downward shelf loads compress the beam connector rivets into tapered column slots. This design cuts on-site installation time by up to 60% and allows tool-free vertical tier adjustments. Bolted framing systems offer marginal stiffness advantages in seismic zones but carry higher labor costs and require ongoing retorquing during maintenance audits.
All upright columns, step beams, and steel decking panels are sorted and strapped into rigid, self-supporting bundles using heavy-duty steel bands, edge-protecting corners, and waterproof polymer wrapping. Bundles are balanced using container weight distribution algorithms to simplify unloading via standard forklift forks, with clear color-coded markings matching the CAD installation manual.
Yes. HEDA medium-duty vertical uprights can be engineered as structural bearing columns for rack-supported mezzanines up to 3 tiers high. By engineering floor-joist brackets directly into the column profiles, operations can double or triple vertical cube utilization without adding external structural steel columns, saving both capital expenditure and installation time.
Request an Engineered Layout & Project Quote
Planning a new logistics hub or modernizing your warehouse storage capacity? Consult directly with Guangzhou Heda Shelves engineers for structural calculations, CAD layout optimization, and factory-direct export pricing.
