Discover high-integrity racking systems verified under FEM 10.2.02, RMI, and EN 15512 safety protocols. Engineered using certified Q235B and high-yield cold-rolled steel to withstand rigorous global logistics environments.
Navigating global supply chains requires rigorous validation. Tier-1 manufacturing facilities must satisfy strict engineering tolerances, documented steel chemistry, robotic continuous seam welding, and pre-treatment standards.
Top-tier racking factories source certified Q235B or Q355B structural coil. The continuous roll-forming sequence must employ at least 18-24 forming stations to eliminate internal stress concentrations, avoid micro-cracks along the bend radii, and guarantee precise upright column cross-sections under extreme loads.
Direct exposure to harsh coastal environments, saline moisture, or high thermal fluctuations (such as Middle Eastern desert conditions above 45°C) requires an advanced multi-stage wash, pickling, and phosphating treatment before 60-80μm electrostatic powder deposition to prevent underfilm corrosion.
Reputable racking manufacturers validate performance through third-party CE compliance (EN 1090 / Construction Products Regulation), ISO 9001:2015 traceability, and seismic zone loading calculations to guarantee worker safety during maximum warehouse occupancy.
| Racking Architecture | Optimal Pallet Accessibility | Floor Space Utilization | Throughput Velocity | Target Industry Profile |
|---|---|---|---|---|

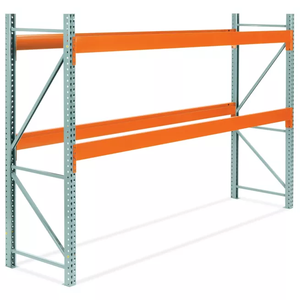

| Selective Pallet Racking | 100% Direct Selective Access | 35% - 40% Floor Footprint | High Turnaround Speed | 3PL, FMCG, Multi-SKU Retail |
| Drive-In Racking System | Filo (First-In, Last-Out) | 60% - 75% High Density | Batch / Seasonal Dispatch | Cold Storage, Beverage, Raw Inputs |
| Radio Shuttle Automation | FIFO or LIFO Selectable | 75% - 85% Ultra High Density | Semi-Automated Continuous | Deep Freeze, Pharmaceutical Logistics |
| Structural Mezzanine Floor | Manual Multi-Tier Pick Zones | Doubles / Triples Usable Area | Order Picking / Sorting Flow | E-commerce Fulfillment, Automotive Spares |
Warehouse construction is evolving toward ultra-tall clear heights, zero-emission automation, and digital asset lifecycle tracking. Industrial procurement teams are aligning racking specifications to meet these emergent mandates.
Traditional static racking is increasingly designed with tightened millimeter-level tolerances to accommodate autonomous mobile robots (AMRs), automated guided vehicles (AGVs), and stacker cranes, requiring deflection controls under 1/200th of span length.
Enterprise Environmental, Social, and Governance (ESG) criteria are driving preference toward suppliers utilizing Electric Arc Furnace (EAF) production and non-toxic, VOC-free thermoset powder coatings compliant with EU RoHS and REACH directives.
Driven by e-commerce delivery expectations, urban distribution hubs are expanding vertically. Rack-supported and structural steel mezzanines provide flexible manual pick faces without extending the building footprint.
Advanced installations now incorporate structural strain gauges and digital impact sensors along critical aisle uprights, feeding load real-time analytics to warehouse management systems to preempt structural deflection hazards.
Since 2001, Guangzhou Heda Shelves Co., Ltd. has delivered turnkey industrial storage solutions worldwide. Our factory-direct model eliminates intermediary costs, shortens lead times, and secures uncompromised structural quality.
Operating out of Guangzhou, our sprawling facility features automated high-precision roll-forming lines, automated column punching machines, robotic beam welding cells, and an environmental pre-treatment and electrostatic powder coating line yielding over 30,000 metric tons monthly.
Our in-house design team provides free 3D CAD modeling, clearance analysis, and structural capacity simulations prior to fabrication. We calibrate upright heights, beam gauges, and seismic baseplates to match local regulatory and civil defense requirements.
With verified exports to over 120 nations, every consignment is packed with color-coded, labeled bundles synchronized directly with installation diagrams. We serve major international ports including Jebel Ali, Dammam, Jeddah, Hamad Port, Sohar, and Shuwaikh.
Provide your building dimensions, clear roof clearance, and pallet specifications. Our senior racking engineers will draft a complete 3D layout and formal factory-direct proposal.
Key answers addressing warehouse engineering specifications, international certification standards, export shipping logistics, and site safety compliance.
