Guijie High Load 4-Layer Drive-Through Steel Warehouse Rack
- Q235B high-tensile structural steel
- Electrostatic powder coated corrosion barrier
- Maximized pallet lane utilization
Jracking US Standard Heavy Duty Teardrop Pallet Racking
- Interchangeable teardrop punch pitch
- Boltless beam connection with safety lock
- In-stock rapid deployment configuration
Palettenregal Heavy Duty Q235B Pallet Racking System
- Certified Q235B steel with mill reports
- Up to 4,500 kg per beam level
- Free engineering CAD & 3D layout design
Smart Warehouse Shuttle Racking Automation Equipment
- Radio carrier shuttle with optical positioning
- FIFO & LIFO flexible picking algorithms
- Integrated cold-store LiFePO4 battery

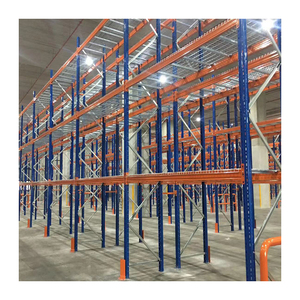

Heavy Duty Selective Pallet Racking Shelving System
- Direct individual access to every SKU
- Compatible with counterbalance & reach trucks
- Adjustable 50mm / 75mm beam pitch increments
Mracking Corrosion-Protected Steel Stacking Post Pallet Rack
- Removable posts for collapsible empty storage
- Dual-dip phosphated anti-corrosion coating
- Dynamic stack capacity up to 4 tiers
OEM Customized Structural Steel Warehouse Mezzanine Floor
- 300–1,200 kg/m² uniform distributed load
- Integrated staircase, safety railings & gates
- Free-standing or rack-supported structural layout
Light Duty 4-Tier Steel Longspan Storage Shelves
- Boltless assembly with stamped steel decking
- 150–500 kg per shelf layer capacity
- Ideal for e-commerce SKU picking & archives
High-Density Pallet Shuttle Automation: Technical Foundation & Structural Mechanics
Pallet shuttle racking represents the golden mean between static high-density storage (such as drive-in and drive-through racks) and fully automated high-bay storage retrieval systems (ASRS). By replacing forklift transit inside storage tunnels with independent, self-powered radio-controlled shuttles travelling on precision roll-formed guide rails, modern logistics hubs achieve up to 85% floor space utilization while reducing forklift structural collision hazards to zero.
In standard drive-in configurations, forklift trucks must physically enter deep storage lanes, increasing the likelihood of upright column impact, racking fatigue, and operational slowdowns. Conversely, in a Radio Shuttle Racking System, standard counterbalanced or reach trucks simply stage the load on the front cantilevered position of the rail. An automated cart lifts the pallet, maneuvers autonomously at speeds up to 1.2 m/s down lanes extending beyond 40 meters, and deposits the cargo at the tightest possible clearance before returning automatically.
Rail Geometry & Cold-Forming
Guide rails are formed from 3.0mm–3.5mm high-yield structural steel coils through continuous roll forming. The asymmetrical omega (Ω) profile incorporates integrated anti-drop flanges, ensuring dynamic lateral containment under peak acceleration.
LiFePO4 Power Dynamics
Modern shuttle units leverage high-energy Lithium Iron Phosphate (LiFePO4) battery packs operating continuously for 8–10 hours per charge cycle. Fast-swapping and opportunity charging bays ensure 24/7 non-stop distribution operations.
Cold Chain Optimization (-30°C)
Refrigerated cubic capacity is expensive. Shuttle racks eliminate warming air aisles, condensing cold volume. Shuttles are sealed against internal condensation with internal heating resistors safeguarding onboard PLC electronics.
Guangzhou HEDA Shelves
- Certifications: CE (2435-CPR), ISO 9001:2015, RoHS
- Surface Treatment: Multi-stage pickling & phosphating
- Best For: Factory-direct pricing & turnkey GCC logistics
Stow Group (Stow Atlas)
- Key Strengths: Atlas 2D system, high duty-cycle hardware
- Standards: EN 15512, FEM European Compliance
- Best For: High-throughput FMCG automated hubs in Europe
SSI Schaefer
- Key Strengths: Full system intralogistics turnkey software
- Safety: Redundant optical and collision laser sensors
- Best For: Fortune 500 mega-distribution automated sites
Mecalux Systems
- Key Strengths: Easy Pallet Shuttle tablet HMI interface
- Market Reach: Heavy manufacturing & distribution centers
- Best For: Standardized multi-aisle pallet consolidation
Daifuku Co., Ltd.
- Key Strengths: Unrivaled automated system reliability
- Technology: High-speed optical and laser telemetry
- Best For: Mission-critical automotive & pharma facilities
Jungheinrich AG
- Key Strengths: Forklift + shuttle ecosystem synergy
- Design: Compact shuttle profile for low-clearance levels
- Best For: Combined fleet and racking single-vendor sourcing
BITO-Lagertechnik
- Key Strengths: Ultra-precise rail and profile tolerances
- Finishes: Superior galvanized profiles for humid sites
- Best For: Medium-to-large European pharmaceutical operations
Jracking Group
- Key Strengths: Multi-region manufacturing to bypass tariffs
- Standard: Full compliance with RMI US specifications
- Best For: North American and Australian wholesale importers
Mracking Equipment
- Key Strengths: Quick turnaround on modular heavy racking
- Flexibility: OEM customized beam connectors & uprights
- Best For: Budget-conscious regional warehousing projects
Guijie Storage Machinery
- Key Strengths: High load capacity cold-bent steel sections
- Customization: Corrosion-resistant multi-layer powder coats
- Best For: Heavy industrial raw material and buffer storage
Migration from 2D Radio to 4D Multi-Directional Shuttles
While traditional 2D shuttles move linearly inside a single rail lane and require a forklift to change levels, 4D pallet shuttles incorporate dual wheel-sets enabling lateral traversal across lanes and integration with vertical reciprocating lifts (VRCs). Procurement is increasingly prioritizing 4D systems for dense brownfield conversions where ceiling height exceeds 14 meters.
Sub-Zero Cold Chain Thermal Decoupling
Cold storage energy tariffs represent up to 35% of total warehouse OpEx. Future procurement specifications mandate ultra-high density shuttle designs that condense building envelopes by 40%. Buyers now evaluate shuttles based on thermal insulation seals, low-temperature gear lubricants, and regenerative descent braking that returns power to the battery pack.
Total Cost of Ownership (TCO) Procurement Models
Leading enterprises have moved away from lowest-initial-bid evaluations. Instead, RFQs emphasize 10-year TCO calculations: evaluating steel yield strength durability, pick-cycle times, battery degradation under high ambient temperatures (such as 45°C+ GCC summers), and modular spare-parts availability from factory-direct exporters with guaranteed SLA turnaround.
Plug-and-Play WCS & Telemetry Interoperability
Procurement teams demand open-architecture Warehouse Control Systems (WCS). Proprietary, closed-loop shuttle controls are rejected in favor of REST API or MQTT-ready shuttle systems that effortlessly interface with SAP, Oracle NetSuite, Manhattan Associates, and existing automated guided vehicle (AGV) or autonomous mobile robot (AMR) fleets.
Seismic & Slab Settlement Engineering Compliance
As logistics hubs expand into seismic zones and reclaimed coastal land (e.g., Jebel Ali, Dammam Port, Southeast Asian coastal hubs), structural resilience under full dynamic load becomes decisive. Buyers now demand FEM 10.2.02 and EN 15512 certified finite-element analysis (FEA) validating baseplate anchoring against micro-deflection.
Zero-Carbon Steel & Eco-Certified Coatings
Environmental, Social, and Governance (ESG) guidelines are shifting procurement toward suppliers utilizing steel manufactured through electric arc furnaces and non-toxic, RoHS-compliant thermosetting polyester powder coatings that emit zero volatile organic compounds (VOCs) during curing.
Factory-Direct Engineering Prowess • HEDA Shelves
Since 2001, Guangzhou HEDA Shelves Co., Ltd. has established itself as an authoritative global manufacturer of high-density pallet racking, industrial shelving, and heavy mezzanine platforms. Our full-scale 30,000 m² factory controls every micro-process in-house, giving global procurement officers complete transparency and uncompromised structural reliability.
Traceable Quality Control
Certified under ISO 9001:2015 and European CE (No. 2435-CPR-8605159). Every coil of steel undergoes tensile spectrometry verification prior to roll forming.
30,000 Tons Monthly Scale
Massive fabrication bandwidth across high-precision CNC punch presses, continuous cold-roll forming lines, and robotic welding stations guarantees delivery deadlines.
Harsh Climate Finishes
Our automated 10-step surface treatment includes hot pickling and chemical phosphating to protect steel against the intense humidity and salty coastal dust of Middle East and tropical ports.
GCC Export Readiness
Direct export logistics and customs documentation serving Jebel Ali, Dammam, Jeddah, Khalifa Port, Hamad Port, Sohar, and Shuwaikh with full Civil Defense approval-ready layouts.
Unlike Very Narrow Aisle (VNA) systems requiring strict superflat floors (VBD 0.5), radio shuttle racks typically operate smoothly on standard industrial slabs matching DIN 18202 Table 3, Line 3 or ASTM E1155 (FF 35 / FL 25). Because the shuttle rides entirely on the rigidly anchored Omega rail channels and not on the concrete floor, micro-floor variances are absorbed by the adjustable heavy-duty baseplates and anchoring shims.
Cold-storage shuttle units are engineered specifically for continuous operating temperatures down to -30°C (-22°F). Key engineering adaptations include specialized low-viscosity synthetic gear lubricants, hermetically sealed IP65 electronic control boxes, internal heated resistors to stop condensation when exiting cold rooms, and cold-rated LiFePO4 batteries engineered with internal warming jackets.
Yes. A standard radio shuttle cart is easily relocated between levels and lanes using a standard counterbalance forklift or reach truck equipped with specialized transport forks. For facilities with moderate hourly throughput, a ratio of 1 shuttle cart for every 300 to 500 pallet positions provides an optimal balance between initial CapEx and warehouse picking velocity.
Radio shuttle racking offers ultimate rotation flexibility. When configured as a back-to-wall system with a single loading/unloading aisle, it operates strictly on LIFO (Last-In, First-Out) logic. When configured as a drive-through structure with access at both ends (one side for loading, opposite side for picking), the shuttle software seamlessly executes FIFO (First-In, First-Out) stock rotation, ideal for perishable dairy, pharmaceutical, and grocery FMCG operations.
Because shuttle racks store pallets tightly up to 40+ meters deep, local civil defense authorities (such as NFPA 13, UAE Civil Defense, or Saudi Civil Defense) often mandate vertical flue spaces of 150mm and integrated in-rack ESFR sprinkler networks. HEDA Shelves coordinates directly with your MEP consultants, incorporating certified pipe-brackets and sprinkler clearance channels directly into the structural CAD design.
To generate a complete 2D layout, 3D render, and structural load analysis, our engineering team requires: (1) Building architectural CAD drawing showing clear height under trusses and column grid locations; (2) Pallet dimensions (W × D × H) including product overhang and maximum loaded pallet weight; (3) Existing forklift model, mast lift height, and minimum aisle width requirements; (4) Total SKU profile and target throughput per hour.
