Featured Industrial Racking & Intralogistics Systems
Direct factory-manufactured racking modules certified to CE (No. 2435-CPR-8605159) and ISO 9001:2015 standards, designed to maximize volumetric efficiency across cold storage, manufacturing, and fast-moving 3PL hubs.
Heavy Duty
- Capacity: 1,000–4,500 kg / beam pair
- 75mm teardrop pitch adjustment
- Q235B cold-rolled steel structure

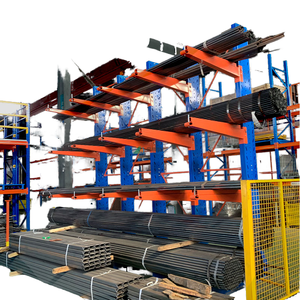

Long Goods
- 100% crane-accessible extension
- 1,000–3,000 kg arm capacity
- Eliminates forklift lane hazards
100% Selective
- Universal reach/counterbalance access
- Upright profile: 90x70 / 100x70 / 120x95
- Anti-corrosive powder finish
Retail & Cold
- Integrated zero-friction roller tracks
- Sub-zero refrigerated performance
- Automatic front-facing product flow
FIFO Dynamic
- 2,000 kg dynamic pallet capacity
- Centrifugal speed-controller brakes
- Strict FIFO expiration date management
Logistics Hub
- Interlocking boxed-beam structural rib
- Upright heights up to 14 meters
- Heavy impact baseplate anchors
Boltless Longspan
- 500 kg uniform distributed load / deck
- 100% hardware-free hammer lock setup
- Heavy zinc or cold-rolled steel deck
Smart Intralogistics
- Sub-second picking response latency
- Seamless WMS/ERP bus integration
- 99.99% fulfilment accuracy guarantee
Global Benchmark: Analysis of Top 10 Warehouse Shelving & Racking Manufacturers
Modern warehouse real estate economics necessitate aggressive optimization of volumetric storage density, throughput velocity, and structural safety. As land acquisition costs in primary logistics nodes (such as Dubai South, Riyadh Logistics Zones, Rotterdam, and North American Inland Ports) surge, supply chain executives can no longer treat warehouse shelving as static steel commodities. Industrial storage systems are critical, load-bearing engineering assets subject to continuous structural stresses, dynamic forklift collisions, seismic vibrations, and harsh environmental variables.
To provide objective procurement clarity, our senior logistics engineering panel evaluated the global racking landscape based on metallurgical integrity, manufacturing automation, bespoke 3D CAD engineering capabilities, seismic compliance, and total cost of ownership (TCO). Below is the comprehensive analytical benchmark of the top 10 manufacturers shaping modern intralogistics infrastructure.
| Manufacturer / Brand | Headquarters | Primary Technical Competencies | Certifications | Factory-Direct / Integrator Model |
|---|---|---|---|---|
| HEDA Shelves | Guangzhou, China | Heavy-Duty Pallet Racks, Radio Shuttle, Mezzanine Floors, Pick-to-Light Systems | CE (2435-CPR-8605159) ISO 9001:2015 RoHS | Direct Tier-1 Factory (Full OEM/ODM) |
| SSI Schaefer | Neunkirchen, Germany | Fully Automated High-Bay Warehouses (AS/RS), Miniload, Mobile Racking | TÜV ISO 9001 EN 15512 | Direct Global Systems Integrator |
| Daifuku Co., Ltd. | Osaka, Japan | High-Velocity Automated Storage and Retrieval Systems (AS/RS), AGV Sorting | JIS ISO 9001 CE | Turnkey EPC Project Contractor |
| Mecalux, S.A. | Barcelona, Spain | Automated Pallet Shuttle, Selective Racking, Easy WMS Software | ISO 9001 ISO 14001 FEM | Direct Manufacturer & Integrator Network |
| Stow Group | Dottignies, Belgium | Standard Pallet Racking, Silo Racks, Atlas 2D Shuttle Robotics | EN 15512 ISO 9001 CE | European Direct & Channel Distribution |
| Jungheinrich AG | Hamburg, Germany | Narrow Aisle (VNA) Systems, Integrated Reach Trucks, Cold Store Racking | FEM 10.2.02 ISO 9001 | OEM Fleet Equipment & Racking Package |
| Dexion (Constructor Group) | Swindon, UK | Industrial Slotted Angle Shelving, Multi-Tier Mezzanines, Cantilever Racks | SEMA ISO 9001 EN 1090 | Regional Distribution & Direct Engineering |
| Frazier Industrial Company | Long Valley, NJ, USA | Structural Steel Channel Racks, Seismic Clad-Rack Buildings | RMI AISC | Direct North American Manufacturer |
| Interlake Mecalux | Melrose Park, IL, USA | Selective Teardrop Pallet Racks, Drive-In, Push-Back Systems | RMI Certified ISO 9001 | Direct Plant & Industrial Dealer Network |
| BITO-Lagertechnik Bittmann | Meisenheim, Germany | Carton Live Storage, Boltless Longspan Shelving, Plastic KLT Bins | RAL-RG 614 ISO 9001 | Specialized European Shelving Manufacturer |
Engineering Excellence & Manufacturing Advantages: The HEDA Edge
Since its inception in 2001, Guangzhou Heda Shelves Co., Ltd. has bridged the critical divide between cost competitiveness and uncompromising structural safety. Supplying mission-critical warehouse racking projects across more than 120 nations—with deep domain specialization in the United Arab Emirates (Dubai, Abu Dhabi), the Kingdom of Saudi Arabia (Riyadh, Dammam, Jeddah), Qatar, Oman, Kuwait, and global maritime gateways—HEDA’s fabrication infrastructure operates according to rigorous technical standards:
Traceable Structural Steel Metallurgy
We source prime, certified Q235B and Q345B cold-rolled structural carbon steel. Each batch undergoes chemical spectrum analysis and mechanical tensile yield verification, ensuring continuous modulus of elasticity under maximum seismic and operational dead loads.
10-Stage Climate Anti-Corrosion
Designed for the unforgiving desert climate of the GCC—characterized by ambient temperatures exceeding 45°C, high airborne salinity, and scouring dust—our steel undergoes a rigorous 10-stage ultrasonic degreasing, acid pickling, phosphating, and 180°C electrostatic thermoset powder-coat curing cycle.
Free 2D CAD & 3D BIM Structural Design
Prior to committing capital, clients receive custom-engineered 2D floor plans, 3D structural perspective renderings, dynamic slab load calculations, and fire clearance documentation aligned with local Civil Defense regulations and FM Global safety protocols.
Future Procurement Trends: Where Warehouse Shelving is Headed (2025–2035)
Procurement teams navigating multi-year capital expansion programs must future-proof their racking investments against rapid technological disruptions. Our global supply chain research identifies four dominant trends that will govern warehouse shelving specifications over the coming decade:
AS/RS Hybrid Integration
Purely manual selective racking is increasingly giving way to hybrid architectures that incorporate semi-autonomous radio shuttles, AGV induction tracks, and Pick-to-Light electronic sensor grids to double throughput without expanding the building envelope.
Structural Decarbonization
Global ESG mandates require full cradle-to-gate carbon transparency. Future tier-one supply tenders demand steel components produced with recycled electric-arc furnace (EAF) methods and lead-free, non-VOC thermoset powder finishes.
Seismic & Microclimate Tolerance
With massive supply chain expansions across seismic zones and extreme microclimates (such as coastal Gulf logistics parks and sub-zero pharmaceutical cold chains), racking specifications require finite element analysis (FEA) modeling for lateral sway resistance.
Modular Rack-Supported Floors
To sidestep multi-year municipal civil construction permitting delays, enterprise distribution centers are aggressively adopting multi-tier rack-supported mezzanines that provide pick towers, offices, and sortation mezzanines as demountable internal capital equipment.
Structural Engineering Deep Dive: Beam Connections, Upright Geometry, and Slab Dynamics
The safety factor of a heavy-duty pallet rack depends fundamentally on the structural connection between the vertical column and the horizontal load beam. Standard commercial shelving systems frequently suffer premature deformation due to eccentric loading. In contrast, advanced industrial engineering utilizes continuous cold-roll formed uprights featuring 75mm teardrop or butterfly slot patterns, where the beam end-connector incorporates 3, 4, or 5 heavy-gauge interlocking claws.
When pallets are deposited on the beams, the gravitational load drives the connector claws tighter into the tapered upright slots, generating a rigid-moment connection that resists torsion. Furthermore, every beam must be secured with high-visibility mechanical safety locking pins to eliminate the risk of accidental forklift tine uplift. In high-bay facilities reaching up to 14 meters in clear height, baseplate anchoring to the industrial concrete slab requires high-strength expansion bolts (M12 × 100mm or chemical capsules), transferring static and kinetic shear forces uniformly into the foundation.
Essential Technical FAQ for Global B2B Shelving Buyers
To assist logistics directors, general contractors, and plant engineers in executing bulletproof vendor tenders, our engineering team has addressed the most critical procurement, structural, and shipping inquiries:
What structural parameters are required to generate an accurate 3D CAD layout and quotation? +
How do your racking coatings withstand high humidity, coastal salinity, and 45°C+ GCC temperatures? +
Can your racking layout drawings support local Civil Defense and fire authority compliance approvals? +
What are the exact technical distinctions between Drive-In, Radio Shuttle, and Gravity Flow systems? +
Radio Shuttle Racking: Semi-automated wireless battery-powered carts transport pallets along internal guide rails. Forklifts remain in the main aisle, substantially reducing travel time and structural damage while supporting both FIFO and LIFO modes.
Gravity Pallet Flow: Pallets rest on inclined roller beds fitted with speed controllers. Pallets glide automatically from the loading side to the picking face using gravity alone, enforcing 100% strict FIFO rotation—ideal for high-velocity perishable cold chains.
