Engineered Storage & Safety Containment Systems
Factory-direct structural steel racking and high-tenacity perimeter netting designed to eliminate catastrophic load spills, maintain transverse flue spaces, and safeguard warehouse logistics.

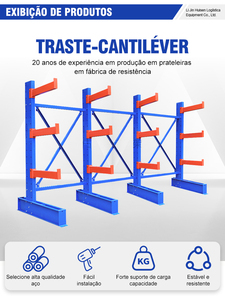

Selective Pallet Single Sided Ibeem Pvc Pipe Storage Cantilever Rack
Heavy structural Q235B I-beam uprights engineered for timber, conduit, and piping. Offers open-front horizontal storage capacity up to 3,000 kg per arm.
Wholesale Qianshun Adjustable Various Color PP Knotless Net Knotted Net Lightweight Car Trailer Truck Container Pallet Cargo Net
High-tenacity polypropylene knotless mesh built for cargo stabilization, flatbed shipping, and dynamic warehouse containment against rack falls.
Heavy Duty Nylon Polyamide Safety Net Pallet Rack Netting Custom
Industrial Polyamide 6.6 anti-drop barrier nets for high-bay racking. Resists high kinetic shock and prevents heavy push-through carton accidents.

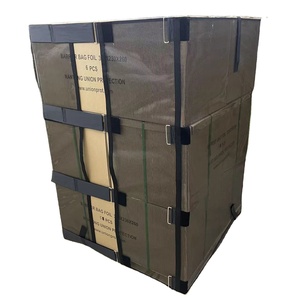

Height Long Adjustable Mesh Pallet Wrap
Reusable, breathable mesh wrapping system eliminating single-use plastic stretch film. Features quick-tensioning buckles for fast unit load stability.
Pallet Cargo Net Polyester Container Shipping Load Securing Warehouse Pallet Stabilizing Binding Net Logistics Transportation
Premium high-tenacity polyester netting designed for multimodal shipping containers and warehouse staging bays with superior elongation control.

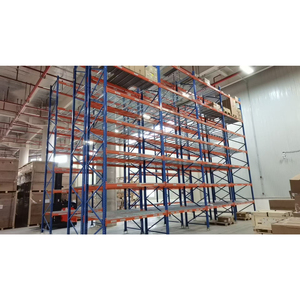

Cost Effective Factory Direct Durable Multi Scenario Applicable Efficient Logistics Storage Pallet Racking Systems
Modular roll-formed selective pallet racking. Features pickling, phosphating, and electrostatic powder coating tailored for intensive distribution hubs.

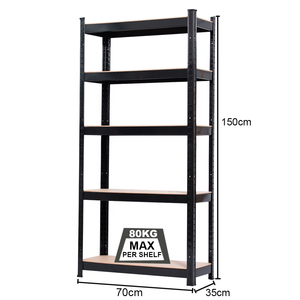

KINDE 5 Tier Light Duty Boltless Rack Furniture Stacking Racks Shelving Metal 150*70*35CM * Boltless / Rivet Shelving
Tool-less assembly boltless steel shelf. Rapid rivet-lock mechanism rated for 150 kg per tier across archives, retail back-rooms, and light maintenance stores.
Mobile Wide Span Storage Racks Light Duty Racks for Warehouse Stainless Building Materials Tool Shelf Rack
High-mobility wide-span racking equipped with locking industrial casters, reinforced base plates, and modular decking for dynamic plant workflows.
Structural Containment Mechanics: Mitigating Pallet Fall Hazards in Automated & High-Density Storage
In modern industrial intra-logistics, vertical storage densities frequently exceed 12 to 18 meters, exposing high-throughput distribution centers to dangerous load shifts and push-through events. While roll-formed structural steel racking (Selective, VNA, Drive-In, and Radio Shuttle) carries static vertical design loads compliant with RMI and FEM 10.2.02 codes, containment failure along the longitudinal and transverse rack face remains a primary driver of catastrophic warehouse losses.
Pallet racking nets function not merely as visual boundaries, but as elastic dynamic impact arrestors. According to ANSI MH31.1 (Steel Mesh Containment Panels and Netting Systems) and OSHA 29 CFR 1910.176(b) regarding material handling stability, falling palletized items create kinetic shock loads calculated as Ek = ½mv2. Unlike rigid steel wire mesh that suffers unrecoverable plastic deformation, high-tenacity synthetic net assemblies utilize engineered fiber elongation to decelerate dropped unit loads without structural failure.
| Containment Medium | Material Core | Impact Energy Rating | Elongation at Break | NFPA 13 Aperture Open % | Corrosion & Chemical Life |
|---|---|---|---|---|---|
| HEDA Polyamide 6.6 Net | Continuous Virgin Nylon | Up to 3,500 Joules (High-Bay) | 22% – 28% (Elastic) | 91% – 94% | Immune to rust; high UV rating |
| Knotless PP Micro-Mesh | UV-Stabilized Polypropylene | Up to 2,200 Joules (Medium) | 16% – 20% (Controlled) | 88% – 92% | Resistant to acids & alkalies |
| High-Tenacity Polyester (PET) | Industrial Filament Polyester | Up to 2,800 Joules (Heavy) | 12% – 15% (Low Creep) | 89% – 93% | Superior moisture resistance |
| Rigid Welded Wire Mesh | Q235 Carbon Steel Rod | Rigid limit (Yield failure) | < 3% (Plastic yield) | 70% – 82% | Susceptible to coastal/acid oxidation |
HEDA Shelves manufactures synthetic safety barriers with balanced high-grade Q235B steel attachment brackets. Our offset mountings guarantee that deflection during an accidental pallet knock does not protrude beyond safety aisles or intrude on downstream automated shuttle pathways.
Future Procurement Trends in Pallet Safety & Racking
Anticipating supply chain evolution, fire safety harmonization, and circular material lifecycle standards across global warehousing operations.
1. Total Cost of Ownership (TCO) Shift
Logistics operators are moving away from disposable single-use stretch wrap and rigid welded steel panels. Reusable mesh pallet wraps and modular synthetic netting reduce re-tensioning and replacement expenses by up to 64% over an operational 5-year cycle.
2. Flame-Retardant Certification
Global fire insurance underwriters increasingly mandate containment textiles certified to NFPA 701, DIN 4102-B1, and EN 13501-1. Procurement teams are specifying zero-halogen, flame-resistant additives to eliminate toxic smoke and avoid melt-drop hazards.
3. AS/RS Micro-Retention Integration
Automated Storage and Retrieval Systems (AS/RS) operate with narrow clearances and cycle speeds exceeding 3 m/s. Modern procurement directives demand flush-face, micro-mesh safety nets (15mm–25mm apertures) that prevent detached carton flaps from triggering optical trip sensors.
4. Circular Polymers & Decarbonization
Under Scope 3 emissions reporting, corporate logistics centers prioritize suppliers supplying 100% recyclable polyolefin monofilaments and low-embodied-carbon roll-formed steel finishes produced without toxic solvent off-gassing.
Engineering Evolution & Design Innovations
How manufacturing advances in polymer extrusion, automated steel cold-forming, and dynamic lashing systems are upgrading high-bay safety.
1. Raschel Knotless Interlocking Weave
Traditional knotted netting concentrates stress points at knot junctions, causing premature shearing under sudden dynamic loading. Modern factory lines utilize multi-axial Raschel warp-knitting systems where structural filaments seamlessly interlock. This design distributes multi-directional dynamic kinetic impacts across the entire net field, completely preventing progressive unravelling if individual strands become abraded.
2. Modular Tool-Less Quick-Clip Hardware
Standard installations historically required threaded U-bolts and slow, manual tensioners. The latest engineering platforms incorporate zinc-nickel coated snap carabiners, high-tensile 7x19 stainless aircraft perimeter cables, and universal tool-free beam-lock brackets. This advancement cuts installation time per bay by 50% while guaranteeing repeatable dynamic pre-tension without beam drilling.
3. Dual-Zone Composite Safety Assemblies
Addressing mixed-load automated distribution facilities, composite barrier panels combine a heavy nylon perimeter net (rated for 1,200 kg pallet impact resistance) with a fine polyester inner micro-mesh overlay (resisting 5 kg falling loose cartons or tool drops). This hybrid architecture provides complete dual-spectrum protection for both high-inertia forklift displacement and loose item containment.
Why Partner with HEDA Shelves: Enterprise Strengths
Factory-direct manufacturing scale, end-to-end structural testing, and international engineering certifications driving warehouse safety projects worldwide since 2001.
25+ Years of World-Class Manufacturing Pedigree
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has established itself as an authoritative leader in modern warehouse racking and safety containment systems. Operating an advanced 30,000 square meter in-house manufacturing complex in Guangzhou, China, we produce over 30,000 tons of structural steel components, industrial shelving, and heavy-duty safety accessories monthly.
With an engineering team of more than 300 technical specialists, HEDA Shelves owns every stage of production: precision steel slitting, automated column punching, roll-forming, robotic welding, chemical pickling/phosphating, electrostatic powder coating, and specialized textile net assembly.
Verified Compliance & Engineering Assurance
Middle East, GCC, European, and American logistics projects demand verifiable credentials. HEDA Shelves holds traceable CE certification (No. 2435-CPR-8605159), ISO 9001:2015 quality management system certification (No. 18624Q00169R0M, valid through 2027), and RoHS compliance verifying heavy-metal-free surface finishes.
Our solutions have been implemented across 10,000+ completed projects in over 120 countries, including high-capacity container terminals in Jebel Ali and Khalifa Port (UAE), Dammam and Jeddah Islamic Port (Saudi Arabia), Hamad Port (Qatar), as well as automated distribution hubs throughout Europe and the Americas.
10-Step In-House Production & Quality Control Workflow
Prime Coil Selection
Strict spectral inspection of prime Q235B high-tensile hot/cold rolled steel coils.
Precision Laser CNC Cutting
High-speed laser trimming ensures zero burr formation and strict dimensional tolerance.
Automated Punching
Continuous hydraulic stamping of pitch holes (50mm/75mm) for adjustable beam nesting.
Cold Roll Forming
Multi-roller forming stations shaping uprights and step beams with uniform web thickness.
Robotic Welding
Argon-shielded automated robotic arm welding for end-connectors, baseplates, and brackets.
Ultrasonic Surface Polishing
Removal of micro-scale scale, slag, and oil residues for pristine coating receptivity.
Pickling & Phosphating
Immersion pre-treatment providing chemical rust passivation in harsh hot-climate humidity.
Electrostatic Powder Line
Epoxy-polyester hybrid powder coating cured at 200°C for superior impact resilience.
Tensile & Deflection QA
Static load testing of beams and dynamic tensile elongation rupture tests for net fibers.
Container-Optimized Nesting & Installation Labeling
Every steel bundle and netting package is categorized, color-tagged, and strapped with moisture-barrier film to match on-site construction layout blueprints, expediting assembly upon port clearance.
Frequently Asked Questions: Global Racking & Netting Procurement
Technical answers addressing the structural, compliance, pricing, and installation inquiries of logistics directors and procurement managers.
What parameters are required to calculate the correct pallet rack net specifications?
To engineer the proper netting system, our structural team requires: (1) Total rack bay width and clear elevation height, (2) Unit pallet load dimensions (width, depth, overhang) and gross weight (typically 500 kg to 1,500 kg), (3) Smallest individual packaged SKU dimensions to size mesh aperture, (4) Transverse flue clearance, and (5) Operational environment details (cold store vs ambient warehouse).
How do synthetic nets compare to steel wire mesh backstops in seismic zones?
Under seismic excitation, rigid steel mesh panels transfer severe rotational torque and dynamic moments directly into the rack upright frames, risking bolt shear and frame buckling. High-tenacity knotless polyamide or PP nets dissipate lateral seismic ground acceleration through elastic deflection, catching loose cartons without adding dead weight to the structural steel columns.
Are your powder-coated racks and nets suitable for sub-zero cold chain facilities?
Yes. Standard polymers and steels suffer brittle transition at sub-zero temperatures. HEDA cold-storage racks utilize modified low-temperature steel chemistry and specialized elastic powder formulations resistant to micro-cracking down to -35°C. Corresponding netting uses virgin High-Tenacity Polypropylene with cold-stabilizer additives to maintain elongation resilience without shattering.
Can your layouts and nets satisfy local Civil Defense and fire authority inspections?
Yes. Every CAD drawing generated by HEDA Shelves clearly designates sprinkler clearances, exit pathways, aisle widths, and flue openings. Our netting assemblies feature verifiable flame-retardant test reports and hydraulic open-area certifications, facilitating third-party engineering reviews and insurer approvals throughout the GCC, EU, and North America.
What is the typical production lead time and export delivery capability?
Standard factory lead times for 20ft and 40ft high-cube containers run between 15 to 25 business days from final technical sign-off. We manage container bookings, documentation, and export packing from major Chinese shipping gateways directly to world ports, providing detailed tracking and customs documentation (Form E, CO, SASO, Saber).
Do you provide on-site installation guidance or remote engineering assistance?
Every shipment includes 3D exploded assembly diagrams, detailed parts lists, and bolt-torque tables. For overseas installations, we provide real-time engineer-led video support and complete step-by-step assembly guides. For large automated high-density or structural mezzanine facilities, on-site supervision engineers can be deployed on request.
Accelerate Your Storage Efficiency & Safety Compliance
Partner with China’s premier pallet racking nets and industrial storage systems manufacturer. Request tailored engineering calculations, free 2D/3D CAD warehouse layouts, and factory-direct pricing for your logistics facility.
Engineering Checklist
✓ Free 2D Architectural & 3D Modeling
✓ Customized Net Aperture & Fiber Sizing
✓ Direct Ex-Factory Tier-1 Pricing
✓ Full Container Nesting Optimization
