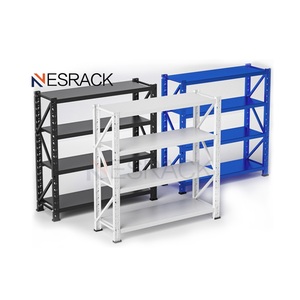

Featured Industrial Slotted Racks & Automated Storage Systems
Explore heavy-duty teardrop, slotted channel, and beam-locking systems manufactured from certified cold-rolled structural steel (Q235B/Q355B). Designed for maximum live-load integrity across automated fulfillment hubs, high-bay distribution centers, and extreme ambient industrial facilities.
Need Structural Beam Calculations & Free 2D/3D DWG Layouts?
Our senior structural engineering team prepares comprehensive seismic analyses, upright punched profiles, and bay calculations according to FEM 10.2.02, EN 15512, and RMI standards within 24 hours.
Guangzhou HEDA Shelves: 25+ Years of Export Manufacturing Excellence
Established in 2001, Guangzhou Heda Shelves Co., Ltd. operates a premier 30,000 m² heavy-machinery production complex. Supplying high-tolerance slotted pallet racking systems, structural mezzanines, and dynamic automated logistics equipment across the Middle East (UAE, KSA, Qatar, Kuwait, Oman, Bahrain), Europe, the Americas, and Southeast Asia.
Slotted Cold-Form Profile Precision
Upright columns are manufactured using continuous CNC roll-forming lines with multi-point cold bending, delivering omega (Ω) structural profiles with integrated 50mm, 75mm, or 76.2mm teardrop pitch punchings.
- Micro-tolerance punch concentricity (±0.1mm)
- High torsional stiffness preventing beam twist
- Custom steel grades: Q235B, Q355B, and SS400
Climate-Resistant Surface Engineering
Engineered for extreme GCC ambient environments (hot coastal air, high salinity, fine quartz dust) and refrigerated cold stores down to -30°C through an advanced multi-stage automated pretreatment line.
- Ultrasonic degreasing, pickling & silane/phosphate wash
- Electrostatic thermo-set epoxy polyester coating (60–90µm)
- Hot-dip galvanizing to ISO 1461 for corrosive environments
Free 3D Layout & Civil Defense Support
Comprehensive front-end engineering design (FEED). We produce CAD floor plans, 3D BIM models, and aisle safety clearances meeting local fire, civil defense, and industrial municipal codes.
- Pallet flue spaces, transverse and longitudinal safety
- Forklift turning radius & mast height optimization
- Load capacity safety plaques and calculation reports
Our Proprietary 10-Step Slotted Racking Production Line
Quality control is executed at every milestone under strict ISO 9001:2015 protocol, preventing batch discrepancies and assuring 100% mechanical consistency upon arrival at global project sites.
Technical Anatomy of Heavy-Duty Slotted Pallet Racking
A slotted pallet rack relies on cold-formed slotted upright frames connected with interlocking box beams or step beams. In global procurement, specifying the correct slotted pattern, steel thickness, and connection locking pin is critical for warehouse safety and seismic resistance.
| Racking Specification | Teardrop Slotted (US/Intl) | Diamond / Hex Slotted (EU Standard) | Heavy-Duty Omega (HEDA Heavy Spec) |
|---|---|---|---|
| Standard Vertical Pitch | 50.8 mm (2.0 Inch) | 75.0 mm or 50.0 mm | 50.0 mm / 75.0 mm Stepless Option |
| Steel Profile Structure | Open C-channel with punched holes | Multi-flanged C/Omega profile | Reinforced 9-fold Omega (Ω) continuous roll-formed |
| Connector Claw Mechanism | Pivoting pin / round gravity stud | 3-claw / 4-claw stamped steel teeth | 4-claw / 5-claw high-strength interlocking teeth with safety lock |
| Material Gauge Range | 1.5 mm – 2.5 mm (16 to 12 Gauge) | 1.8 mm – 2.8 mm | 1.8 mm – 3.2 mm (Q235B / Q355B prime coil) |
| Beam Compatibility | Step beams & roll-formed box beams | Standard welded double-C box beams | Dual-interlocking seamless box beams up to 160×50 mm |
| Maximum Frame Capacity | Up to 18,000 kg (per upright frame) | Up to 24,000 kg (per upright frame) | Up to 32,000 kg (engineered for seismic & high-bay ASRS) |
| Design Code Compliance | RMI MH16.1 / ANSI MH28.3 | EN 15512 / EN 15620 / FEM 10.2.02 | CE EN 1090-1, EN 15512, ISO 9001:2015, AS4084 |
When evaluating structural proposals, procurement directors must inspect the effective moment of inertia (Ix, Iy) of the slotted upright. Slotted perforations inevitably remove steel material; HEDA Shelves utilizes proprietary cold-forming dies that punch the slotted apertures first, followed by continuous precision progressive folding. This process induces cold-work hardening around the slot borders, compensating for the voided surface and yielding structural safety factors exceeding 1.65 under design working loads.
Future Procurement Trends in Slotted Pallet Racking Systems
The rapid scaling of modern intralogistics, supply chain regionalization, and automation drives radical updates in slotted pallet rack specifications.
1. Convergence with ASRS & Shuttle Technology
Traditional static slotted racks are increasingly procured as hybrid structures ready for automation. Uprights are pre-punched with high-precision reference holes to anchor 4-way radio shuttle guide rails, vertical tote lifts, and stacker crane tie-ins without field welding.
- Zero-welding field attachment of busbar power channels
- Deflection tolerances tightened from L/200 to L/400 for AGVs
2. Digital Twin & BIM Parametric Modeling
Enterprise buyers require full IFC and Autodesk Revit BIM models from manufacturers before placing purchase orders. Every slotted component is parametrically rendered to interface with warehouse management software (WMS) and automated fire sprinkler clash detection.
- Fast-tracked Civil Defense / NFPA 13 sprinkler approval
- Precise load plate calculations for structural concrete slabs
3. Ultra-Low-Carbon & High-Yield Microalloyed Steel
Driven by ESG and cross-border carbon border adjustment mechanisms (CBAM), procurement managers are favoring manufacturers who use low-carbon EAF steel coils and eco-friendly zirconium/silane pretreatment that eliminates toxic heavy metals.
- RoHS and REACH compliant powder formulations
- Higher yield strengths (up to 420 MPa) cutting shipping tonnage
CE, ISO 9001:2015 & RoHS Compliance
Procuring from China requires undeniable proof of metallurgical compliance, weld integrity, and dimensional consistency. HEDA Shelves components are backed by fully traceable serial-numbered certification documents for project engineering audits.
-
CE Certification (Factory Production Control) Certificate No. 2435-CPR-8605159 | Compliant with EN 1090-1 and CPR standards
-
ISO 9001:2015 Quality Management System Registration No. 18624Q00169R0M | Certified for Racking Design, Roll-Forming & Export
-
RoHS & Heavy-Metal Safety Testing Zero lead, cadmium, or chromium residues in our electrostatic cured powder layer
Frequently Asked Questions by Industrial Racking Buyers
Key technical, financial, and logistical insights for general contractors, supply chain directors, and logistics facility managers importing slotted racking from China.
What is the key difference between teardrop slotted and 75mm diamond pitch racking?
Teardrop slotted racking follows the dominant North American standard featuring a 2-inch (50.8mm) increment pitch and inverted teardrop holes that accept gravity-locking pin studs. The 75mm diamond/hexagonal pattern is the standard European/Australian profile (EN 15512 / AS 4084), utilizing multi-tooth stamped connector clips with heavy spring-steel lock pins. HEDA Shelves engineers both configurations with continuous automated punch dies.
How does HEDA prevent container transit damage and maritime corrosion during ocean freight?
Racking components face maritime salinity and high dynamic friction inside sea containers. We bundle upright frames and beams with protective corrugated corner guards, heavy-gauge plastic stretch wrap, and wooden skid blocks. Metal-to-metal strapping is separated by polyester buffer pads to protect the powder-coated layer. Bundles are labelled with QR-coded part numbers matching container loading manifests.
Can your slotted uprights interface with local Civil Defense, fire code, and ESFR sprinklers?
Yes. In high-density logistics facilities, regulatory compliance requires precise longitudinal flue spaces (typically 75mm–150mm between back-to-back rows) and transverse flue openings between pallets. Our engineering team designs row spacers, pallet backstops, and wire mesh decking that ensure unimpeded downward water penetration for Early Suppression Fast Response (ESFR) ceiling heads.
What is the standard production lead time for full container load (FCL) orders?
Standard production for standard slotted pallet racks (2 to 5 containers, 40ft HQ) is 15 to 22 business days from drawing approval and raw steel metallurgical verification. For custom RAL color coatings or hot-dip galvanized specifications, lead time ranges between 25 and 30 business days. Priority expedited roll-forming schedules can be arranged for fast-track project milestones.
Which major shipping routes and discharge ports do you support direct from Guangzhou?
Operating from our Guangzhou factory hub, we ship via Guangzhou Nansha, Shenzhen Yantian, and Hong Kong. We regularly ship to major Middle East and global ports, including Jebel Ali (UAE), Khalifa Port (Abu Dhabi), Jeddah Islamic Port & King Abdulaziz Port Dammam (Saudi Arabia), Hamad Port (Qatar), Sohar & Muscat (Oman), Shuwaikh (Kuwait), Rotterdam, Hamburg, Los Angeles, and Santos.
What data inputs are required from the client to receive an engineering calculation pack?
To deliver an accurate quote and load design, please submit: (1) Warehouse architectural drawings (CAD/PDF) showing clear heights and column locations; (2) Concrete slab thickness and compressive strength (e.g., 200mm, C25/C30); (3) Pallet dimensions (W × D × H including cargo) and maximum gross weight; (4) Forklift model, turning radius, and maximum lift height.
Transform Your Warehouse Floor Space with Certified Slotted Pallet Racking
Direct from our 30,000 m² Guangzhou production facility. Receive professional 2D floor plans, 3D structural visual renders, and engineering load estimates within 24 hours.
