Featured Industrial Warehouse Racking Systems
Standard-conforming, high-tensile structural steel racking units manufactured under ISO 9001:2015 and CE certification. Fully customizable footprint configurations engineered for high static rigidity, seismic elasticity, and optimal volumetric space utilization.
Heavy Duty Shuttle Rack Automated Pallet System
Deep-lane radio shuttle platform designed for intensive cold storage, food processing, and high-throughput distribution hubs. Eliminates lift-truck entry into storage lanes to maximize safety.
Stacking Heavy Duty Pallet Rack Gravity Racking
Self-braking roller tracks deliver strict first-in, first-out stock rotation for perishable consumables, FMCG, and high-speed picking corridors. Features heavy powder coat rust prevention.
Bulk Custom Metal Wire Storage Rack Unit
Zinc-plated or electro-deposited mesh shelving tailored for loose inventory, retail logistics, and commercial kitchenware distributors. Exceptional fire sprinkler pass-through compliance.

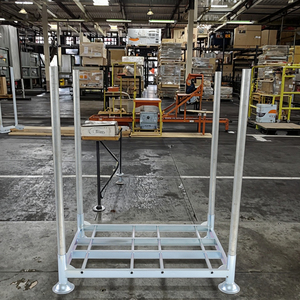

Galvanized Demountable Stacking Post Rack
Demountable post frames built for seasonal surge storage, outdoor freight yards, and harsh agricultural environments. Fully nestable footprint when disassembled to cut return freight costs.
Industrial Pallet Rack Storage Shelving System
Heavy structural box-beam selective racking engineered with Q235B cold-rolled profiles. Provides unhindered 100% selectivity to every pallet position for comprehensive SKU mix management.

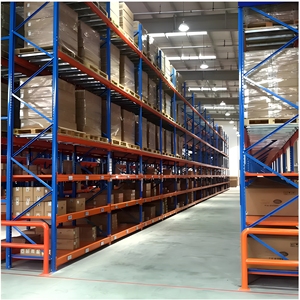

Heavy Duty Storage Racking 1t-3t Per Layer
Reinforced cold-formed upright profiles engineered for ultra-dense deadloads up to 3000kg per beam tier. Designed for heavy machinery casting storage, raw metal inventory, and coil pallets.
Medium Duty Warehouse Powder-Coated Rack
Cost-efficient intermediate racking for light manufacturing, wholesale retail backrooms, and automotive spare parts. Accommodates both hand-loaded cartons and light pallet staging.
Adjustable Steel Warehouse Pallet Racking
Precision-punched teardrop and omega slot patterns allow rapid tool-less beam adjustment on 50mm increments. Interlocking security pins ensure absolute structural lock under high fork truck impact.
Guangzhou HEDA Shelves: Tier-1 Production Prowess
Established in 2001, Guangzhou HEDA Shelves Co., Ltd. operates as a vertically integrated engineering and manufacturing enterprise. Unlike trading intermediaries, we govern every metallurgical, roll-forming, and surface-finishing parameter under rigorous ISO 9001:2015 quality assurance.
Certified Metallurgy
Exclusive application of certified prime Q235B and Q355B structural steel coils. Mill test certificates confirm yield strengths surpassing 235-355 MPa, ensuring complete compliance with European Standard EN 15512 and American RMI MH16.1 specifications.
Complimentary 3D & CAD
Our internal team of 300+ engineering specialists delivers detailed AutoCAD layouts, structural capacity calculations, and 3D realistic renderings within 24-48 hours, fully optimized for your building column grids, forklift aisle turn radiuses, and local safety codes.
9-Stage Chemical Pretreatment
Automated dip tanks provide complete degreasing, rust pickling, phosphating, and deionized water rinsing before electrostatic powder application. Cured at 200°C for exceptional resistance to blistering, high humidity, desert dust abrasion, and saline corrosion.
Verifiable Compliance
Certified under CE Certificate No. 2435-CPR-8605159, ISO 9001:2015 Registration No. 18624Q00169R0M (valid through 2027), and RoHS non-toxic finishes. Full documentation packages prepared for municipal Civil Defense and property underwriter inspections.
In-House 10-Step Quality Assurance Cycle
Every upright post, step beam, diagonal brace, and footplate follows an audited, repeatable cycle in our Guangzhou manufacturing complex to guarantee structural consistency across multi-thousand ton deployments.
Spectrometric Testing
Incoming steel coil chemistry verification and ultrasound thickness gauging.
Precision Slitting
High-speed CNC slitting lines trim master coils to micrometer profile tolerances.
CNC Column Punching
Automated continuous punch matrices generate 50mm/75mm slot pitches with zero skew.
28-Station Roll Forming
Cold roll-forming lines progressively fold omega upright profiles without tensile stress.
Box-Beam Seaming
Twin C-channel continuous interlock welding produces reinforced tubular step beams.
Robotic Connector Weld
Dual-torch robotic arm GMAW welding connects heavy 3-claw/4-claw beam end connectors.
Chemical Phosphating
Immersion acid cleaning eliminates micro-scale oxidation for superior coating bond.
Electrostatic Powder
Reciprocating spray guns apply 70-90μm pure polyester epoxy powder finish.
Infrared Oven Curing
200°C continuous tunnel oven cross-links polymer chains for impact and scratch resistance.
Export Container Stowing
Protective foam wrapping and steel strapping sequenced to match site assembly drawings.
Structural Capacity & System Compatibility Matrix
Standard industrial warehousing designs compared across volumetric density, operational access speeds, structural footprint, and required capital deployment parameters.
| Storage Methodology | Pallet Selectivity | Volumetric Density | Load Rating (Per Tier) | Required Aisle Width | Inventory Rotation |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate Direct Access | Moderate (35-40% Floor Area) | 1,000 kg – 4,500 kg | 3,000 mm – 3,500 mm (Counterbalance) | FIFO / LIFO Arbitrary |
| Drive-In / Drive-Through | Low (Batch SKU Storage) | High (Up to 75% Floor Area) | 800 kg – 1,500 kg | Internal Drive Lanes (Forklift within rack) | Strict LIFO (Drive-In) / FIFO (Drive-Thru) |
| Radio Shuttle Automation | High within Dedicated Lanes | Maximum (Up to 85% Density) | 500 kg – 1,800 kg | 2,800 mm – 3,200 mm (Buffer lane only) | Software Switchable (FIFO / LIFO) |
| Gravity Pallet Flow | High at Picking Face | Very High (Multi-Deep Gravity) | 500 kg – 1,200 kg | Dedicated Loading & Retrieval Aisles | Strict FIFO (Gravity Roller Incline) |
| Heavy Cantilever Racking | 100% Linear Unimpeded | Tailored for Long/Bulky Goods | 1,000 kg – 3,000 kg per Arm | Variable (Depends on Material Length) | FIFO / LIFO Direct Retrieval |
| Multi-Tier Mezzanine Rack | 100% Hand-Picking Selectivity | Multiplies Floor Space 200-300% | 300 kg – 1,000 kg / m² | 900 mm – 1,200 mm (Walkway Picking) | Dynamic Manual Pick Zones |
Global Racking Procurement: Emerging Buyer Trends for 2026–2030
Procurement directors and third-party logistics (3PL) infrastructure executives have shifted evaluation criteria from raw initial capital expenditure (CapEx) to multi-decade Total Cost of Ownership (TCO). In the contemporary macro-environment, structural resilience, climate durability, and nearshoring elasticity outweigh low-cost, substandard fabrications.
1. The Shift to High-Tensile Thin-Wall Alloys
Advanced roll-forming allows higher structural yield strength (Q355B / S355MC) with optimized profiles. This slashes tare dead-weight on warehouse concrete slabs while boosting impact tolerance and seismic ductility under severe ground-acceleration events.
2. ESG & Low-VOC Closed-Loop Finishing
Global corporate governance demands audited carbon trails. HEDA utilizes 100% recyclable powder coatings that eliminate toxic solvents and volatile organic compounds (VOCs), alongside water recovery cycles within our 9-stage phosphating lines.
3. Nearshore Buffer Warehousing in the GCC
Driven by Saudi Vision 2030 and UAE mega-logistics corridors, global enterprises are securing factory-direct Chinese supply lines delivering containerized, knocked-down pallet rack kits optimized for Jebel Ali, Dammam, and Jeddah ports.
Warehousing Technology & Structural Development Trends
Static steel racks are rapidly transforming into active cyber-physical storage systems. Discover the technical advances redefining modern distribution center architectures worldwide.
ASRS & Shuttle Hybridization
The boundary between traditional pallet racks and automated systems is dissolving. High-density shuttle racks now interface directly with vertical reciprocating conveyors (VRCs) and Autonomous Mobile Robots (AMRs), yielding lights-out facilities capable of 24/7 autonomous dispatch.
Sub-Zero Cold Chain Optimization
Thermal energy costs in blast freezers (-30°C) make floor space exceptionally expensive. Ultra-dense radio shuttle arrays cut cold-room volume by up to 50% per pallet stored, utilizing structural steels specially alloyed to prevent low-temperature ductile-to-brittle transitions.
Rack-Supported Building Enclosures
Eliminating traditional structural building columns, rack-clad warehouse systems utilize the high-strength racking framework itself to support roof trusses and exterior wall cladding. This cuts construction schedules by 25-35% and dramatically maximizes clear interior clearances.
Frequently Asked Technical Questions by Logistics Engineers
Authoritative guidance addressing regulatory compliance, engineering tolerances, civil engineering requirements, and export logistics.
Q1 How are load deflection tolerances calculated for selective rack beams?
Under international standards EN 15512 and RMI MH16.1, maximum vertical deflection of any pallet rack beam under design load must not exceed L/200 (where L is the clear span distance between upright columns). For example, a 2700mm beam carrying two 1000kg pallets is engineered to exhibit less than 13.5mm deflection under maximum static deadload, with a structural safety factor of $\gamma_m \ge 1.4$.
Q2 What floor slab flatness and soil bearing capacity are necessary?
Standard counterbalanced forklift installations require concrete slab tolerances complying with DIN 18202 Group 3 or ASTM E1155 ($F_F 25 / F_L 20$). For Very Narrow Aisle (VNA) reaching heights above 10 meters, high-tolerance Category 1 slabs (TR34 Superflat or DIN 18202 Table 3 Line 4) are strictly required to avoid mast swaying and upright column collisions.
Q3 How does HEDA ensure corrosion protection for humid or coastal locations?
For high-humidity climates like Dubai, Jeddah, or Singapore, we utilize an audited 9-stage zinc phosphate immersion line followed by thermosetting electrostatic polyester powder coat (70-90 μm thickness). When subjected to ASTM B117 salt spray tests, our coatings achieve 500+ hours without under-film creep. For open yards or severe chemical immersion, hot-dip galvanizing per ISO 1461 is available.
Q4 How do racking designs accommodate Civil Defense and fire sprinkler clearance?
We configure flue spaces to meet NFPA 13 standards and regional Civil Defense authority regulations. Transverse flue spaces (minimum 75mm between pallets) and longitudinal flue spaces (minimum 150mm between back-to-back runs) are maintained. Furthermore, open wire mesh decking with $>70\%$ open area ensures uninhibited sprinkler water penetration through multi-tier levels.
Q5 What primary information is required to generate a complimentary 3D layout?
To produce an approved 2D CAD architectural plan and 3D rendering within 24 hours, our engineering office requires: (1) Warehouse building CAD drawings indicating clear height under roof joists and column grids; (2) Pallet dimensions (W × D × H) including product overhang; (3) Maximum weight per pallet; (4) Forklift model, turning radius, and maximum mast reach; (5) Required total pallet capacity.
Q6 How are international export shipments packaged to prevent maritime damage?
Upright frames and step beams are bundled into structural steel transport bases, separated by high-density polyethylene (HDPE) buffers, bubble wrap, and heavy-gauge corrugated edge-protectors. Bundles are bound with tensile PET strapping and numbered to cross-reference the accompanying project site assembly drawings, ensuring rapid, zero-error customs clearance and onsite sorting.
Transform Your Warehouse Volumetric Efficiency Today
Connect directly with HEDA Shelves' lead structural engineers. Whether you need selective racking for a new 10,000 m² distribution hub or an automated high-density shuttle system for cold storage, our factory-direct pricing and certified engineering guarantee maximum return on capital investment.
