Heavy-Duty Warehouse Storage & Live Pallet Racking Systems
Direct from Guangzhou Heda Shelves Co., Ltd.'s 30,000 m² smart manufacturing base. Fully certified with CE, ISO 9001:2015, and tailored for Vietnamese industrial logistics standards under Form E zero-tariff export protocols.
1000 kg Per Layer Heavy Duty Pallet Rack for Warehouse Cold Storage
- 1,000 kg/layer capacity rating
- Sub-zero (-28°C) cryogenic coating
- High-density seafood & fruit logistics
Heavy Duty 5 Layer Outdoor Galvanized Metal Pallet Shuttle Rack
- Hot-dip galvanized anti-corrosion
- High-density radio shuttle compatibility
- 5-tier adjustable deep-lane channel

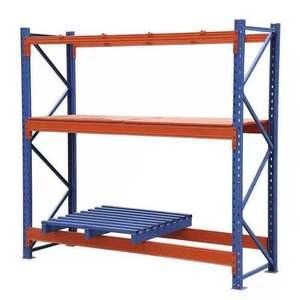

Adjustable Heavy Duty Pallet Racking System for Warehouses
- Up to 4,000 kg beam load rating
- 50mm/75mm adjustable connector pitch
- Compatible with reach trucks & counterbalanced
Medium Duty Longspan Warehouse Shelves 4 Layers 400kg Load
- 2400 x 600 x 2200 mm standardized bays
- 400 kg load capacity per level
- E-commerce & electronic assembly bins
Medium Duty Fall-Free Metal Rack with Free 3D CAD Design
- Fall-free edge safety guard structure
- FMCG sorting & dry condiment stores
- Modular floor-node interlocking design
Heavy-Duty Steel Adjustable Cantilever Storage Rack
- Single/double-sided arm configurations
- Structural steel column (up to 3,000 kg/arm)
- Ideal for Vietnamese aluminum & timber
Medium Duty 6 Layer Steel Wire Shelving Storage Rack
- Open-mesh design for air circulation
- Tropical humidity rust-proof chrome finish
- PCCC fire sprinkler penetration compliant
Standard Certified Heavy Duty Steel Warehouse Racking System
- CE (No. 2435-CPR-8605159) verified
- Continuous omega roll-formed uprights
- Seismic resistance calculation for Vietnam
The Strategic Imperative for Live Pallet Racking in Vietnam’s Modernizing Industrial Hubs
Vietnam has consolidated its position as Southeast Asia's epicentre for advanced electronic assembly, agricultural export processing, and high-velocity third-party logistics (3PL). Driven by extensive Foreign Direct Investment (FDI) inflows across the Northern corridor (Bac Ninh, Bac Giang, Hai Phong, Ha Nam) and the Southern economic zones (Binh Duong, Dong Nai, Long An, and Ho Chi Minh City), warehouse footprint values have escalated dramatically. Contemporary industrial park rental rates in prime logistical corridors have surged to between $4.80 and $7.20 per square metre monthly. Under this economic reality, conventional static selective pallet racking—where wide forklift operating aisles consume in excess of 60% of total interior warehouse cubic volume—is no longer mathematically viable for high-throughput enterprises.
Live Pallet Racking systems (commonly designated in the Vietnamese industrial market as Kệ Con Lăn Trọng Lực or Gravity Flow Pallet Racking) represent the apex of dynamic, unpowered high-density intralogistics. By eliminating intermediate handling aisles and consolidating storage lanes into continuous, gravity-driven roller inclined beds, live pallet racking increases floor space volumetric efficiency by up to 85% compared to conventional static configurations.
Information Gain: The Mechanical Physics of Live Gravity Flow Racking
Live pallet racking harnesses structural steel channels mounted with precision-engineered steel or polyurethane-coated roller tracks inclined at a calibrated slope of 3.0% to 4.5% (approximately 1.7° to 2.5°). Pallets are deposited into the entry charge face, rolling downward under gravitational acceleration toward the retrieval discharge face. Centrifugal brake rollers spaced along the lane govern dynamic pallet descent speeds at an optimal 0.20 to 0.30 m/s, preventing kinetic impact spikes. At the pick face, a mechanical separation device detaches the leading pallet from trailing line pressure, safeguarding forklift extraction operations.
Structural & Operational Comparison Matrix for Vietnamese Warehouses
| Storage Technology | Space Density | Stock Rotation Rule | Pallet Picking Velocity | Aisle Requirements | CapEx vs OpEx Index | Vietnam Market Best-Fit |
|---|---|---|---|---|---|---|
| Live Pallet Racking (Gravity Flow) | Up to 85% | Strict FIFO (First-In, First-Out) | Ultra-High (Dedicated Aisles) | 2 Aisles Only (1 Load / 1 Pick) | Medium CapEx / Zero Energy OpEx | FMCG, Cold Rooms, Fruit/Seafood Exporters |
| Selective Pallet Racking | 35% – 45% | Flexible FIFO / LIFO | Moderate (Aisle Conflicts) | 1 Aisle per 2 Racks (3.2–3.8m) | Low CapEx / High Real Estate OpEx | General Multi-SKU Spare Parts, Low SKU Counts |
| Radio Shuttle Cart Racking | 75% – 82% | FIFO or LIFO (Semi-Auto) | High (Machine Dependent) | 1–2 Operating Aisles | High CapEx / Battery & Sensor OpEx | Mega Cold Stores with Uniform SKUs |
| Drive-In Pallet Racking | 65% – 75% | Strict LIFO (Last-In, First-Out) | Low (Forklift Enters Lanes) | 1 Shared Entry/Exit Aisle | Low CapEx / High Rack Damage Risk | Raw Material Buffers, Seasonal Holding |
| Push-Back Trolley Racking | 65% – 70% | Strict LIFO (Last-In, First-Out) | Moderate (2–6 Pallets Deep) | Single Front Aisle | Medium CapEx / Low Maintenance | Intermediate Manufacturing Buffers |
Application Scenarios Across Vietnam’s Key Industrial Corridors
Our live pallet racking systems are precision-calibrated to solve regional supply chain bottlenecks across Vietnam’s distinct climatic, geographic, and economic hubs.
Mekong Delta & Southern Cold Storage Ports
Southern hubs such as Long An, Can Tho, and Cat Lai logistics clusters handle enormous export volumes of pangasius, black tiger shrimp, and tropical fruits. Operating deep-freeze warehouses at -18°C to -25°C incurs tremendous electricity costs. HEDA's live pallet racking compacts cold volume requirements by 55%, using specialized cryogenic roller bearing lubricants (-35°C rated) and cold-rolled hot-dip galvanized steel components resistant to moisture condensation and thermal shock.
Northern Electronics & SMT Assembly Hubs
In the mega-clusters of Bac Ninh (Yen Phong, Que Vo), Bac Giang (Van Trung, Dinh Tram), and Hai Phong (DEEP C, VSIP Hai Phong), tier-1 electronic suppliers require immaculate, automated staging for high-value components. Live gravity pallet systems provide zero-touch FIFO buffering between cleanroom production exits and outbound shipping docks, complete with conductive ESD-safe roller wheels and mechanical dampers preventing shock-induced PCB damage.
Greater HCMC & Binh Duong Fast-Moving FMCG
Serving Vietnam's largest consumer market, food and beverage distributors in Binh Duong (Song Than, VSIP I/II) and Dong Nai (Amata, Bien Hoa) face strict product expiry dates (Date Code rotation). Live pallet racking delivers 100% foolproof FIFO rotation. Pallet operators load replenishment stock in aisle A while picking teams simultaneously extract the earliest batches in aisle B without forklift collisions or traffic bottlenecks.
Engineered to Withstand Vietnam's Tropical Monsoon & Coastal Salinity
A critical failure mode of imported industrial racking in Vietnam is surface breakdown and internal beam oxidation induced by the country's severe tropical climate. In regions such as Hai Phong, Da Nang, and the Southern maritime corridors, ambient relative humidity frequently exceeds 85% to 90%, exacerbated by airborne saline mists and high seasonal temperatures surpassing 40°C.
Guangzhou Heda Shelves Co., Ltd. resolves this structural degradation through an exhaustive, automated 10-Stage Surface Treatment and Dual Pre-Treatment Chemical Conversion Process. Upright columns and box beams undergo rigorous ultrasonic degreasing, hot acid pickling to eliminate all mill scale, dual-stage zinc-iron phosphating, and deionized water rinsing before electrostatic powder application. The dry film thickness (DFT) is precisely maintained at 70–90 microns using premium non-TGIC pure polyester resins cured at 200°C. For unconditioned port facilities, outdoor staging yards, and chemical processing zones, our hot-dip galvanization process conforms strictly to ASTM A123 / ISO 1461 standards, delivering a zinc barrier coating in excess of 65 microns that provides decades of cathodic corrosion protection.
Why Vietnamese Industry Leaders Source Directly from HEDA Shelves
Certified Compliance
Fully compliant with international racking codes including European EN 15512:2020, FEM 10.2.02, and American RMI specifications. Valid CE Marking (Certificate No. 2435-CPR-8605159) and ISO 9001:2015 certification (No. 18624Q00169R0M, valid to 2027).
Form E Duty Exemption
Under the ASEAN-China Free Trade Agreement (ACFTA), all HEDA structural steel warehouse racks are eligible for official Form E Certificate of Origin issuances, entitling Vietnamese importers to 0% preferential customs import duties.
Rapid Regional Logistics
Strategically situated in Guangzhou, China. Container shipments reach Hai Phong Port within 3 to 4 days, and Cat Lai Port (HCMC) within 5 to 7 days. Critical overland cross-border trucking via the Friendship Pass (Huu Nghi Quan) provides delivery within 48 hours.
Free 2D/3D CAD Engineering
Our 30+ senior structural engineers provide complimentary 2D CAD floor plans, dynamic 3D BIM simulations, load stress calculations, and Vietnamese PCCC fire safety compliance consulting before production commences.
Our 10-Step Quality Assurance Production Workflow
From prime hot-rolled steel coils to containerized sea-freight dispatch, our vertically integrated plant in Guangzhou enforces strict dimensional tolerances and metallurgy standards.
Raw Steel Testing
High-tensile Q235B and Q355B certified structural steel coils sourced from Baosteel with 100% mill chemical & yield certificates.
Precision CNC Slitting
Computerized automated uncoiling and precision slitting to micro-tolerances (±0.1mm) avoiding structural edge burrs.
Automated Punching
Multi-station automated hydraulic punch presses form teardrop/butterfly pitch holes at precise 50mm or 75mm increments.
Cold Roll-Forming
12 to 18 continuous rolling stations form complex omega upright sections ensuring peak torsional and axial rigidity.
Beam Profile Forming
Roll-forming dual-C interlocking interlocking box beams and step beams with integrated structural safety connector hooks.
Robotic Weld Fusion
Panasonic robotic welding stations perform continuous carbon dioxide shielded welding for high-integrity connector joints.
Surface Shot Blasting
Automated mechanical shot blasting achieves an Sa 2.5 clean surface roughness, maximizing coating adhesion parameters.
Pickling & Phosphating
Complete 10-tank chemical immersion sequence generating dense zinc-phosphate crystal layers protecting against corrosion.
Electrostatic Powder
Swiss Gema automated powder guns spray high-durability epoxy-polyester coatings, oven-cured at 200°C for superior abrasion defense.
QC & Ocean Bundling
Component barcode tagging, digital laser deflection testing, steel strapping, and moisture-barrier shrink-wrapping for container shipment.
Frequently Asked Questions by Vietnamese Procurement Managers
Clear answers addressing technical standards, import customs, structural safety, and operational maintenance for warehouse managers across Vietnam.
How do HEDA racking systems qualify for 0% import duty into Vietnam?
How does Live Pallet Racking ensure controlled pallet braking for different pallet weights?
Can HEDA designs comply with Vietnamese Fire Department (Cục Cảnh sát PCCC) regulations?
What floor slab structural specifications are needed for heavy-duty racking?
How do your roller beds hold up in cold storage environments?
What is the typical production and shipping timeline from Guangzhou to Vietnam?
Do you offer on-site installation guidance or turnkey installation in Vietnam?
What pallet standards are supported by HEDA live pallet racking?
Transform Your Warehouse Density in Vietnam
Send your warehouse architectural CAD drawings, pallet dimensions, SKU turn velocities, and clear ceiling heights to our engineering team today. Receive a comprehensive 2D CAD layout, 3D rendering, and Form E zero-tariff factory quotation within 24 hours.
