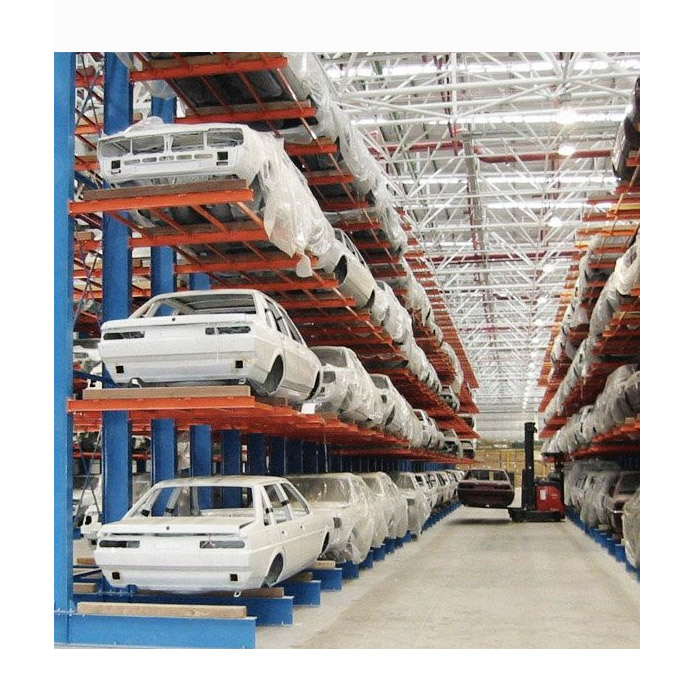

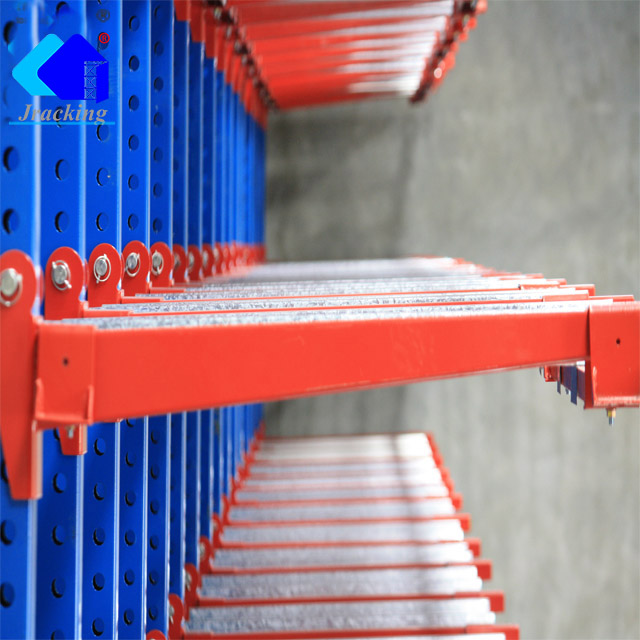

Jracking CE Certified Industrial Shelving Warehouse Racks Heavy-Duty Cantilever Racking System for Car Storage
Product Description
Product Specifications
| Name | Cantilever Racking | Material | Q235B Steel |
| Size | Customized Size | Color | Customized Color |
| Depth | Customized | Weight Capacity | 1000kg / arm |
| Width | Customized | Height | Customized |
| Finish | Powder coating; Hot Dip Galvanized | ||
| Packing | Export Package | ||
| Certification | RMI / CE / ISO / TUV / AS4084-2012 | ||
| MOQ | One 20ft / 40ft Container | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||

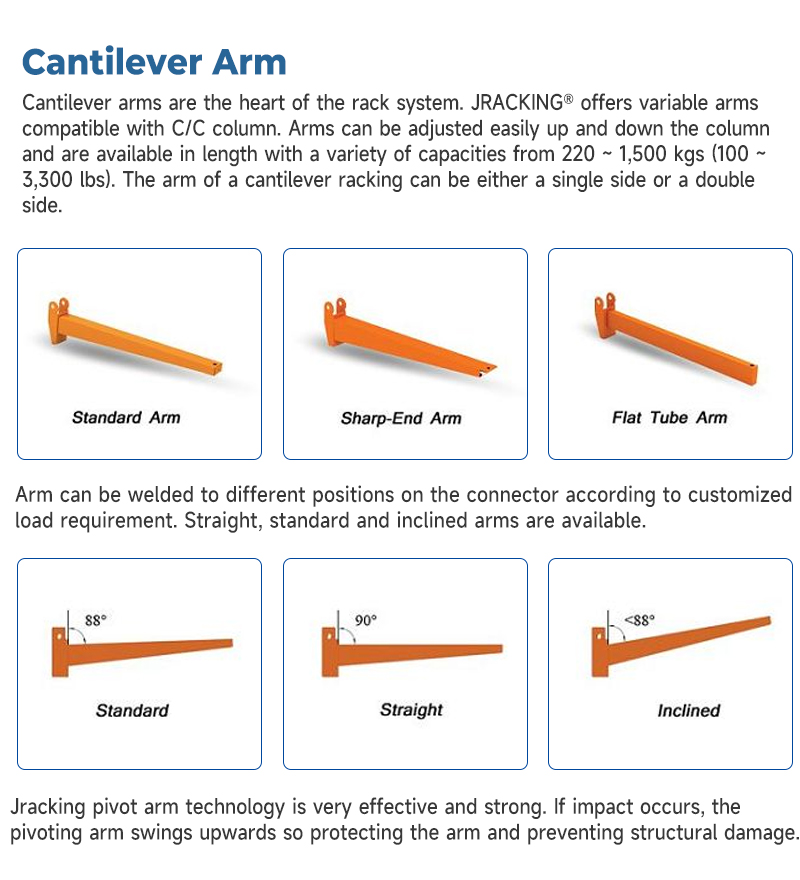

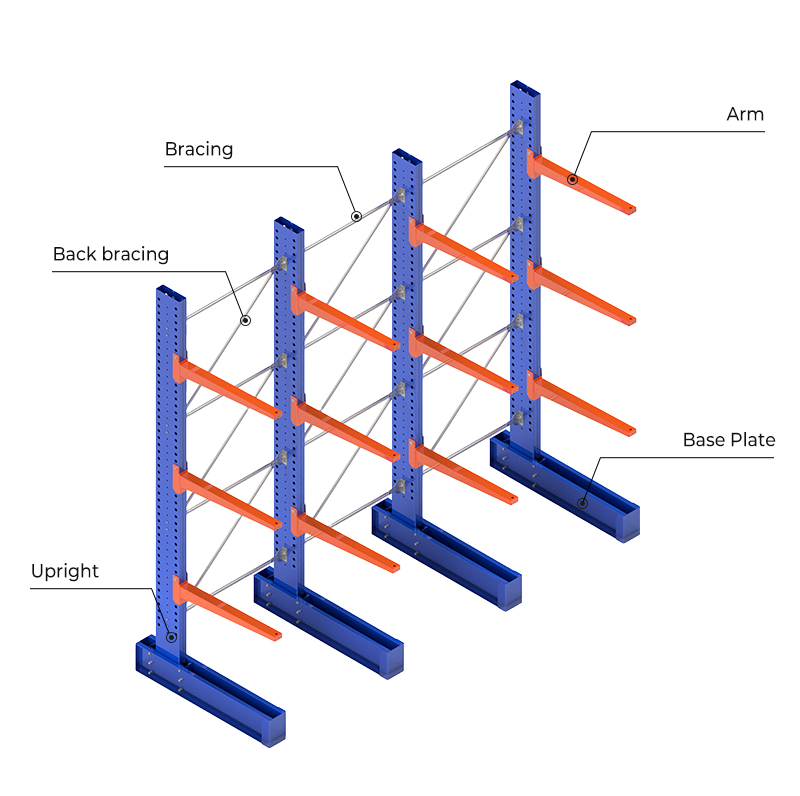

Component Highlights
Installation Instructions

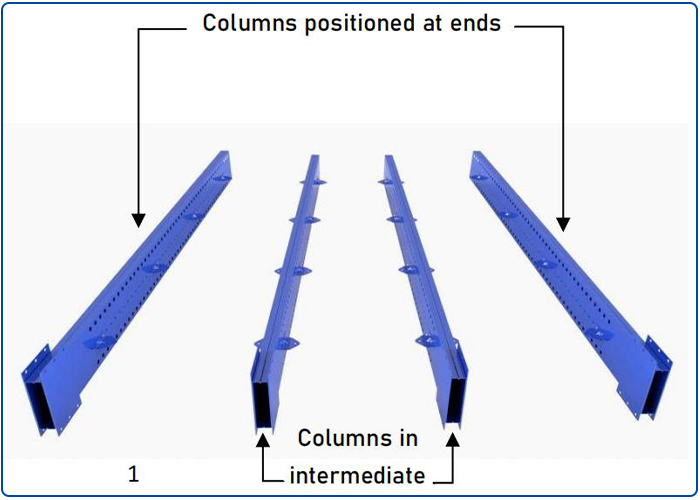

Step 1
Connect 1 row of MK bracing brackets at the inside of columns positioned at ends, meanwhile connect 2 rows of brackets at both sides of columns in intermediate, as shown.

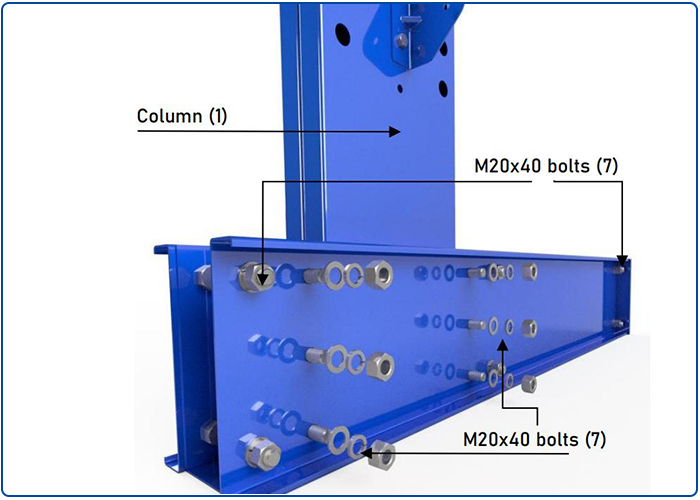

Step 2
Position the column (1) vertically. Position the column (1) into the fixing MK base, as shown. Connect the column and the base with M20x40 bolts (7). Fasten the other M20x40 bolts (7) on the base. Recommended torque: 86~103 N·M.

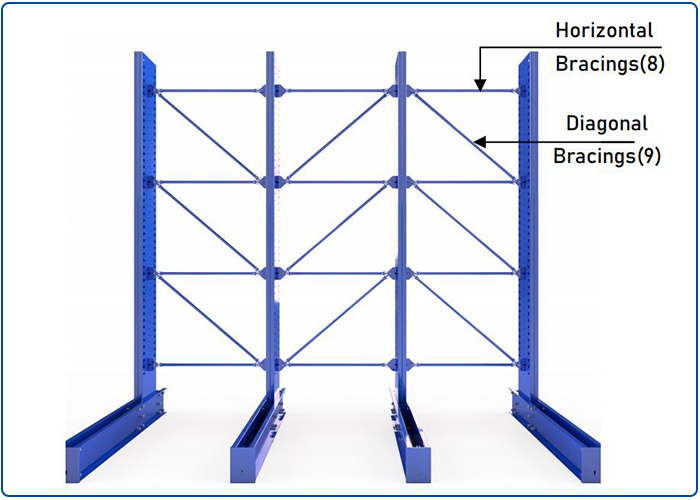

Step 3
The standard composition of the vertical bracing, after it has been fastened to the columns, is as shown in the illustration.

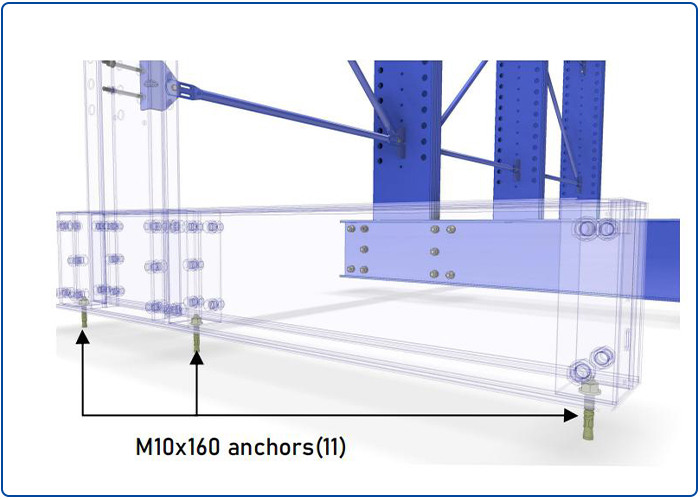

Step 4
The bases must be leveled with metal leveling plates if necessary. Then, fully tighten the M20x40 bolts (7) on the base front as indicated in Step 2. Using the drill-holes in the bases for fastening to the floor, use a Ø14 bit and drill a hole with a minimum depth of 100 mm. Remove the drilling debris and carefully hammer in the fastening M10x160 anchors (11). Firmly bolt the fastening plate in place. Recommended torque: 50 N·M.

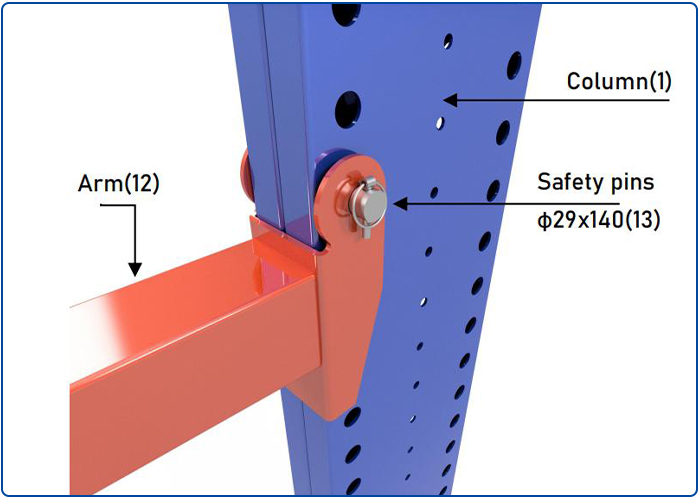

Step 5
The arm (12) is fastened to the column (1) using safety pins Ø29x140 (13). Fit the arms according to the heights and distribution shown on the corresponding project drawing, where applicable.

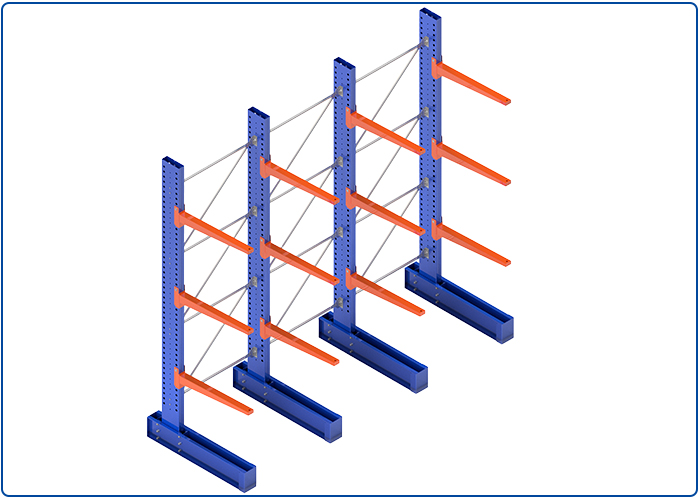

Step 6
Finally, the completed structure should look like the illustration.

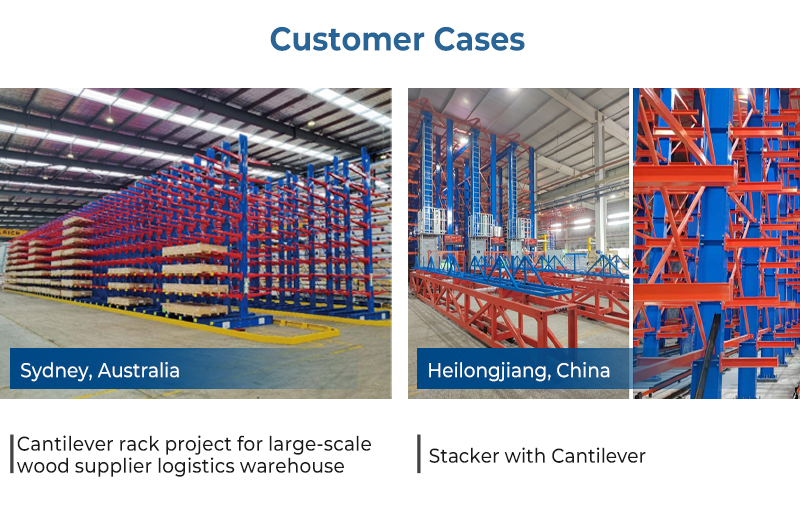

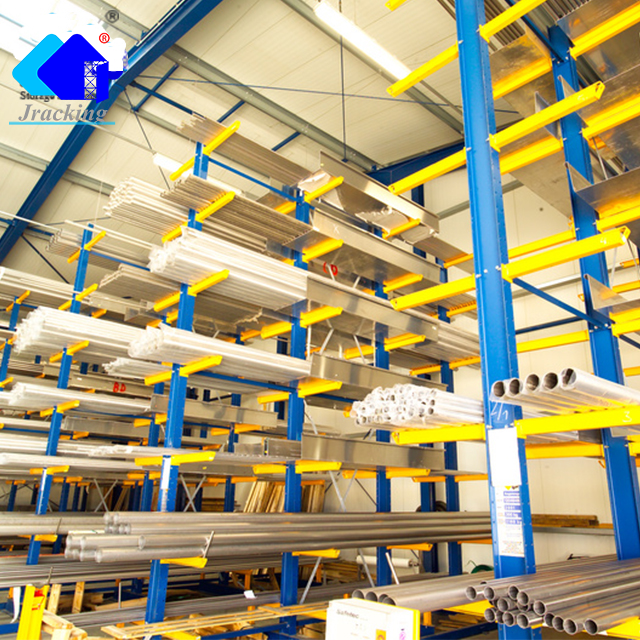

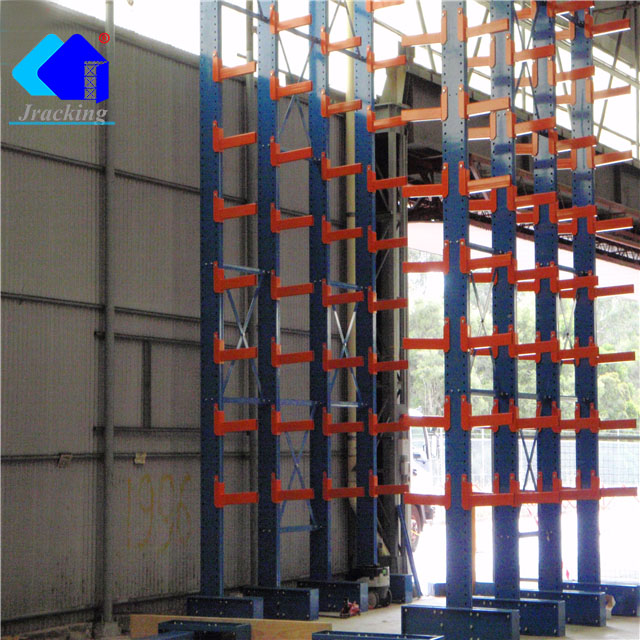

Project Gallery & Capabilities
Frequently Asked Questions
Q
What are your trading terms?
1) Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. L/C and O/A are also available.
2) Lead time: Normally in 20-25 days after deposit received.
3) Sample policy: Samples are always available for each model and can be ready in 7-15 days once payment is received.
4) Shipping port: Shanghai / Nanjing, China.
5) Discounts: We offer attractive discounts for large volume orders.
2) Lead time: Normally in 20-25 days after deposit received.
3) Sample policy: Samples are always available for each model and can be ready in 7-15 days once payment is received.
4) Shipping port: Shanghai / Nanjing, China.
5) Discounts: We offer attractive discounts for large volume orders.
Q
How can my goods be delivered?
1) Sea freight: We will update freight rates once we know your destination seaport.
2) Designated freight forwarder: Please provide contact details for your shipping agent, and we will coordinate delivery accordingly.
2) Designated freight forwarder: Please provide contact details for your shipping agent, and we will coordinate delivery accordingly.
Q
What services do you provide?
1) Inquiries related to our products or prices will be answered within 12 hours.
2) Well-trained and experienced staff to address all inquiries in fluent English.
3) Full OEM & ODM support; we assist in custom designing racking systems.
4) Experienced professional engineers dedicated to delivering the best storage solutions.
2) Well-trained and experienced staff to address all inquiries in fluent English.
3) Full OEM & ODM support; we assist in custom designing racking systems.
4) Experienced professional engineers dedicated to delivering the best storage solutions.
Q
What is the purchase process?
Design Drawing → Confirm Drawing → Quotation → Proforma Invoice (PI) → Confirm PI → Arrange 30% Deposit → Manufacture → QC Inspection → Pay Balance → Shipping.
Q
What are your competitive advantages?
1) Flexible Payment: O/A 40-60 days available.
2) Short Lead Time: Fast-track options for rush orders.
3) Factory Price: Direct factory sales ensure competitive pricing.
4) Warranty: Two-year warranty with free replacement of damaged components.
2) Short Lead Time: Fast-track options for rush orders.
3) Factory Price: Direct factory sales ensure competitive pricing.
4) Warranty: Two-year warranty with free replacement of damaged components.
Q
Do you have an MOQ requirement and how are tooling fees handled?
• MOQ: Jracking has no strict MOQ limit, but higher order volumes secure better pricing. We recommend at least one 20ft container (approx. 15 tons) for standard products.
• Tooling Fee: If a new mold is required, tooling costs are charged before the first production run and are partially or fully refunded once orders reach a designated quantity.
• Tooling Fee: If a new mold is required, tooling costs are charged before the first production run and are partially or fully refunded once orders reach a designated quantity.
