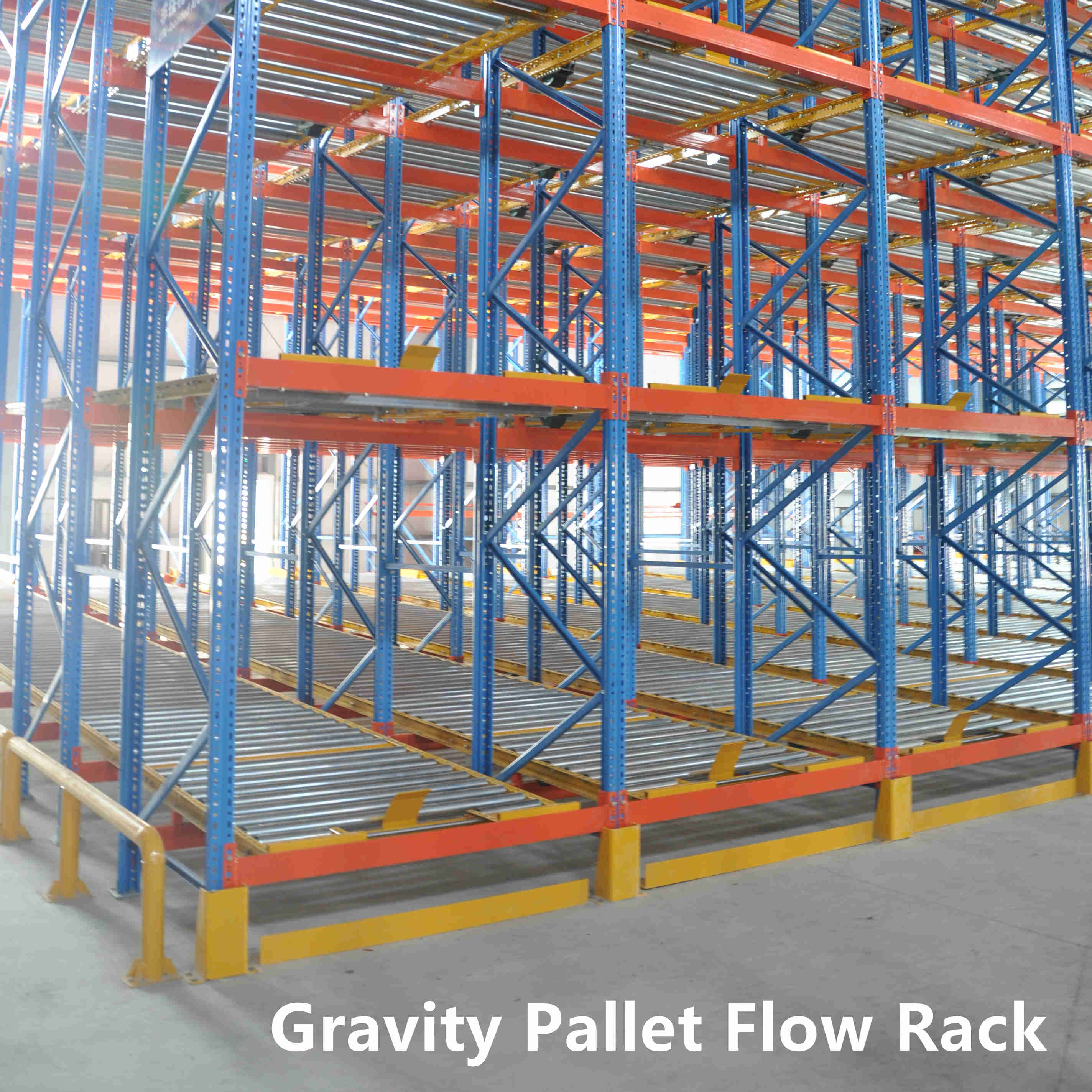

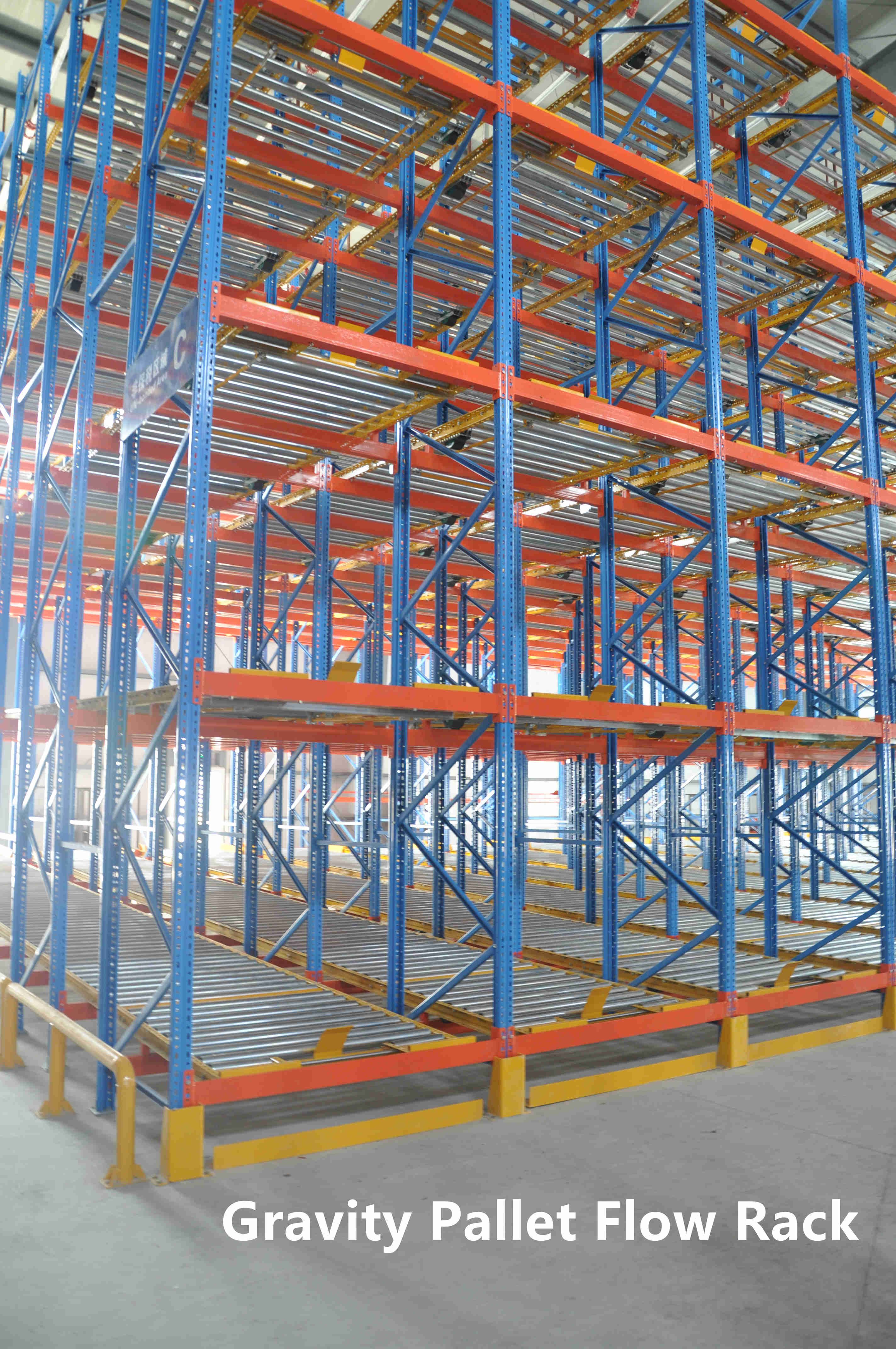

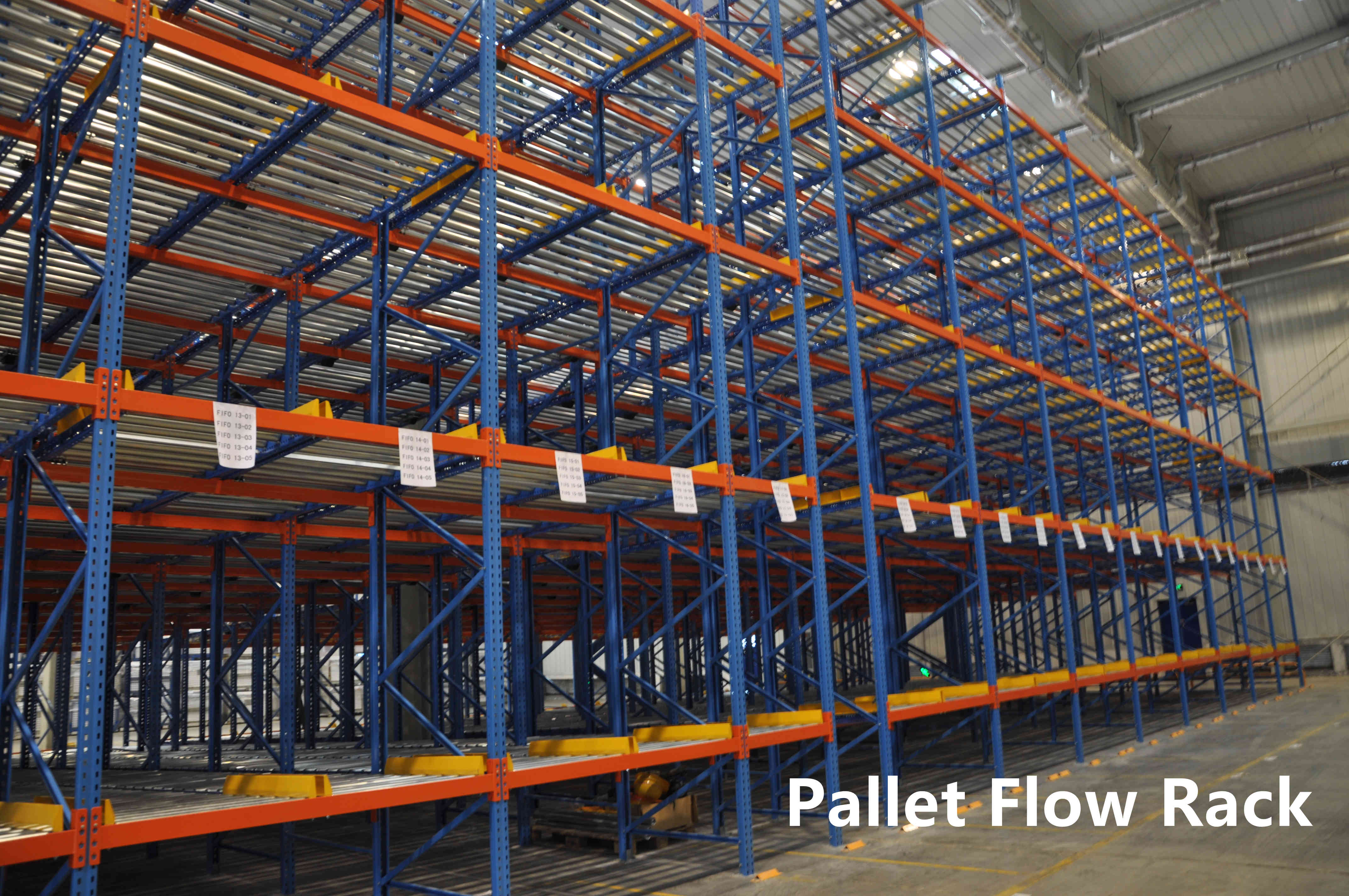

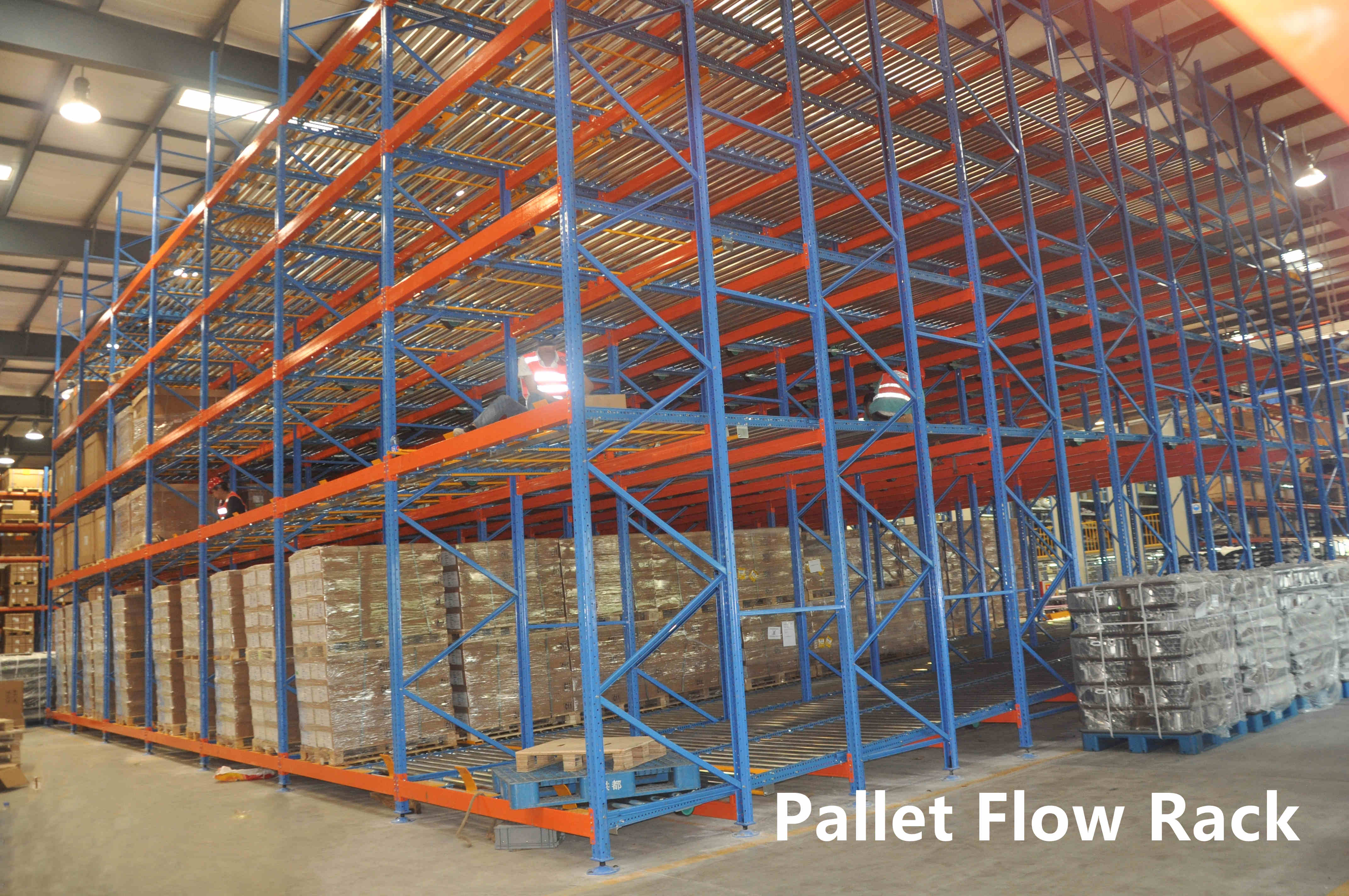

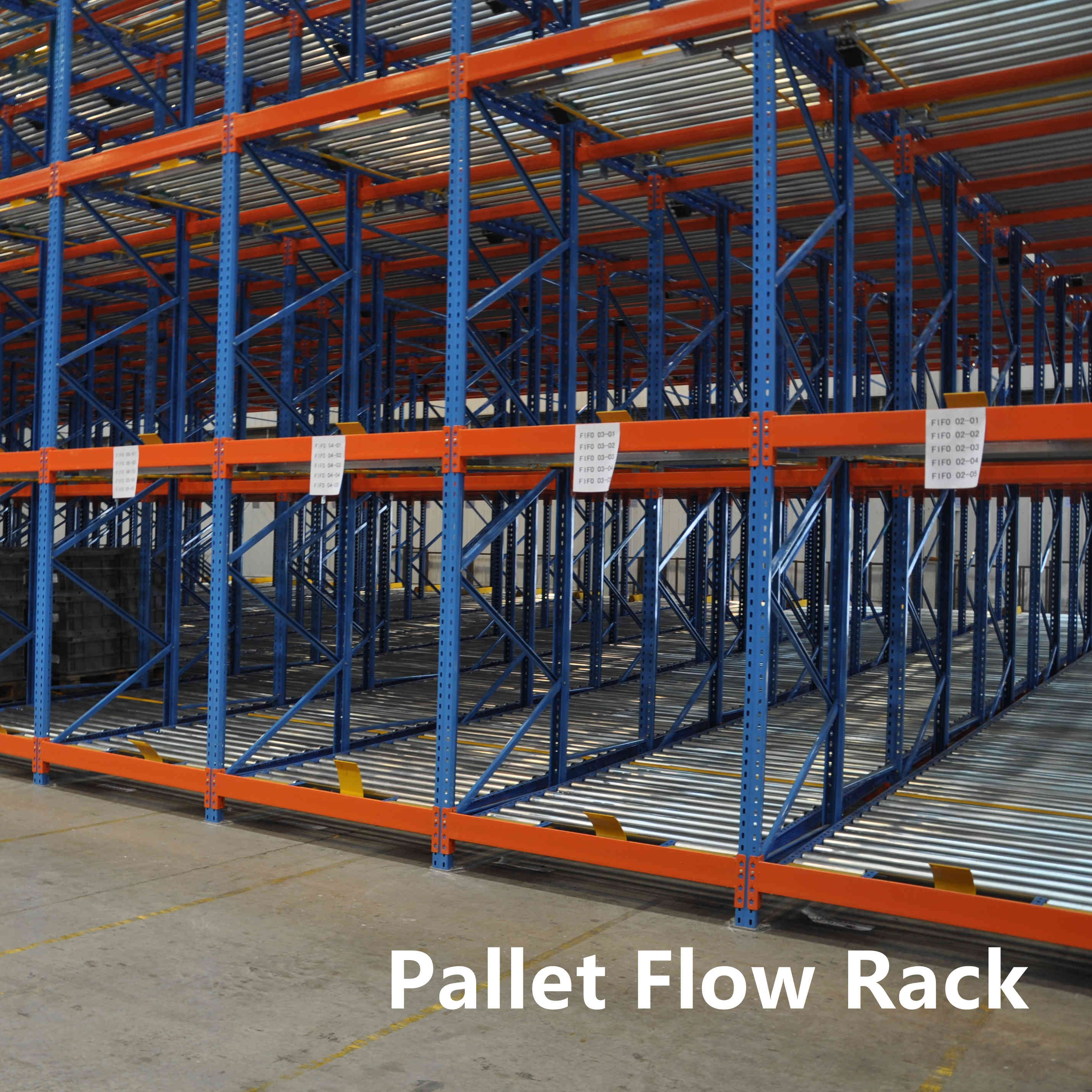

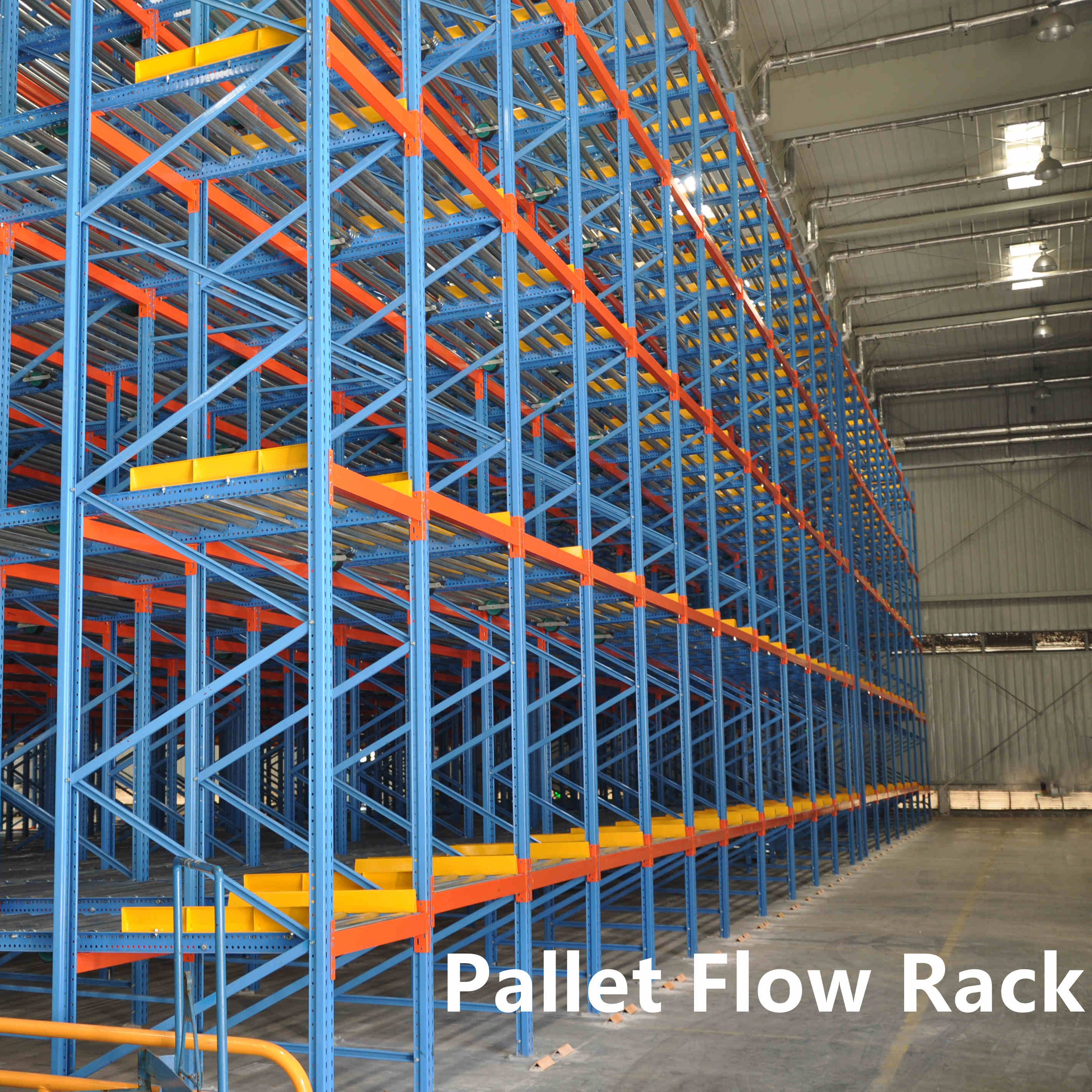

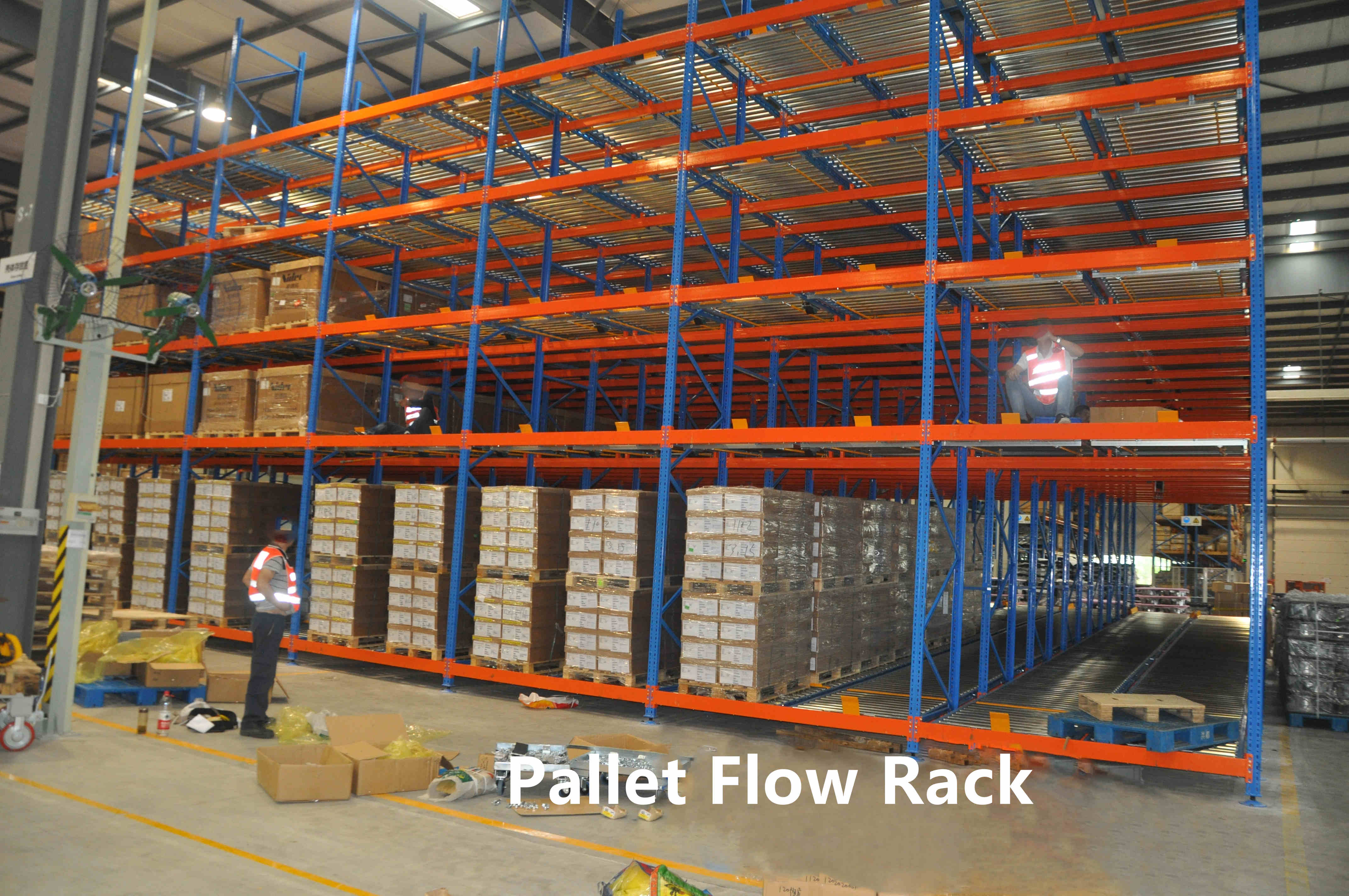

Customized Gravity Flow Pallet Roller Shelf System Heavy Duty Pallet Flow Rack
Product Description
A full variety of ranges and accessories available
| 1. Item: | Gravity Pallet Flow Shelving System |
| 2. Style: | Quick access, Adjustable |
| 3. Material: | Grade Q235 (or SS400) Q345 |
| 4. Certification: | CE / ISO9001 |
| 5. Standard Color: | Blue (RAL5017), Orange (RAL2004), Green (RAL6000), Light Grey (RAL7035), Yellow (RAL1037) |
| 6. Adjustable Pitch: | 50mm, 50.80mm, 75mm, 76.20mm |
| 7. Access Style: | High accessibility & selectivity |
| 8. Finishing: | Powder Coated or Galvanized |
| 9. Application Environment: | Normal Temperature or Freezer |
| 10. Design Service: | CAD service available |
| 11. Back-up Service: | Installation Drawing / On Site Instruction |
| 12. MOQ: | 1 unit |
| 13. Lead time: | 3 weeks for 2*40' container |
| 14. Standard package: | Palletized, Export-Purpose Packaging |
| 15. Container Load: | 10-15 tons / 1*20' container, 20-25 tons / 1*40' container |
| 16. Trade Term: | EXW / FOB / CNF / CIF |
Q
What is a Gravity Pallet Flow Shelving System and how does it work?

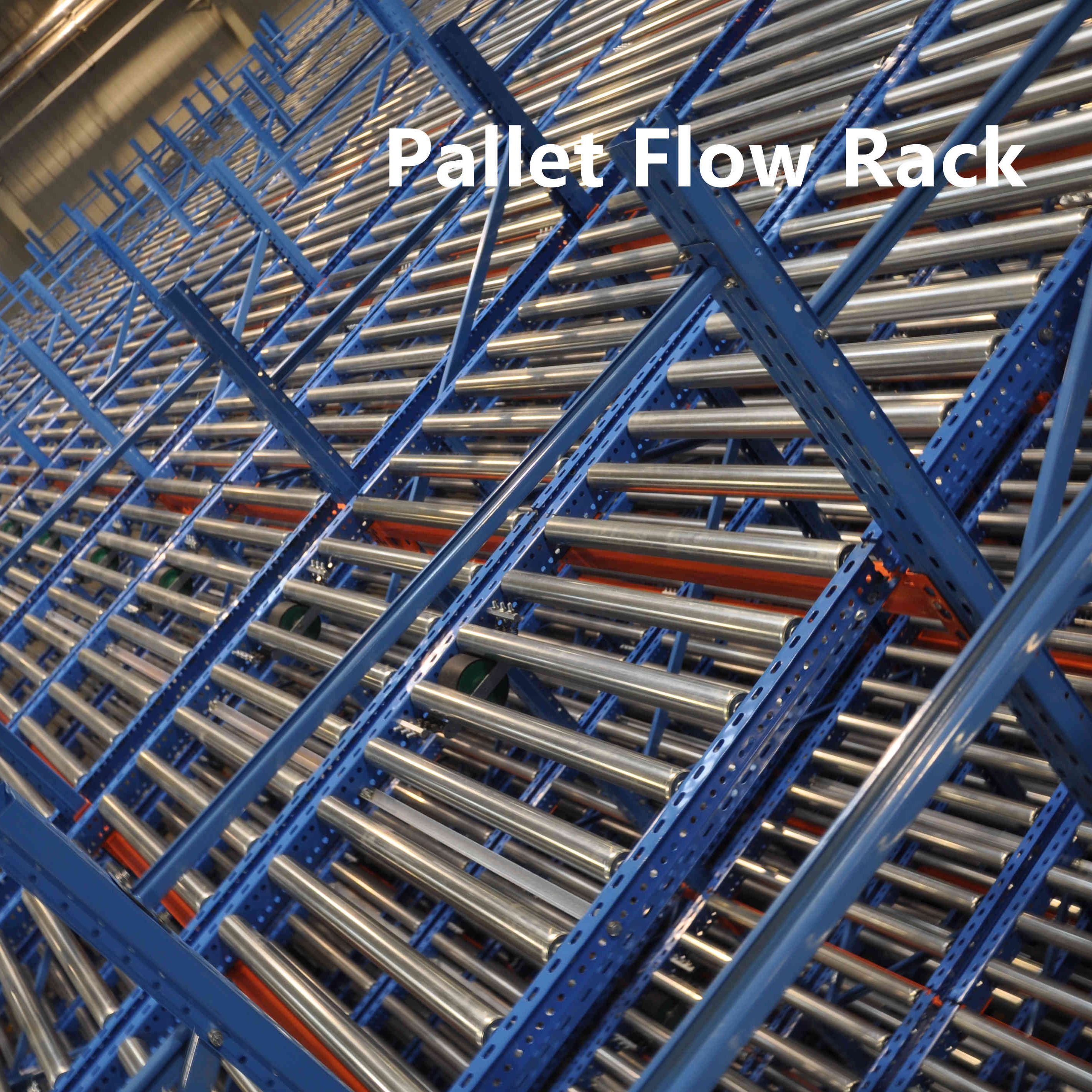

A Gravity Pallet Flow Shelving System is a high-density, dynamic storage solution utilizing slightly inclined roller tracks. Under the force of gravity, pallets smoothly glide from the loading aisle to the picking aisle, guaranteeing an efficient First-In, First-Out (FIFO) inventory rotation.
Q
Can this flow racking system be operated in cold storage or freezer facilities?
Yes. The system is engineered to perform reliably in both normal ambient temperatures and cold or sub-zero freezer environments. We provide specialized finishes, such as heavy-duty powder coating or hot-dip galvanization, to withstand extreme low temperatures and prevent corrosion.
Q
What materials and manufacturing standards are utilized for the structure?
All main structural components are fabricated using high-strength steel grades Q235 (equivalent to SS400) or Q345. Our manufacturing and quality control processes strictly comply with international CE and ISO9001 certifications to ensure optimal structural integrity and load safety.
Q
Do you offer customized CAD warehouse layout planning and engineering support?
Yes, professional CAD design service is fully available. Our engineering team customizes flow rail pitch, lane depths, beam levels, and safety accessories based on your warehouse dimensions, pallet specifications, and throughput demands.
Q
What is the standard production lead time and Minimum Order Quantity (MOQ)?
The Minimum Order Quantity is 1 unit. For volume orders, standard lead time is approximately 3 weeks for two 40-foot containers. Each system is securely palletized and prepared with export-grade packaging for reliable transit.
Q
What post-purchase installation assistance is provided?
We provide complete back-up support including comprehensive installation drawings, step-by-step assembly diagrams, and remote technical guidance. On-site engineer instruction is also available upon request to assist your local installation team.
