Heavy Duty Industrial Pallet Rack System
Universal selective upright profile engineered for multi-tier industrial racking. Features 75mm beam adjustment pitch and high torsional rigidity under heavy pallet drops.
Technical Engineering Dossier
Industrial Shelving Upright Columns: Structural Integrity at Scale
In global industrial supply chains, the shelving upright frame is the central load-bearing pillar that guarantees structural resilience, seismic stability, and operational safety. Standardized manufacturing tolerances are vital to mitigate torsional stresses, column buckling, and systemic failure under heavy industrial loads.
Structural Column Geometries and Stress Mechanics
Industrial shelving uprights serve as vertical compression members subject to composite axial loading, shear forces, and rotational deflection. As modern distribution facilities increase clear ceiling heights to maximize cubic storage density, the buckling mechanics of vertical members become paramount. Premium upright fabrication demands cold-formed, open-profile structural steel with continuous micro-ribbing along the flange profiles. This profiling configuration raises the cross-sectional moment of inertia, significantly mitigating Euler's critical load failure threshold without inflating dead-load steel tonnage.
Modern automated punch stamping systems produce continuous pitch holes (typically engineered at 50mm, 75mm, or 76.2mm increments) executed with micron-level tolerances. These teardrop, diamond, or butterfly punch profiles enable mechanical locking between the horizontal beam end-connectors and vertical upright faces. Under load, these connections leverage downward gravitational wedging, effectively dampening harmonic oscillations and dynamic vibrations induced by rough forklift docking or automated shuttle decelerations.
Engineered Solutions
Recommended Heavy-Duty Racking & Upright Assemblies
Explore our factory-direct industrial racking systems, built on precision roll-formed uprights and high-yield Chinese structural coil steel.
Customized Heavy Duty Warehouse Pallet Racking
Tailor-made profile depths, gauge thicknesses up to 2.5mm, and specialized footplate anchors tailored for high-bay logistical distribution networks.
OEM Steel Mezzanine Floor System
Heavy-duty structural upright columns combined with primary and secondary steel beams to create elevated industrial workspaces and multi-tier fulfillment platforms.
ASRS Automated Storage Retrieval Racking
Precision-manufactured high-bay upright channels built to microscopic deflection tolerances required by high-speed crane guide rails and automated shuttles.
Warehouse Practical Steel Wire Shelving
High-durability wire deck inserts adapted to modular industrial upright frames, optimizing overhead fire sprinkler dispersion and light transmission.
Anti-Pressure Bulk Materials Heavy Rack
Specialized 1,000–4,000 kg load-bearing upright structures engineered to resist sustained point-load pressures and intense industrial environmental vibration.
Through-Aisle Drive-In Heavy Racking
High-density LIFO/FIFO upright systems eliminating picker aisles. Reinforced with cantilever arms and high-tensile top-tie portal frames.

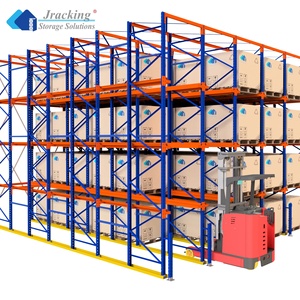

CE-Certified Standard Industrial Pallet Rack
European-standard dual-color selective uprights. Pre-treated with multi-stage phosphate washing and architectural epoxy powder coat.
Technical Reference
Upright Structural Parameters & Load Calculations
A comprehensive technical reference for industrial procurement engineers, warehouse architects, and third-party logistics operators.
| Profile Dimension (mm) | Steel Gauge (mm) | Moment of Inertia (Ix / Iy cm⁴) | Max Bay Capacity (kg) | Recommended Application |
|---|---|---|---|---|
| 80 × 60 (Omega) | 1.5 – 1.8 | 14.2 / 8.6 | 6,000 – 8,500 | Manual pick modules, light industrial shelving, carton flow |
| 90 × 70 (Omega) | 1.8 – 2.0 | 28.5 / 16.3 | 9,000 – 13,000 | Standard selective pallet storage, FMCG warehouse centers |
| 100 × 70 (Reinforced) | 2.0 – 2.3 | 42.1 / 22.4 | 14,000 – 18,500 | Cold storage facilities, drive-in dense layouts, double deep |
| 120 × 95 (Ultra High-Bay) | 2.3 – 3.0 | 76.4 / 45.8 | 20,000 – 28,000 | ASRS automated crane racks, heavy industrial steel stamping plants |
Material Science: Yield Strength and Cold-Forming Dynamics
The manufacturing integrity of an industrial shelving upright depends on the raw metallurgical profile of the steel coil. Certified factories employ Q235B and high-yield Q355B (equivalent to European S355JR or ASTM A572 Grade 50) hot-rolled pickled and oiled steel. When feeding through continuous multi-pass cold roll-forming lines (often incorporating 18 to 24 precision rolling stations), the steel undergoes controlled cold working.
This progressive forming method naturally elevates the yield point along the profile's formed radii. By reinforcing stress points without introducing micro-fractures, roll-formed profiles demonstrate superior resistance to horizontal impact shocks caused by forklift collisions, seismic shearing, and asymmetrical bay overloads.
Market Intelligence
Future Trends in Industrial Upright & Racking Procurement
The industrial shelving sector is shifting rapidly, driven by e-commerce automation, seismic compliance standards, and regional climate volatility.
ASRS & Shuttle-Ready Profiles
Modern warehouse logistics require racking uprights built to tighter dimensional tolerances. With autonomous mobile robots (AMRs) and automated high-bay stacker cranes navigating dense racking corridors, upright manufacturers must hold deflection under full working loads to below 1/1000 of beam height.
Harsh Climate & Coastal Pretreatment
High-salinity coastal ports and desert industrial parks require specialized corrosion protection. The industry is moving beyond standard paints toward multi-stage chemical pretreatment: acid pickling, zinc phosphating, and electrostatically cured polyester-epoxy powder coatings tested to resist 500+ hours of salt-spray exposure.
Modular Structural Hybridization
Procurement teams are prioritizing hybrid modular storage layouts. Standardized roll-formed uprights must interface seamlessly with structural I-beam mezzanine platforms, wire mesh decking, and gravity flow rollers, allowing operations to adapt their storage configurations without redesigning primary structural bays.
Manufacturing Rigor
The 10-Step Quality-Controlled Production Flow
Full in-house fabrication ensures verifiable mechanical properties and reliable field performance across all components.
01. Coil Inspection
Every steel batch undergoes spectrometer analysis to confirm carbon, silicon, and manganese ratios match ASTM / GB standards.
02. Precision Stamping
Continuous CNC dynamic hydraulic punch dies create upright pitches with zero center-line skew across the full column length.
03. Multi-Stage Roll Forming
Over 20 calibrated roller dies progressively shape the steel coil into high-rigidity omega structural upright geometry.
04. Automated Robotic Welding
MIG/MAG welding robots join baseplates and diagonal bracing nodes, delivering deep weld penetration with minimal thermal warping.
05. Acid Pickling Bath
Components pass through immersion baths to remove mill scale, surface oxidation, and hydrocarbon residues.
06. Zinc Phosphating
A chemical conversion layer bonds directly with the bare steel, establishing a corrosion-resistant substrate for powder adhesion.
07. Electrostatic Spraying
Automated powder application lines ensure a uniform 60–90 micron dry film coating across interior flanges and punched edges.
08. High-Temp Curing
Convection bake tunnels run at 180°C–200°C to cross-link the powder coating, creating a durable, chip-resistant finish.
09. Structural Load Testing
Routine QA testing verifies tensile strength, beam lock shear resistance, and column axial compression in our on-site lab.
10. Sea-Freight Packaging
Uprights are nested in protective dunnage, banded with steel straps, and wrapped in water-resistant film to prevent in-transit moisture damage.
Manufacturer Authority
Factory Direct Advantages: Guangzhou Heda Shelves
Manufacturing industrial racking since 2001. We deliver one-stop storage systems to operations across 120+ countries worldwide.
30,000 m² Facility
Our expansive industrial park in Guangzhou houses high-speed roll forming mills, automated stamping presses, and continuous powder coating lines.
30,000 Tons Monthly
High production throughput supports rapid delivery for large infrastructure, port logistics, and multi-tier distribution center projects.
CE & ISO 9001 Certified
Fully compliant with CE certification (No. 2435-CPR-8605159), ISO 9001:2015 quality frameworks, and EU RoHS standards.
Complimentary CAD & 3D
Our engineering team provides full 2D layout drawings, 3D visualizations, and seismic calculation models before fabrication begins.
Procurement Knowledge Base
Frequently Asked Questions by Industrial Buyers
Straightforward technical answers to the most common questions raised by procurement managers, structural engineers, and facility planners.
How do you determine the correct gauge thickness and profile for shelving uprights?
Upright sizing depends on three core variables: the total load weight per bay, the vertical distance to the first load beam level (unbraced column length), and the maximum seismic acceleration coefficient of the installation site. For standard multi-level pallet storage (1,000–2,000 kg per level), an 80×60mm or 90×70mm profile in 1.8mm or 2.0mm steel is typically specified. For high-bay AS/RS systems exceeding 10 meters, our engineers calculate Euler buckling and torsional moment requirements, usually specifying 100×70mm or 120×95mm profiles with thicknesses up to 2.5mm or 3.0mm.
Can your upright hole punch patterns match our existing third-party racking?
Yes. We provide complete OEM/ODM tooling customization. If you need to integrate new bays with existing installations—such as European 50mm pitch patterns, American Teardrop configurations, or British Dexion-compatible diamond styles—our engineers can configure custom CNC punch tooling to ensure full mechanical interchangeability.
How do you protect exported uprights from corrosion in humid environments?
We apply an automated multi-stage pre-treatment process: degreasing, acid pickling, and zinc phosphating to create an anti-corrosion barrier. Following preparation, uprights receive an electrostatic thermoset epoxy-polyester powder coat cured at 180°C–200°C. For open yard storage, high-humidity coastal sites, or refrigerated facilities, we also offer hot-dip galvanizing per ISO 1461, ensuring lasting protection against oxidation and chemical wear.
What engineering data is needed to request an accurate quotation and CAD design?
To produce an accurate CAD design and competitive quote, please provide: (1) An architectural warehouse floor plan showing clear ceiling heights and internal column grids; (2) Pallet dimensions (W × D × H) including maximum overhang and loaded unit weights; (3) Forklift specifications including turn radius and maximum reach height; (4) Desired SKU turnover model (FIFO vs. LIFO); and (5) The delivery destination port for sea-freight logistics planning.
What third-party testing and quality certifications accompany each shipment?
Every production batch includes factory material certificates (Mill Test Certificates confirming chemical composition and mechanical properties per GB/T 700 or EN 10025). We operate under CE compliance (No. 2435-CPR-8605159) and an ISO 9001:2015 quality management system. Third-party visual and structural inspections through agencies such as SGS, TÜV, or BV can also be arranged prior to container loading.
How are upright frames packed for long-distance international container transit?
Upright columns are nested and bundled with high-tensile steel banding, cushioned with protective wooden battens or corrugated cardboard at all contact points, and wrapped in waterproof polyethylene stretch film. Structural diagonal and horizontal bracings, floor anchor footplates, and hardware bolts are palletized and boxed in labeled packaging matching your installation assembly diagrams.
