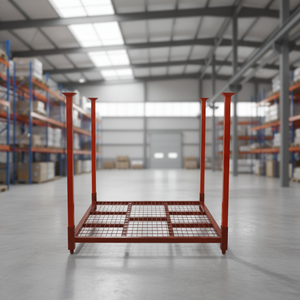

Foldable Steel Roll Stacking Pallet Frame
Heavy-gauge portable stacking frames designed to convert open floor space into high-density tiered storage. Foldable structure dramatically lowers reverse logistics and container shipping costs.
Gravity Flow Pallet Roller Shelf System
Integrated dynamic roller tracks utilizing gravity for automatic stock replenishment. Guarantees strict FIFO rotation for cold storage, food and beverage, and perishable pharmaceutical distribution.

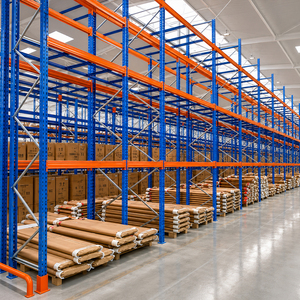

Q235B Single Deep Double-Sided Selective Rack
High-rigidity cold-formed structural steel offering direct uninhibited accessibility to every pallet location. Ideal for multi-SKU logistic facilities requiring high daily throughput and rapid stock turnover.
Adjustable Heavy-Duty Steel Beam Pallet Racking
Heavy industrial grade boxed-beam structural assembly supporting up to 5,000kg per tier. Uprights feature continuous cold-rolled keyhole perforations for 50mm or 75mm elevation adjustments.
4-Layer Drive-Through High Load Steel Rack
Continuous lane design eliminating access aisles to maximize volumetric space utilization up to 85%. Features corrosion-protected cantilever arms and floor-mounted guide rails for forklift safety.
Very Narrow Aisle (VNA) High-Bay Racking
Engineered for narrow operating aisles (1.6m to 1.8m) served by wire-guided turret trucks. Delivers up to 45% increased vertical storage capacity compared to standard selective racking setups.
Adjustable Q235B Modular Beam Racking
Universal industrial storage shelving engineered with precision cold-formed upright profiles and wrap-around end connectors. Offers 100% adaptability for standard Euro, GMA, and Australian pallet footprints.
Technical Anatomy of Industrial Slotted Angle Racks
Slotted angle racks represent the most versatile, modular framing system in global intralogistics. However, structural integrity across 3-tier to 5-tier installations hinges on cold-forming metallurgy, perforation precision, and protective surface treatments.
Prime Structural Steel Grade & Gauge Thickness
Tier-1 exporters utilize certified prime high-tensile carbon steel (Q235B / SS400 / S235JR) with certified yield strengths exceeding 235 MPa and ultimate tensile resistance of 370–500 MPa. Unlike secondary non-certified mill scrap, virgin coils ensure uniform wall thickness across 1.5mm, 1.8mm, 2.0mm, and 2.5mm angle profiles, preventing brittle micro-cracking during automated continuous roll forming.
- Mill Test Certificates (MTC) EN 10204 3.1 Traceability
- Thickness tolerance controlled within ±0.05 mm
- High yield retention under seismic lateral shear
CNC Multi-Punch Hole Patterns & Bolt Geometry
The structural rigidity of a slotted angle frame relies entirely on slot alignment and corner gusset plate engagement. Advanced cold roll-forming lines feature multi-station progressive hydraulic punch dies that stamp alternating horizontal and vertical slots at exact 50mm or 75mm centers. This engineered geometry eliminates torsional twist while accommodating high-shear Grade 8.8 M8/M10 flange bolts.
- Continuous center pitch accuracy within ±0.2mm
- Engineered corner gussets delivering zero-sway frames
- Universal hole layout compatible with global bolt specs
Electrostatic Powder Coating & Surface Pretreatment
Industrial warehouse installations often face harsh environmental stressors: coastal salt spray, 90%+ ambient relative humidity in tropical trade ports, or sub-zero condensation in refrigerated storage. High-performance slotted angles undergo a multi-stage automated immersion cycle: chemical degreasing, ultrasonic acid pickling, zinc phosphating, and electrostatic epoxy-polyester powder coating (60–90μm).
- 500+ Hours ASTM B117 Neutral Salt Spray Resistance
- RoHS compliant, non-toxic heavy metal-free powder
- Scratch-resistant thermoset finish rated 2H pencil hardness
Comparative Analysis: Top 10 Slotted Angle Rack Exporters
To assist global procurement directors, supply chain VPs, and engineering consultants, we evaluated the leading international manufacturers across structural steel quality, monthly production volume, global port export logistics, and technical customization.
| Exporter / Manufacturer | HQ / Production Base | Core Metallurgy & Spec | Monthly Capacity | Key Export Markets | Industry Rating |
|---|---|---|---|---|---|
| Guangzhou HEDA Shelves Co., Ltd. | Guangzhou, China (30,000 m²) | Prime Q235B / Cold-Formed 1.5–2.5mm / ISO 9001, CE | 30,000 Tons | Middle East, North America, EU, SE Asia, Africa | Tier-1 Leader |
| Dexion (Gonvarri Material Handling) | Germany / Romania / UK | High-Yield Structural EN 10025 Steels | 18,000 Tons | Pan-European, UK, Scandanavia | Tier-1 European |
| Mecalux, S.A. | Barcelona, Spain | Automated High-Bay Profiles / Cold-Roll Formed | 25,000 Tons | Americas, Southern Europe | Tier-1 Multinational |
| SSI Schaefer Systems | Neunkirchen, Germany | Modular Boltless & Slotted Multi-Tier Hybrid | 22,000 Tons | Global Automation & Logistics Hubs | Tier-1 Systems |
| Interlake Mecalux Inc. | Chicago, IL, USA | RMI Certified Teardrop & Slotted Columns | 15,000 Tons | North America, Mexico | Tier-1 Regional |
| Godrej & Boyce (Storage Solutions) | Mumbai, India | Standard Cold-Rolled Slotted Angles | 12,000 Tons | South Asia, Middle East, East Africa | Major Regional |
| Bito-Lagertechnik Bittmann GmbH | Meisenheim, Germany | Light & Medium-Duty Boltless Shelving | 10,000 Tons | Western Europe, Eastern Europe | Specialized |
| Stow Group | Spiere-Helkijn, Belgium | Heavy Industrial Beams & Perforated Uprights | 16,000 Tons | EMEA, North America | Tier-1 Industrial |
| AR Racking (Grupo Arania) | Bizkaia, Spain | High-Elasticity Galvanized & Coated Racks | 14,000 Tons | Latin America, Western Europe | Tier-1 Industrial |
| Nanjing Kingmore Logistics Equipment | Nanjing, China | Q235B Standard Roll-Formed Racking | 12,000 Tons | Australia, SE Asia, South America | Export Specialist |
*Benchmark assessment derived from independent international trade audits, factory plant square footage, CNC cold roll-forming capacity, verifiable ISO/CE certifications, and demonstrated container export velocity across global seaport hubs.
Future Procurement Trends for Warehouse Slotted Systems (2025–2030)
Procurement leaders are navigating structural shifts in intralogistics driven by micro-fulfillment, nearshoring, and aggressive carbon-reduction mandates. Slotted angle rack systems are evolving from static utility shelves into high-precision, hybrid modular backbones.
Total Cost of Ownership (TCO) Over Initial Unit Price
Sophisticated procurement divisions are discarding low-bid commodity purchases in favor of lifecycle TCO calculations. Poorly cold-formed slotted angles manufactured from non-homogenous steel experience slot deformation under point loads, leading to premature structural buckling, bolt thread shearing, and costly warehouse shutdowns. Sourcing certified prime steel with certified deflection margins (≤ L/200) lowers 10-year facility maintenance expenditures by up to 34%.
AMR & AGV Mobile Picking Integration
Autonomous Mobile Robots (AMRs) and automated guided picking carts demand absolute plumbline accuracy across warehouse aisles. Future-proof slotted racking layouts require zero-tolerance perpendicular tolerances. Slotted angle structures are increasingly fitted with magnetic floor locator strips, high-contrast QR visual targets, and laser-guided pick-to-light wiring channels recessed directly inside the angle flange.
Circular Economy & Low-VOC Thermoset Finishes
Global ESG reporting protocols (Scope 1, 2, and 3 emissions) are prompting enterprise buyers to scrutinize steel processing energy. Exporters adopting scrap-reduced precision nesting, closed-loop phosphate water recycling, and ultra-low VOC electrostatic thermoset coatings are capturing tier-1 logistics tenders across North America, the European Union, and the United Arab Emirates.
Product Development Trends: Next-Gen Slotted Racking Engineering
Continuous roll-forming technology is unlocking lighter yet structurally stiffer cross-sections. Below are the key engineering breakthroughs defining the next generation of warehouse slotted angle systems.
Multi-Ribbed Profile Optimization
Traditional equal-angle iron (e.g., 40mm x 40mm) relies on solid metal thickness for stiffness. Advanced exporters now engineer multi-ribbed returns along the angle edge and cold-stamped stiffening ribs adjacent to the slot perforations. This increases the second moment of area (moment of inertia) by up to 28%, allowing an engineered 1.8mm ribbed profile to match the axial load resistance of a traditional 2.5mm plain angle.
Boltless-Slotted Hybrid Topologies
While heavy bolted angle connections remain standard for mezzanine uprights and structural perimeter frames, internal shelving levels are shifting toward quick-connect keyhole and rivet lugs. By combining slotted structural outer corners with tool-less internal beam adjustments, installation turnaround times decrease by 40% on active construction and warehouse fit-out sites.
Extreme Environment Pretreatment (Harsh Climates)
Rapid supply chain expansion across the GCC (UAE, Saudi Arabia, Qatar) and Southeast Asia presents extreme challenges: warehouse ambient temperatures topping 48°C combined with high airborne humidity and fine silica dust. Modern exporters utilize multi-tank chemical pre-treatment with zirconium conversion coatings to ensure zero coating delamination, blister formation, or oxidative creeping over decades of heavy service.
