Featured Storage & Dynamic Racking Solutions
Explore our certified heavy-duty warehouse racking equipment, precision-engineered to meet stringent international standards (EN 15512, ISO 9001, CE) for automated distribution hubs, fast-moving consumer goods (FMCG), and industrial fulfillment facilities.

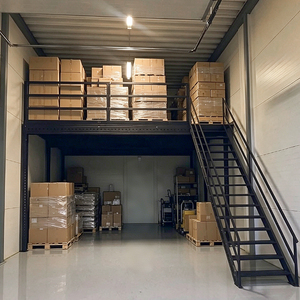

Multi-Tier Warehouse Mezzanine & Pallet Racking
Multi-level structural platform maximizing vertical clear heights. Features reinforced cold-formed steel columns, integrated staircases, and 300–1000 kg/m² decking capacities.

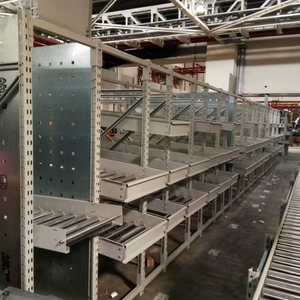

Pick-to-Light (PTL) Smart Order Picking Live Rack
Dynamic carton flow integration with high-precision LED light direction. Eliminates picking discrepancies, enhances fulfillment cycle rates, and streamlines high-speed SKU dispatch.

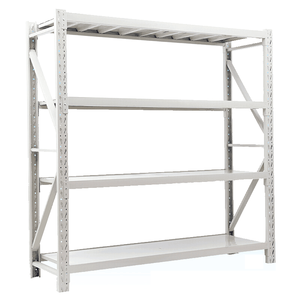

4-Shelf Boltless Rivet Industrial Shelving (HJQ-105)
Modular, fast-assembly boltless shelving designed for manual archive, maintenance depots, and supermarket micro-fulfillment backrooms. Heavy gauge corrosion-resistant steel.
5-Layer Heavy-Duty Industrial Warehouse Storage Rack
Reinforced multi-tier beam shelving designed for dense mechanical parts, raw material staging, and bulk wholesale logistics. Engineered upright profiles ensure zero beam twisting under load.

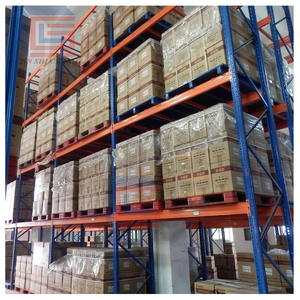

Engineered Heavy-Duty Steel Pallet Racking System
Universal selective pallet racking configurable for single or double-deep layouts. Fully compatible with reach trucks, counterbalanced forklifts, and VNA narrow-aisle setups.
AS/RS Automated Stacker Crane High-Bay Racking
Fully automated storage & retrieval structure built for vertical heights up to 40 meters. Ultra-tight tolerance alignment allows uninterrupted stacker crane acceleration and deceleration.

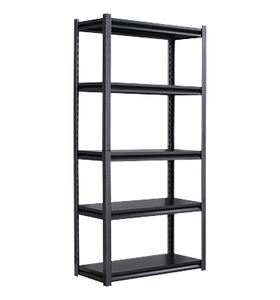

5-Layer Commercial Boltless Rivet Storage Shelving
Cost-effective, versatile shelving specifically configured for light industrial parts, pharmaceutical packaging, and regional e-commerce consolidation hubs.
High-Tenacity Polyester Pallet Cargo Restraint Netting
Heavy-duty webbed netting ensuring total containment on live storage run-out lanes, pallet discharge decks, and intermodal transport containers. UV and chemical resistant.
Kinematics & Structural Dynamics of Live Storage (Gravity Flow)
Live storage racking (pallet flow & carton flow) utilizes gravity-fed inclined roller beds to automate stock rotation based on the strict First-In, First-Out (FIFO) principle. Implementing dynamic storage demands calculating rolling coefficients, friction dampers, and impact kinetics to eliminate product collision and structural fatigue.
Gravity Incline Calibration
A precise gradient angle between 2.5% and 4.0% (approximately 1.5° to 2.3°) is engineered based on bottom deck board material, runner orientation, and overall unit weight (300 kg to 1,500 kg). Undersized gradients lead to stalled lanes, whereas excessive angles cause velocity runaway and pallet crushing.
- Standard Euro Pallet (1200x800mm): 3.2% calibrated slope
- Industrial GMA/Chemical Pallet (1200x1000mm): 3.5% slope
- Plastic & Runner-less Skid Platforms: Custom segmented rollers
Braking & Speed Controllers
Centrifugal speed controller rollers (viscous brake rollers) are spaced along each lane at intervals determined by track length. As the pallet rolls over the brake roller, internal centrifugal planetary gears engage brake pads, holding descending pallet speed below a safe limit of 0.3 meters per second.
- Controlled descent speed: 0.15 m/s – 0.30 m/s maximum
- Direct contact internal mechanical governor design
- Zero electrical power input (100% passive gravitational kinetic energy)
Pallet Separators & End Stops
At the discharge picking face, the hydrostatic back-pressure exerted by queued rear pallets can easily reach thousands of kilograms, jamming forklift tines or creating safety hazards. Mechanical time-delay or pressure-activated separation stops isolate the front pallet, allowing effortless, zero-pressure extraction.
- Mechanical isolation of the first retrieval unit
- Automatic reset upon completion of forklift extraction
- Heavy-duty entry guides with polyurethane shock absorption
Comparative Engineering Matrix: High-Density Racking
Procurement leaders must evaluate spatial efficiency, stock rotation mechanics, capital expenditure, and forklift operating overhead before specifying storage systems.
| System Architecture | Stock Rotation | Space Utilization | SKU Selectivity | Forklift Travel In-Rack | Typical Applications |
|---|---|---|---|---|---|
| Live Pallet Flow (Gravity) | Strict FIFO | Very High (80–85%) | 1 SKU per lane | None (External picking face) | Cold stores, dairy, pharma, FMCG expiration control |
| Radio Shuttle Racking | FIFO or LIFO | Ultra High (85–90%) | 1 SKU per channel | None (Automated shuttle car) | Bulk beverage, buffer holding, production dispatch |
| Push-Back Racking | Strict LIFO | High (70–75%) | 1 SKU per lane (2–6 deep) | None (Push cart entry face) | Medium turnover, manufacturing parts staging |
| Drive-In Racking | Strict LIFO | High (70–80%) | Low (1 SKU per bay) | High (Forklift drives inside lanes) | Low-velocity bulk goods, seasonal holding |
| Standard Selective Racking | FIFO / LIFO | Low to Moderate (40–45%) | 100% Immediate | In-aisle only | High SKU variety, general distribution centers |
Live Storage Procurement Trends (2025–2030)
Intralogistics is shifting toward hybrid automation, zero-carbon footprint fabrication, and ultra-cold cold-chain distribution. Discover how forward-thinking supply chains are investing in dynamic storage.
AMR & AGV Interfacing
Traditional live racking depended on manual counterbalanced forklifts. Modern fulfillment centres deploy automated counterbalanced Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs) equipped with optical 3D LiDAR. Live racks now incorporate photo-reflective sensor arrays, laser targets, and tapered entry funnels to accommodate ±2mm robot docking precision.
Deep Cold Chain Expansion (-30°C)
With refrigerated space costing up to 500% more in energy per cubic meter than ambient facilities, live storage systems provide maximum pallet density, shrinking air volume requirements. Rollers are engineered with specialized low-viscosity synthetic lubricants and cryogenic stainless-steel bearings that prevent oil freezing and roller seizure down to -30°C.
Low-Embodied Carbon Steel
Global EPC contractors and multinationals prioritize Scope 3 supply chain decarbonization. Procurement is shifting toward suppliers utilizing electric arc furnace (EAF) steel and high-yield cold-rolled micro-alloyed steel (such as Q355B). This minimizes overall raw material tonnage while boosting load ratings, paired with lead-free, zero-VOC TGIC powder coatings.
Engineered by Guangzhou Heda Shelves Co., Ltd.
Established in 2001, HEDA Shelves operates a state-of-the-art 30,000 m² heavy-industrial manufacturing base in Guangzhou, delivering a continuous monthly production capacity exceeding 30,000 metric tons. Supported by over 300 experienced technical engineers, we design and export certified industrial storage systems to more than 120 countries worldwide.
30,000 m² Factory
Complete in-house roll forming, robotic welding, automated perforation, and powder coating lines under one roof.
CE & ISO 9001 Certified
Traceable CE Certification (No. 2435-CPR-8605159) and ISO 9001:2015 Quality Management (No. 18624Q00169R0M).
30,000 Tons / Month
Massive throughput capacity guaranteeing rapid turnarounds on megaprojects and regional container dispatches.
Free 3D CAD & FEM Layout
Complimentary structural calculation, 2D floor plans, and 3D visual renderings before production initiation.
HEDA 10-Step Heavy Industrial Production Process
From metallurgical raw coil inspection to final maritime container packing, every production phase undergoes rigorous mechanical quality gating.
Frequently Asked Procurement & Engineering Questions
Critical technical, mechanical, and commercial answers for warehouse planners, EPC contractors, and global logistics directors.
