CE Certified
Enterprise Heavy Duty Systems
Featured Industrial Selective Pallet Racks & High-Density Solutions
Direct factory-certified steel racking solutions designed for universal forklift compatibility, 100% SKU selectivity, and extreme seismic/climatic resilience.
Anti-Corrosion
Heavy Duty Steel Single & Double-Depth Selective Racking
Adjustable Beams

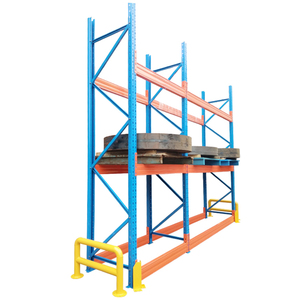

Industrial Heavy Duty Adjustable Beam Selective Pallet Racks
Climate Resilient

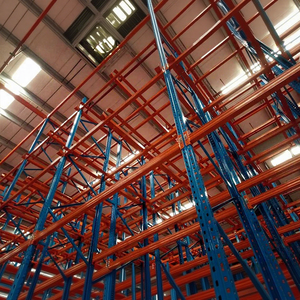

Single Deep Industrial Selective Pallet Rack Powder Coated
Multi-Tier Ready
Adjustable Heavy Duty Metal Beam Pallet Racking Shelf System
Structural Steel
Q235B Steel Single Deep Double-Sided Storage Rack
Anti-Rust Industrial
Industrial Anti-Rust Conventional Beam Storage Racking
High Density FILO

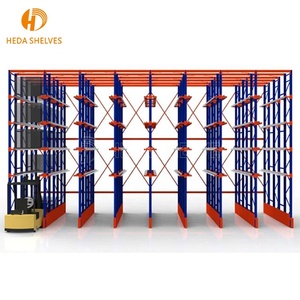

High Density FILO Drive-In & Continuous Pallet Racking
1. Engineering Fundamentals of Single Deep Selective Pallet Racking
In the taxonomy of global intralogistics infrastructure, the Single Deep Selective Pallet Rack remains the benchmark storage architecture, accounting for over 65% of global warehouse installations. Engineered around the absolute mechanical mandate of 100% individual pallet selectivity, single deep systems eliminate honeycombing losses, accommodate limitless SKU velocity variations, and interface seamlessly with every standard material handling vehicle (counterbalance forklifts, reach trucks, and narrow-aisle units).
As a premier manufacturer operating from Guangzhou, China since 2001, Guangzhou HEDA Shelves Co., Ltd. builds selective racking systems conforming strictly to international structural codes, including European EN 15512 (Steel Static Storage Systems), RMI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks), and FEM 10.2.02. Our single deep configuration leverages structural cold-formed certified Q235B/Q355B high-tensile steel, designed to withstand intense dynamic seismic loads, floor slab settlements, and impact shears typical of high-turnover logistics centers.
2001
Established Year
30,000 m²
Integrated Factory
30,000 t
Monthly Production
120+
Countries Supplied
Structural Anatomy & Mechanical Integrity
A structurally verified single deep selective rack assembly consists of two continuous vertical upright frames interconnected by diagonal and horizontal C-profile bracing, bridged by precision-formed box beams or interlocking step beams. The column upright is stamped with a proprietary teardrop or hexagonal diamond pattern at 50mm or 75mm pitches, enabling continuous micro-adjustability to match evolving pallet stack heights.
Our beam-to-column connection relies on an automated laser-cut, 3-hook to 5-hook connector claw. When slotted into the upright perforations, the connector exerts a wedge-action clamping moment that hardens rack rigidity under progressive live loads. Every connector is secured by an electro-galvanized spring steel safety lock capable of resisting up to 1,000 kg of accidental vertical forklift shear during pallet staging.
2. Verified Factory Capabilities: HEDA Shelves Industrial Advantages
Procuring heavy-duty warehouse racking demands rigorous supply chain transparency. Unlike trading intermediaries or regional fabricators lacking automated roll-forming equipment, Guangzhou HEDA Shelves Co., Ltd. controls 100% of the manufacturing value chain across our 30,000 square meter production facility. Middle East logistics hubs in Dubai, Jebel Ali, Riyadh, Jeddah, Dammam, and GCC ports directly benefit from our end-to-end metallurgical quality control, certified under CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 Management Certification No. 18624Q00169R0M (valid through June 2027).
HEDA's Traceable 10-Step Production Process
Step 01
Raw Material Control
Spectrometric analysis of incoming hot-rolled Q235B/Q355B coils for yield strength & chemical composition.
Step 02
Precision Slitting
CNC longitudinal coil shearing ensuring tolerance control down to ±0.1mm for roll-form tracking.
Step 03
CNC Column Punching
High-speed automated perforation punches preserving steel crystalline structure without micro-fractures.
Step 04
Cold-Bend Roll Forming
Multi-station progressive continuous roll-forming lines creating 12-fold omega upright columns.
Step 05
Box Beam Seam Weld
Continuous double C-section interlocking automated welding guaranteeing beam deflection rating < L/200.
Step 06
Robotic Robotic Welding
Automatic MIG welding of beam end connectors under Argon-CO2 shielding for zero porosity joints.
Step 07
Acid Pickling & Phosphating
Multi-tank chemical immersion eliminating all mill scale and creating a micro-crystalline iron phosphate barrier.
Step 08
Electrostatic Powder Spray
Automated Gema powder spray booths applying thermosetting epoxy-polyester powder (60-80μm thickness).
Step 09
High-Temp Curing Tunnel
200°C polymer cross-linking oven ensuring impact resilience, chemical resistance, and non-fading pigments.
Step 10
Container Palletized Staging
Heavy steel strapping, edge corner guards, and bundle labeling mapped directly to 3D installation blueprints.
3. Strategic Procurement Trends & Technological Evolution (2025-2035)
The industrial racking sector is undergoing a rapid technological pivot driven by supply chain volatility, land acquisition costs, and robotic automation. Warehouse designers and corporate procurement directors are no longer treating steel racks as passive commodities, but as high-tolerance interfaces for automated material handling ecosystems. Forward-looking procurement strategies must incorporate the following technological developments:
Autonomous Mobile Robot (AMR) & AGV Synergy
Traditional wide aisles (3,200mm to 3,800mm) are giving way to guided VNA (Very Narrow Aisle) and AMR-ready selective layouts. Upright baseplates now feature recessed anchor pockets and flush front-leg shims to ensure zero deviation for optical lidar navigation systems.
High-Bay Verticalization (>12 Meters)
With industrial square meter leasing costs soaring across GCC logistics zones and global port hubs, single deep racks are scaling upward to 12m-16m clear heights. This requires cold-rolled columns with 12 to 14 bending angles to resist axial bucking forces without expanding cross-sectional gauge.
Cold Chain Thermal Stability
Cold chain facilities for pharmaceuticals and fresh produce demand steel formulas that eliminate low-temperature brittle fractures. Specialized Q355D steel grades combined with pre-galvanized zinc coatings prevent structural degradation down to -30°C blast-freezer operations.
Civil Defense & Fire Safety Integration
Global fire safety standards (NFPA 13, UAE Civil Defense, Saudi Civil Defense) mandate strict longitudinal (150mm) and transverse (75mm) flue space maintenance. Modern selective racks integrate factory-welded flue space stops and snap-in wire decks to prevent pallet drift into sprinkler zones.
4. Technical Comparison: Single Deep Selective vs. High-Density Racking Systems
Evaluating the total cost of ownership (TCO) across warehouse racking systems requires a balance between pallet density, SKU accessibility, capital expenditure (CapEx), and operational speed (OpEx). The matrix below provides an authoritative comparison to guide engineering procurement decisions:
| System Metric | Single Deep Selective | Double Deep Racking | Drive-In Racking | Radio Shuttle Racking |
|---|---|---|---|---|
| Pallet Selectivity | 100% Immediate | 50% (Requires Shifting) | <15% (LIFO/FILO) | Low per lane (FIFO/LIFO) |
| Floor Area Utilization | 35% - 45% | 50% - 60% | 65% - 75% | Up to 85% |
| SKU Diversity Suitability | Infinite / Fast Mix | Medium SKU Variety | Low (High Vol/Few SKUs) | Medium to Low SKUs |
| Forklift Machinery Requisite | Standard Counterbalance / Reach | Pantograph Reach Truck | Counterbalance into bays | Standard Forklift + Shuttle |
| Throughput Handling Speed | Highest (Fast cycle) | Moderate | Slow (Risk of collisions) | High (Automated shuttle) |
| Initial Capital Cost per Pallet | Lowest CapEx Baseline | Low-Medium | Medium | High (Battery/Shuttles) |
5. Frequently Asked Questions (FAQ) for B2B Racking Procurement
Critical technical, structural, and shipping inquiries addressed directly by HEDA Shelves' chief structural engineering division:
What precise structural data is required to calculate load capacities for single deep racks? +
To generate a structurally verified structural calculation sheet and CAD layout, our engineering team requires: (1) Pallet footprint dimensions (width × depth × height, including timber overhang); (2) Maximum gross load weight per pallet (typically 500kg to 2,000kg); (3) Forklift specifications including mast lowered/collapsed height, maximum fork elevation, and turning radius (Aisle Width Minimum Ast); (4) Building architectural drawings detailing warehouse concrete slab thickness, compressive strength (e.g., C25/30 or 25MPa+), flatness rating (DIN 18202 or FM2), and clear height below obstructions (fire sprinklers, HVLS fans, crane rails).
How does HEDA Shelves guarantee corrosion resistance in high-humidity and desert coastal climates? +
Warehouses located in coastal Arabian Gulf zones (Dubai, Abu Dhabi, Dammam, Jeddah) or tropical Southeast Asia experience aggressive galvanic corrosion due to airborne salt ions and relative humidity exceeding 85%. HEDA Shelves uses a rigorous 4-stage pretreatment process: hot alkali degreasing, acid pickling to strip scale, micro-crystalline zinc-iron phosphating, and deionized water rinsing. The electrostatically applied epoxy-polyester powder coat is baked at 200°C to achieve a dry film thickness of 70-90 microns, passing 500-hour continuous salt spray testing under ASTM B117 without blistering or adhesion failure. For outdoor storage yards, hot-dip galvanizing conforming to ISO 1461 is available.
Can HEDA single deep racking drawings be submitted for Civil Defense and insurer fire compliance? +
Yes. Every engineered racking solution prepared by HEDA Shelves includes comprehensive 2D CAD engineering layouts and load distribution diagrams specifying egress aisle widths, emergency personnel cross-aisles, vertical rack flue spacing (75mm transverse / 150mm longitudinal clear flue), and permissible distributed beam loadings. Our technical drawings have successfully supported client submissions to local Civil Defense authorities across the UAE, Saudi Arabia, Qatar, Kuwait, Oman, and European fire safety bodies.
What is the deflection limit permitted on HEDA pallet rack load beams? +
HEDA Shelves designs all horizontal load beams to adhere to the strict deflection standard of δ ≤ L/200 under static, uniformly distributed load (UDL) as prescribed by FEM 10.2.02 and EN 15512. For example, a standard 2,700mm beam carrying two 1,000kg pallets will not deflect more than 13.5mm under maximum operating capacity, returning to zero permanent deformation upon load removal due to the high elastic modulus of our Q235B cold-rolled profile.
How are shipping containers bundled and marked to accelerate overseas on-site installation? +
All structural uprights are pre-assembled or flat-packed into rigid steel-strapped bundles with cardboard edge corner protectors and stretch film weatherproofing. Beams are nested with interlocked connectors to maximize container payload weight (up to 26-28 metric tons per 40ft HQ container). Every bundle carries bilingual barcoded identification tags matching the engineering erection drawings, itemizing piece mark numbers, column lengths, beam profiles, and hardware quantities to minimize sorting time at the jobsite.
