Heavy-Duty Cantilever Racking Engineering & Global Procurement Guide
Cantilever racking represents the premier logistical design for storing long, unwieldy, and variable-length commodities such as steel profiles, structural lumber, PVC piping, architectural millwork, and automotive chassis. By eliminating front upright columns that restrict horizontal loading lanes, cantilever architecture delivers unobstructed horizontal clearance, facilitating single-fork handling, side-loader throughput, and seamless crane accessibility.
Featured Cantilever Systems & Technical Assemblies
Direct factory configurations manufactured to CE, ISO 9001:2015, and European FEM 10.2.09 storage design parameters.
Double-Sided

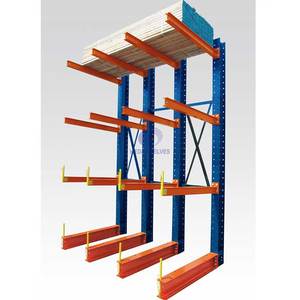

Double-Sided Cantilever Racking System
Central Column
High Density
Decked Panels
Corrosion Proof
Heavy Duty Aluminium & Canopy Cantilever System
Outdoor Shed
Weather Proof
EN / CE Compliant
Standard Heavy
Warehouse Heavy Duty Industrial Cantilever Rack
Q235B / Q355B
Pin Connection
Custom Heights
Steel Yard
Cantilever Rack for Steel Profile & Bar Storage
Profile Arms
Adjustable 100mm
Stop Pins
Timber & Millwork
Modular Steel Cantilever Racks for Wood Storage
Modular Span
Plywood Decking
Economical
Specialized
19'' Adjustable Cantilever Network Cabinet Shelf
Server Enclosure
Cold Rolled Sheet
Precision Stamped
Structural I-Beam
Structural Heavy Duty Rack for Long Materials
Hot-Rolled H-Beam
Impact Resistant
Up to 5 Tons/Arm
Direct Manufacturer Advantage
Why Global EPCs & Industrial Distributors Partner With Us
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. controls the complete vertical lifecycle: from structural calculations and 3D modeling to cold roll-forming, pickling, phosphating, electrostatic powder coating, and seaworthy containerized packaging.
Verified Structural Certifications
Compliant with CE (No. 2435-CPR-8605159), ISO 9001:2015 quality assurance, and RoHS directives. Every arm deflection ratio complies strictly with static storage limits under full load.
Free CAD & 3D Design Layouts
Our engineering center drafts full-scale 2D AutoCAD layouts and 3D stress-point simulations prior to contract signing, ensuring compliant aisle widths, clearance margins, and Civil Defense approvals.
Marine & Harsh Climate Coatings
Prior to powder deposition, raw steel undergoes immersion pickling and iron phosphating. Finished with UV-stabilized polyester powder coating (60–80μm) or hot-dip galvanizing for coastal, humid, or outdoor use.
Optimized Container Logistics
Components are precision-bundled with structural steel strapping and anti-rub protective wraps. Shipments feature barcoded bundle packing lists matching the mechanical assembly schematics identically.
Engineering Deep Dive
Roll-Formed vs. Structural Cantilever Racking
Selecting the appropriate profile depends on capacity requirements, material properties, and impact exposure from forklifts.
| Evaluation Parameter | Roll-Formed Cantilever System | Hot-Rolled Structural Cantilever (H-Beam) |
|---|---|---|
| Primary Steel Grade | Cold-Rolled High Tensile Steel (Q235B) | Heavy Hot-Rolled Structural Steel (Q355B / ASTM A36) |
| Arm Load Range | 200 kg to 1,000 kg per arm (Uniform Load) | 1,000 kg to in excess of 5,000 kg per arm |
| Forklift Impact Tolerance | Moderate; suitable for guided VNA or careful handling | Exceptional; resistant to heavy side-loader strikes |
| Standard Column Heights | Up to 6,000 mm single section | Up to 12,000+ mm continuous structural profiles |
| Arm Connection Typology | Keyhole slots, wedge brackets, safety lock pins | High-tensile Grade 8.8 / 10.9 structural through-bolts |
| Optimal Application Scope | PVC tubing, light timber moldings, conduit, consumer goods | Solid steel bar, heavy tooling dies, car salvage, heavy structural beams |
Industry Whitepaper Report
Cantilever Racking Global Procurement Trends (2025–2030)
Strategic analysis of shifts across heavy warehousing, raw materials distribution, and smart logistics yards.
Automated Stacking Cranes (AS/RS)
Traditional manual forklift access is rapidly shifting to automated stacker crane integrations. Modern cantilever configurations now incorporate continuous optical guide brackets, precision arm deflection sensors, and top crane runways that allow AS/RS handling of 12-meter steel bars with millimeter accuracy.
Extreme Weather & Outdoor Galvanization
Rising indoor industrial rent is driving commodities into external logistics yards. Procurement trends show surging demand for roof-integrated (canopy) cantilever racking, hot-dip galvanized to ISO 1461 standards (≥85μm zinc thickness), providing 30+ years of rust protection against high salinity and sand abrasive climates.
Modular Decking Hybridization
Modern supply chains demand versatility. Racks must transition between storing 6-meter bundle pipes and short pallets dynamically. Drop-in wire mesh decks, galvanized steel panel trays, and drop-in saddles are now mandatory line items in major B2B global purchase orders.
Structural Innovation
Technological Trajectories in Cantilever Manufacturing
Key advancements transforming cold roll-forming and robotic welding across high-tier Chinese manufacturing hubs.
Robotic Laser Beveling & Punching
High-precision 3D fiber-laser cutting centers now execute joint cuts, pin slots, and bolt holes in one setup. This eliminates cumulative pitch error across 12-meter columns, guaranteeing square, perpendicular column-to-base alignment during on-site erection.
High-Yield Micro-Alloyed Steels
Replacing basic mild steel with micro-alloyed grades (such as Q355B/Q460) reduces deadweight while boosting load-bearing safety margins. Thinner web designs with engineered stiffeners save up to 14% on international sea freight tonnage while increasing deflection resistance.
Finite Element Analysis (FEA) Modeling
Using non-linear finite element structural simulation ensures precise calculations for dynamic braking loads, asymmetrical loading stresses, and seismic forces (P-Delta effects), delivering optimized arm tapering and gusset reinforcing designs.
Procurement Knowledge Base
Frequently Asked Questions for Project Directors & Buyers
Clear, engineering-backed answers addressing the most common technical, logistical, and commercial inquiries.
How do you calculate safe arm capacity for cantilever racking?
Arm capacity is always calculated based on an evenly distributed load (UDL). For example, if a 3,000 kg bundle of steel pipes rests across three cantilever arms, each arm must support a minimum of 1,000 kg. However, loading dynamics must account for deflection. Standard FEM 10.2.09 criteria dictate an arm deflection limit not exceeding L/150 to L/200 under full load, preventing stored materials from sliding forward.
What is the functional difference between single-sided and double-sided cantilever systems?
Single-sided cantilever racks are designed to anchor flat against warehouse perimeter walls, with arms projecting into the working aisle from one face. Double-sided racks feature a central vertical column with projecting arms on both front and rear faces. Double-sided arrangements are inherently more structurally stable because loads counter-balance each other, providing maximum storage density when placed along central aisle runs.
Can cantilever racking be installed outdoors, and how is it weather-protected?
Yes. Outdoor installations require hot-dip galvanization in accordance with EN ISO 1461, providing minimum coating thicknesses of 85 microns to resist moisture, acid rain, and road salts. Furthermore, outdoor cantilever racks can be engineered as "roofed canopy structures," where the cantilever columns extend upward to support roof rafters, wind braces, and rainwater gutters.
What key parameters are required to receive an accurate CAD layout and price quotation?
To produce an engineered proposal, our structural team requires: (1) Storage material specifications (length, depth, diameter, weight per piece/bundle); (2) Desired storage height and warehouse clear ceiling height under beams; (3) Type of handling equipment (counterbalance forklift, reach truck, side-loader, or overhead crane); (4) Floor slab specifications (concrete thickness, compressive strength, rebar mesh layout); and (5) Regional seismic zone accelerations.
What are the lead times for manufacturing and export shipping from China?
Standard fabrication lead time for full container orders (1 to 5 FCLs) is typically 15 to 25 days following engineering drawing sign-off. Shipping transit times vary by destination port: 12–18 days to Middle East GCC ports (Jebel Ali, Dammam, Jeddah), 22–30 days to Mediterranean and European base ports, and 16–24 days to the US West Coast.
